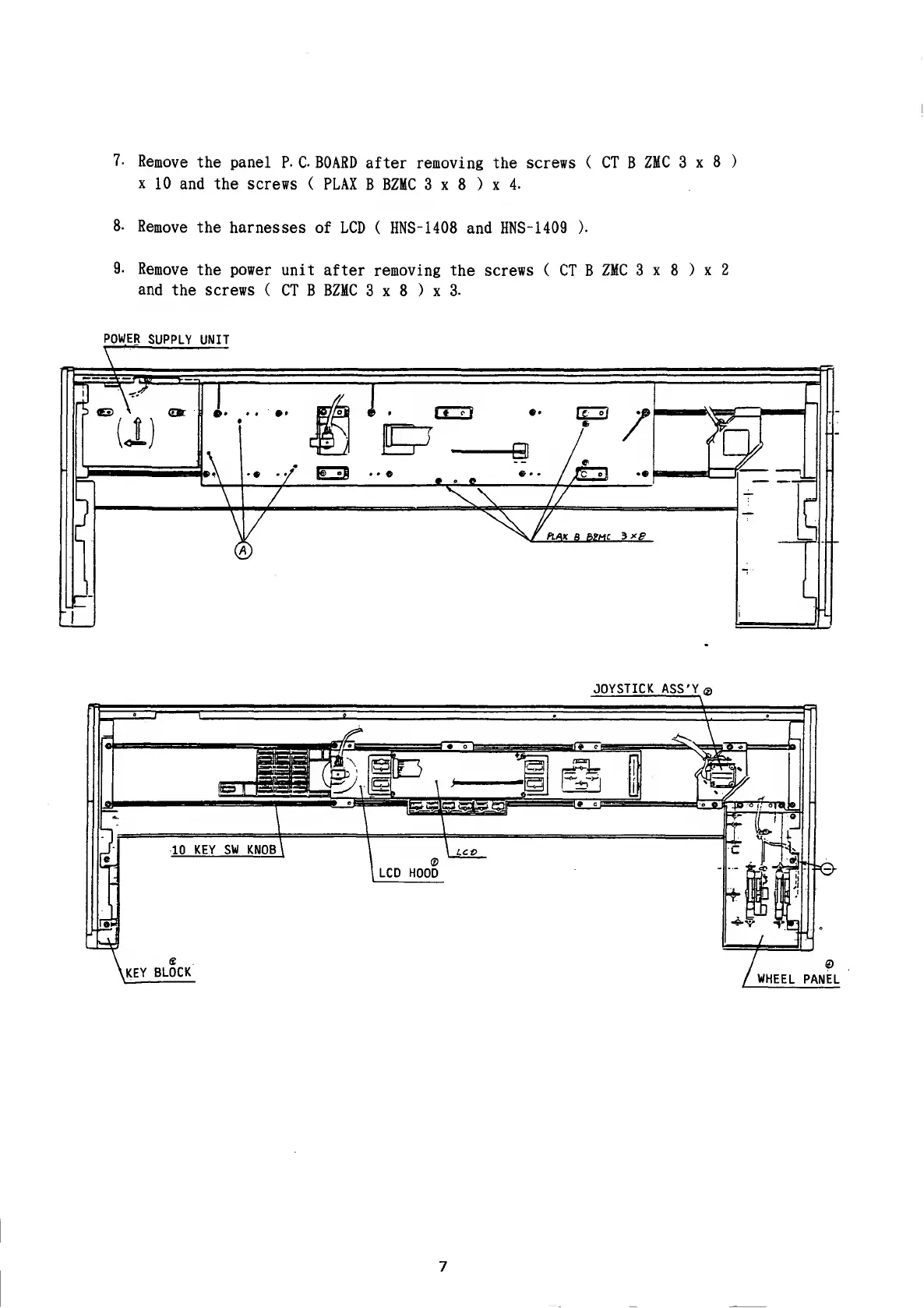

7.
Remove
the panel
P. C BOARD
after removing the
screws
(
CT
B
ZMC
3
x 8
)
x
10 and the screws
( PLAX
B BZMC 3 x 8
)
x
4.
8.
Remove
the harnesses
of LCD
(
HNS- 1408 and HNS- 1409
).
9-
Remove
the
power
unit
after removing the screws
( CT B
ZMC 3
x
8 )
x 2
and
the screws
( CT B BZMC
3 x 8 ) x
3.
POWER
SUPPLY UNIT
^J.Vf
•<<-•
U
at
FLAK
B
RtMC 3
xg
JOYSTICK ASS'Y
a
rst
10 KEY SW KNOB
e
IKEY
BLOCK
-II
5a
I}
LCD HOOD
r
!
-=e-
©
WHEEL
PANEL
