COLD CONTACTS

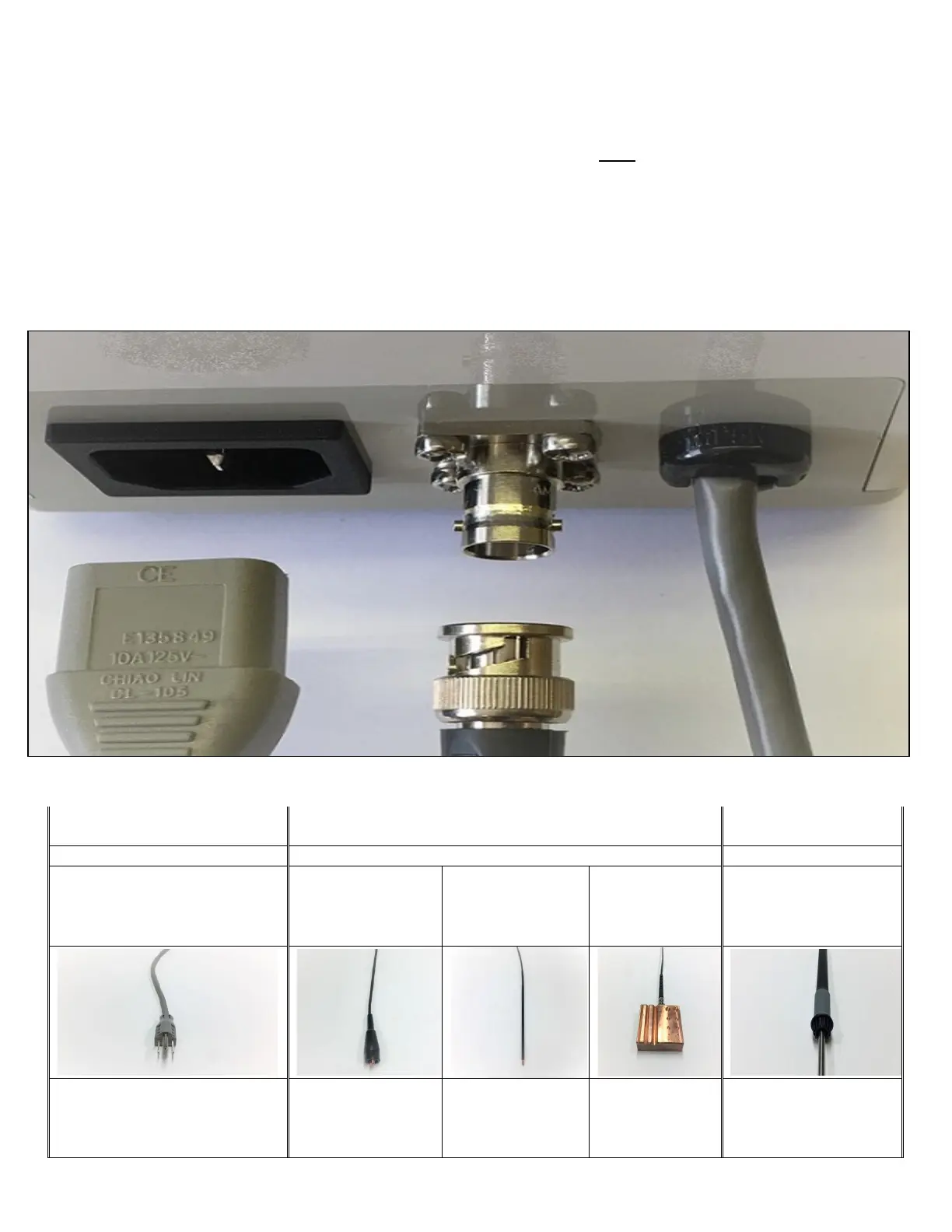

The TE-3000-HD contains three choices for the “cold contact” part of the circuit. One cold
circuit must be connected with the BNC connector to the Alloy Sorter before taking a test. Be
sure the cold circuit makes solid contact with test metal first, then make contact with a hot
probe.
• The Alligator Clip: Hands-free contact with the metal surface of small and large parts.
Clipping it on ensures good electrical connection.
• The Heavy Copper Block: Choice for non-clamp or delicate plated surfaces. It can also
hold cylindrical bearings, spherical bearings, and small parts. The heavyweight of the
block also allows it sit securely on a workbench. Use the 6 foot male to male BNC to
connect the TEAS.
• The Wand: Requires two hands. Is very fast to use. Leave test metal in place and move
Wand and Hot Probe to part. Wand contacts metal first then thermal probe.
Power Cord
BNC Connection
Cold Circuit
Hard Wired
Hot Circuit
Always Use
Choose 1 of 3 contacts
Always Use
Power
The Alligator
Clamp
The Wand
The Block
(use with 6’
extension
cable)
Hot Probe
Plug into 120V
Power outlet
To “bite” test
metal
To make brief
contact with test
metal
Set test metal
on top of
copper block
The Hot and the cold
make contact with
test metal at the
same time.
