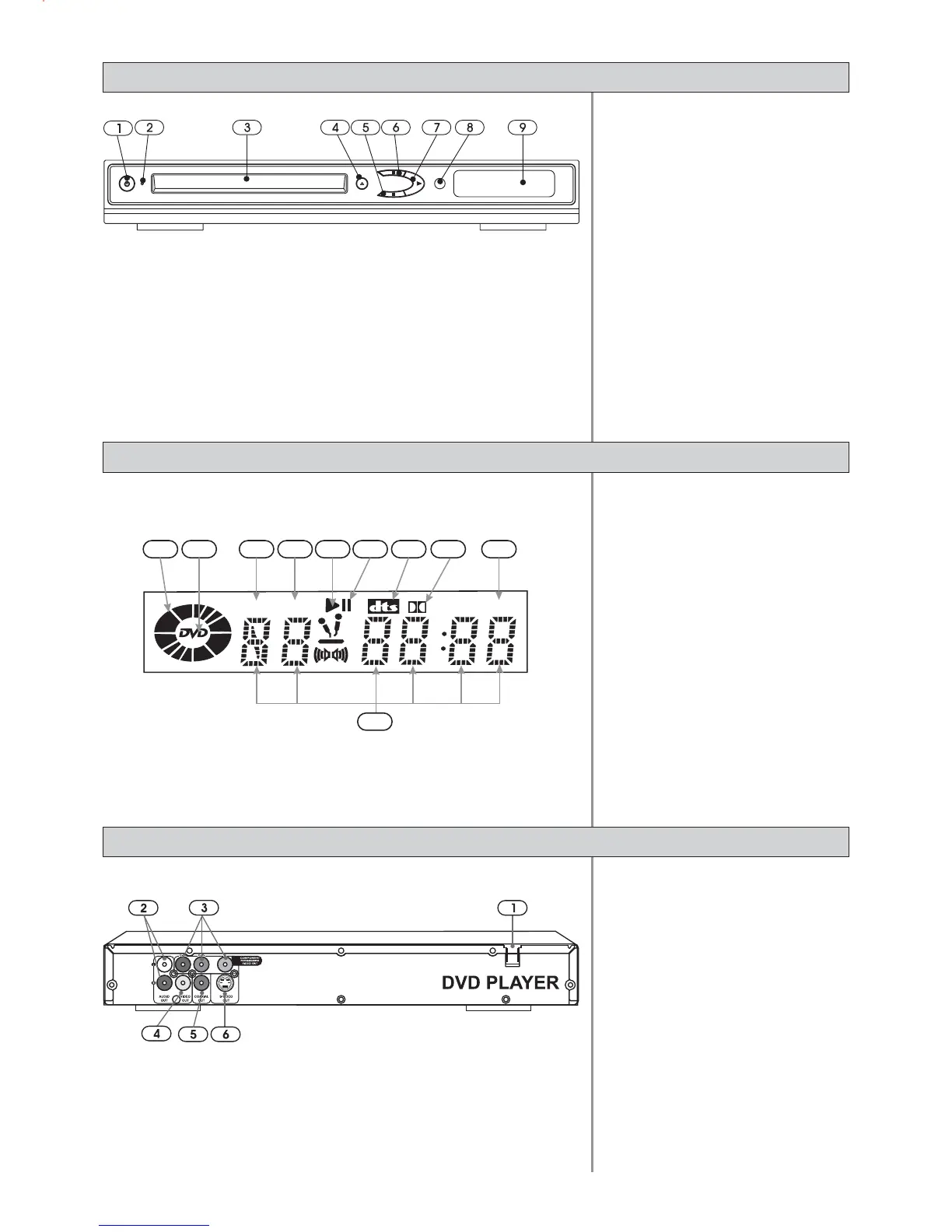

FRONT PANEL
REAR PANEL
1. Disc Rotation Speed Indicator
2. DVD Disc Indicator
3. PBC Status Indicator (only for
VCD compatible model)
4. Disc Formats (CD, VCD & SVCD)
Indicator (only for VCD/SVCD
compatible model)
5. Disc Play Status
Lights up during Playback
6. Pause Indicator
7. DTS Detect Indicator
8. Dolby Digital Detect Indicator
9. MP3 Playback Indicator
10.Alphanumeric Display
DISPLAY
PBC
SVCD
MP3
1
2
7 8
9
5
43
6
10
1. Power on/off
2. LED Indicator
Standby Mode - RED Light
OFF Mode - No Light
3. Disc loading tray
4. Opens/closes disc loading tray
5. Stops playing
6. Pauses Playing
7. Starts playing
8. Infra-Red receiver window
9. VFD Display
1. Power Cord
2. Audio Output - Left and Right
3. Component Video & Progressive
Scan Outputs
4. Video Output
5. Coaxial Output
6. S-Video Output
