Alexander 12’X14’ assembly manual
X4
X4
page 18
Parts Required:
1#
x24
U6 x4
U1 x4
U4 x4
U3 x4
②
①
①
②
②
U3
U4
U6
U6
U6
U6
U1
U1
U
1
U
1
1#
1#

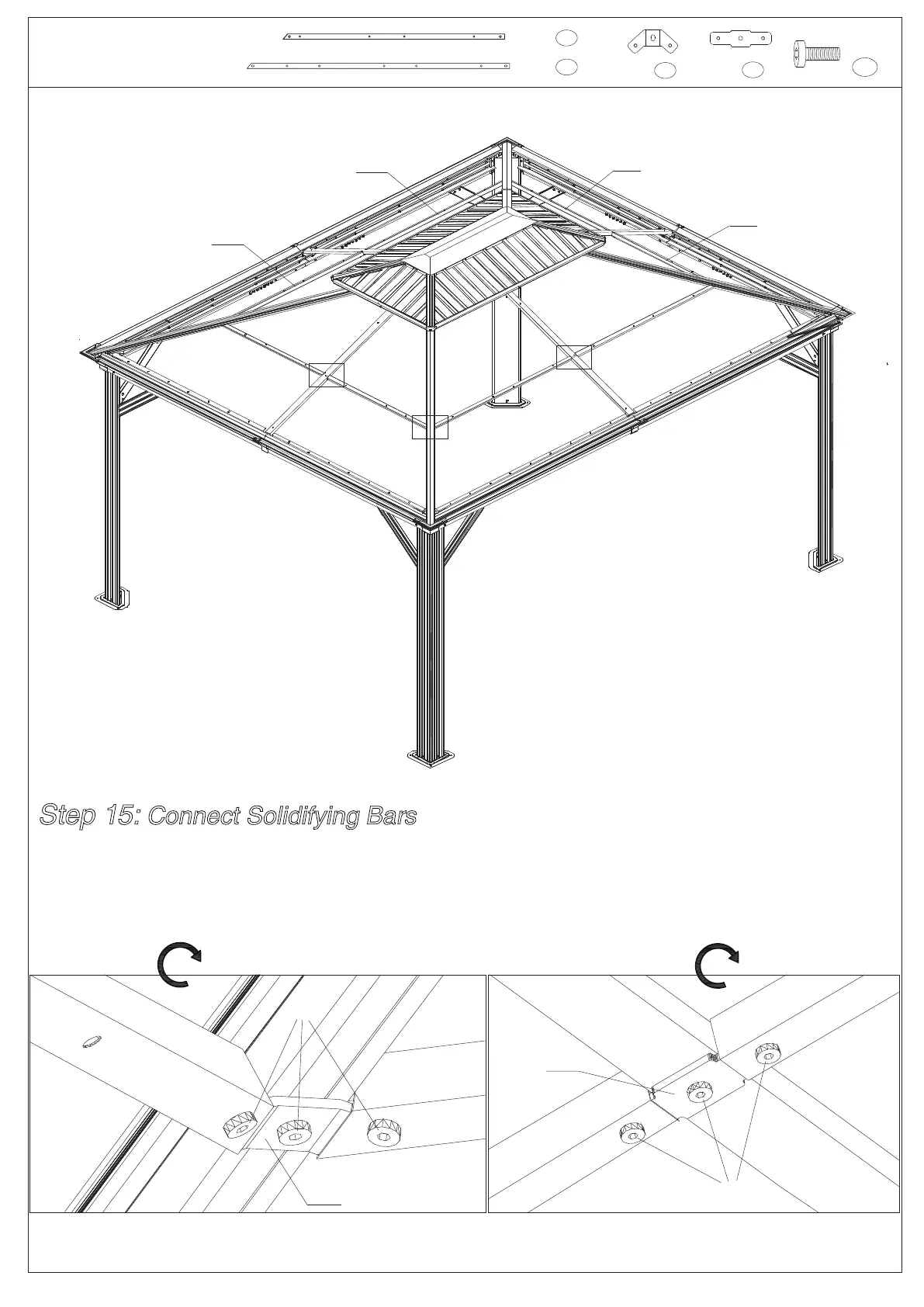

Step 15: Connect Solidifying Bars
Attach Solidifying Bars ( Part U1, U6) to Roof Bar or
Corner Roof Bar using Iron Angle (Part U3, U4) and
screws 1# as shown in diagram.
Attention:
If the holes on the Solidifying Bar (Part U1, U6)
and the hole of the roof panel cannot be aligned,
please adjust or loosen screw 1# until the screws
of the roof panel are in place.
To Next Page
