Kozyard Apollo - Roof Assembly; Step 9: Assemble Corner Roof Bars

page 13
Parts Required:
M2 x4
M1 x4
#12 x12
#1 x12
12’x14’ assembly manual
Tip:
Tip:

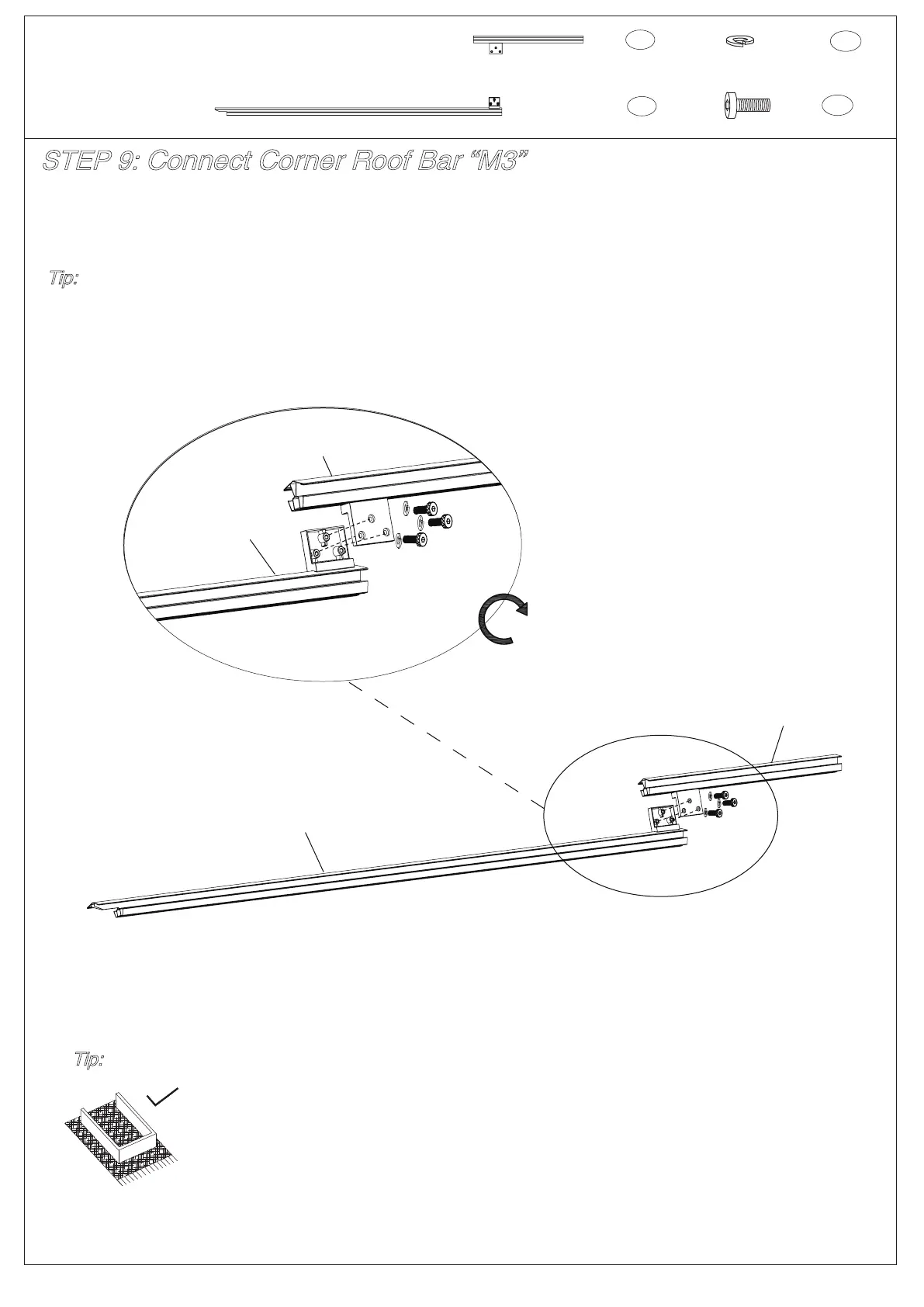

STEP 9: Connect Corner Roof Bar “M3”
Connect the Short Corner Roof Bar (Part M1) with the Long Corner Roof Bar (Part M2) using screws #1
and washer #12.
The combination will be called “Part M3” in following steps.
M2
M3=M1+M2
#1
#12
#1
#12
M1
M1
M2
X4
