page 7
Caesar 12’x14’ assembly manual
Parts Required:
1#
x32
J5
J5
J6
J6
J6
J6
J5
J5
J5
J6
Diagonal 1 = Diagonal 2
J5 x4
J6 x4
1#
1#
1#
Diagonal 1
Diagonal 2

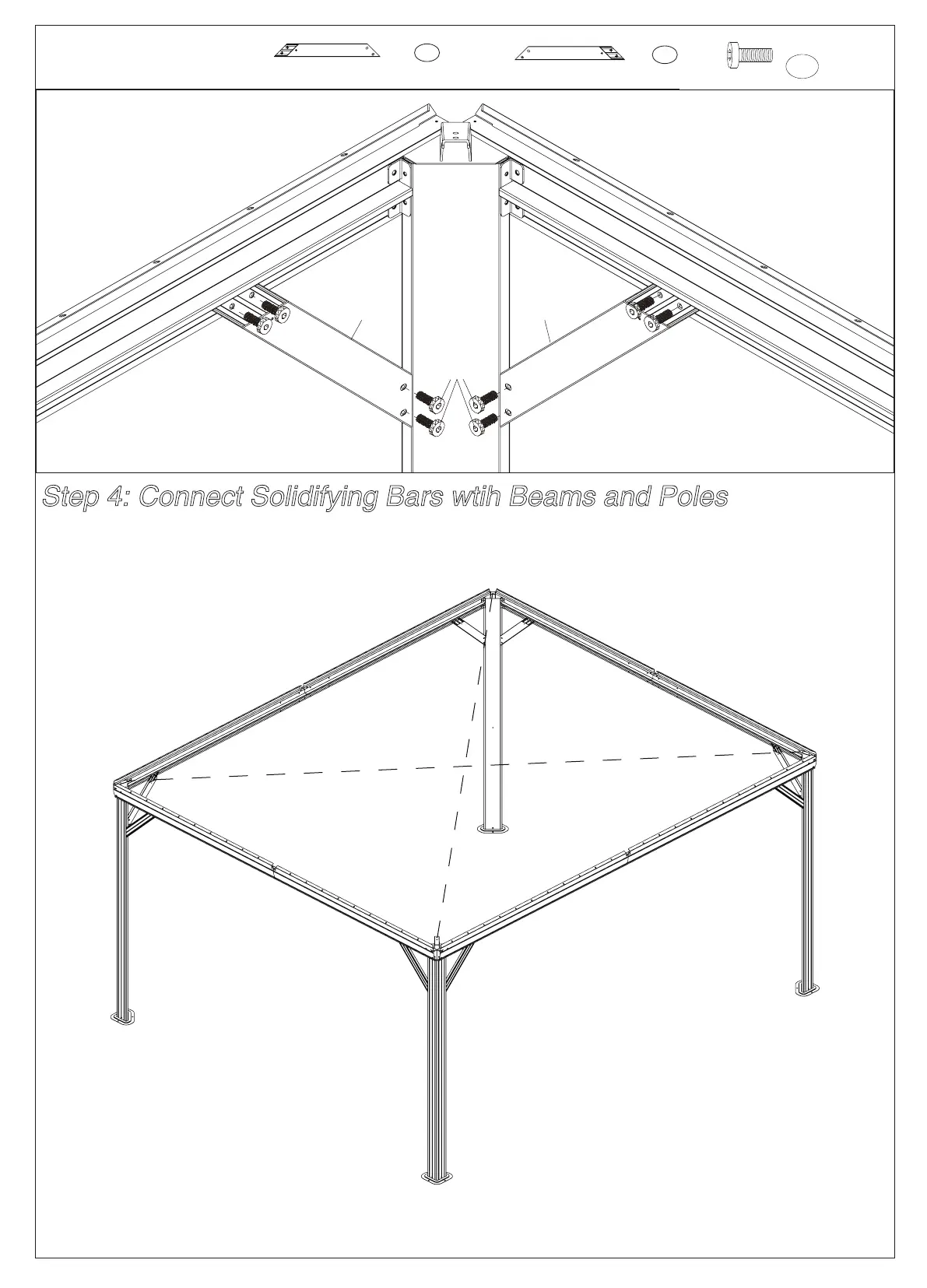

Step 4: Connect Solidifying Bars wtih Beams and Poles
Affix the frame with Corner Solidifying Bars (Parts J5, J6) using screws 1# as shown
in the diagram.
Tip:
Measure (DIAGONALLY) from posts to posts
to assure alignment so all materials fit as
planned.
