Cable tracker
ENG
FUNCTIONS
INTRODUCTION
OPERATING INSTRUCTIONS
Test continuity:
1) Judge continuity of the cables or wires.
2) Track the cables or wires, and diagnose the break point.
3) Receiver the tone signal on the cables or wires (telephone line)
4) Identify the state in the working telephone line (clear, ring, busy)
5) Send a single solid tone or a dual alternating tone to the object cables
or wires.
1) Use the sender (switch to “CONT”). Connect the test leads to the subject
pair. Use “CONT” position. The bright red of “CONT” indication indicates the
continuity (line resistance not exceeding 10kΩ)

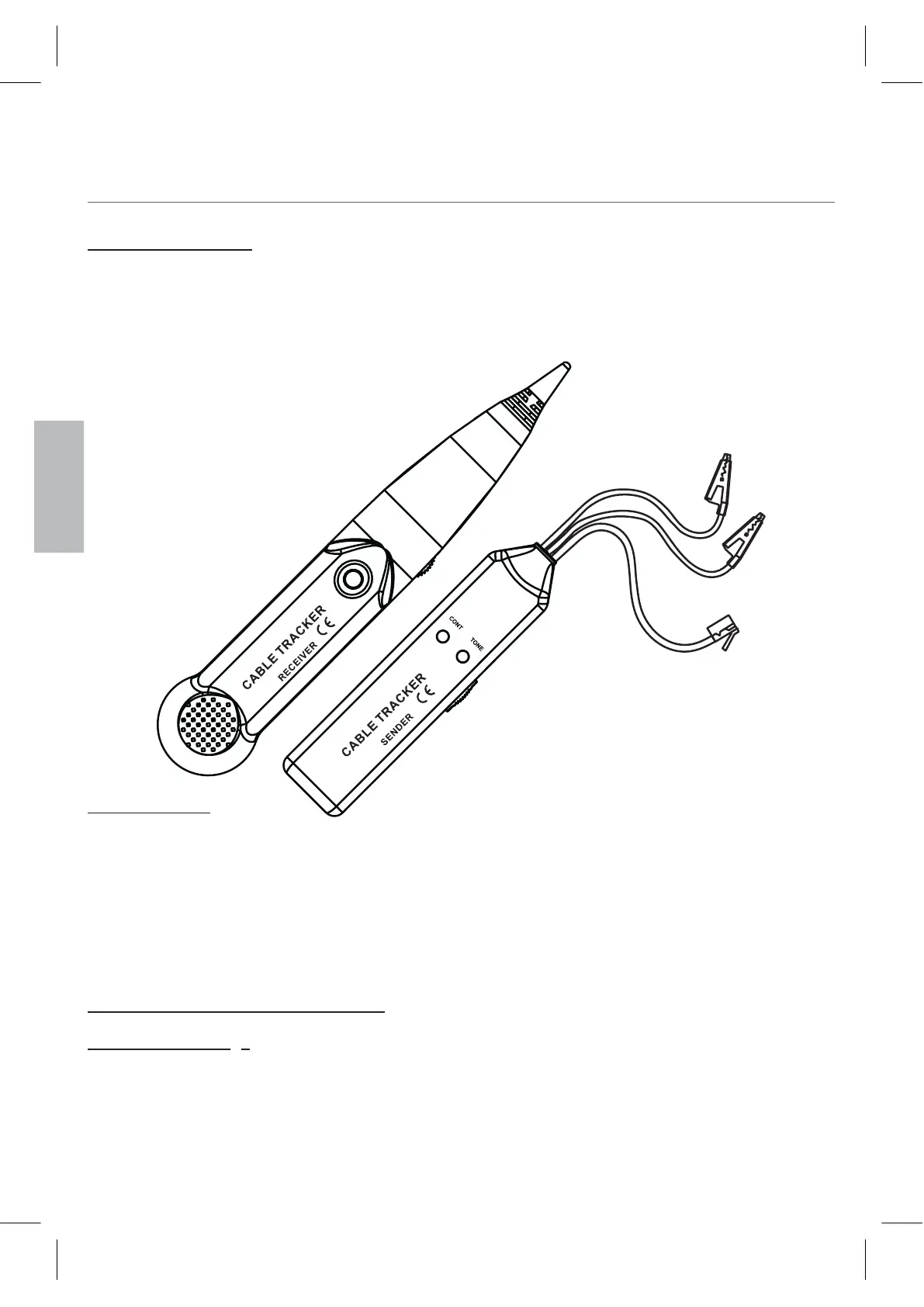

The cable tracker is designed to identify and trace wires or cables without
dam- aging the insulation. For telephone line, it can identify some state in the
line, and more conveniencie to install, debug, mantain telephone line. There
are a sender and a receiver included in the cable tracker.
