Kramer 102xl User Manual

102xl - Overview
5
3.1 Defining the 102xl 2-Channel Audio Mixer
This section defines the 102xl.

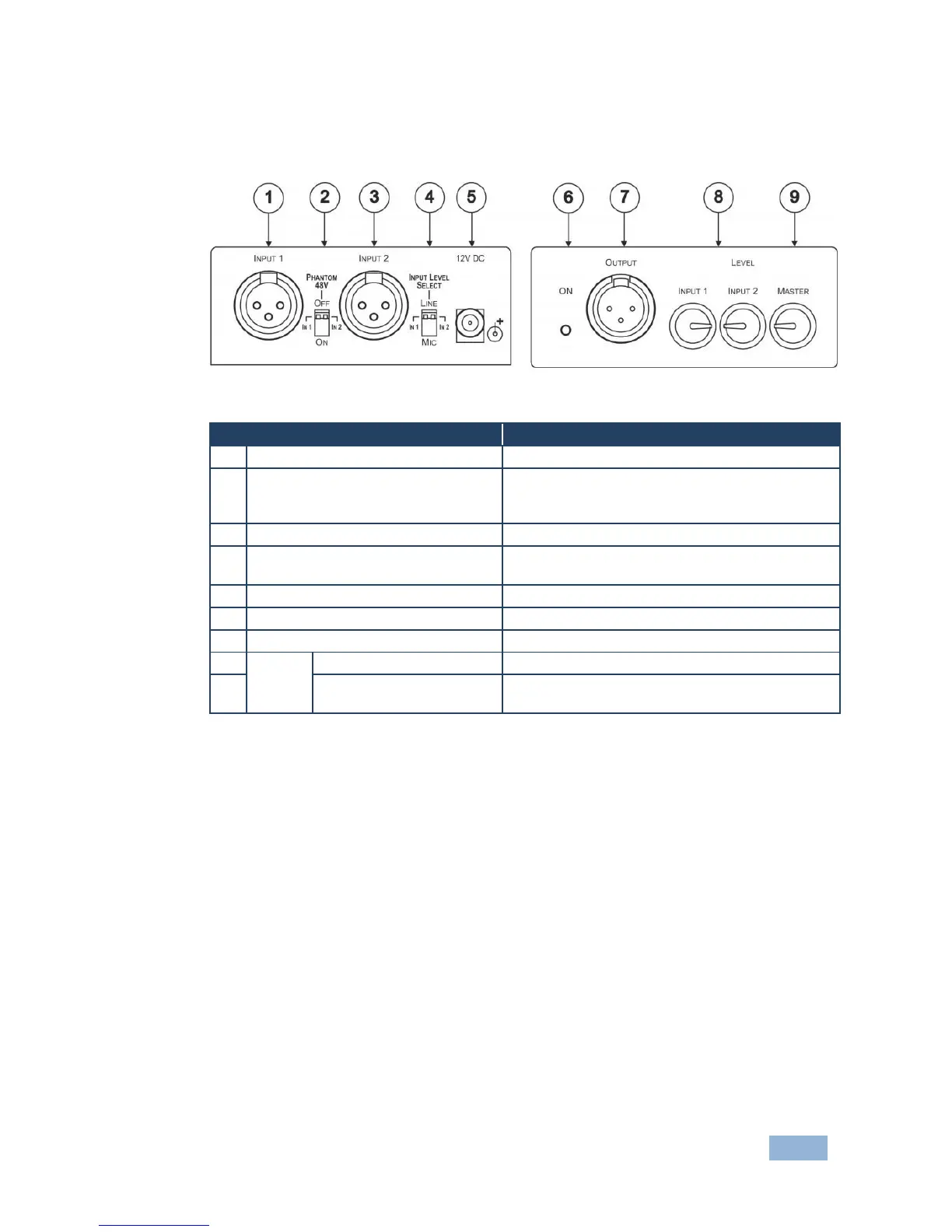

Figure 1: 102xl 2-Channel Audio Mixer
#
Feature
Function
1
INPUT 1 XLR Female Connector
Connects to the audio source 1
2
PHANTOM 48V (OFF/ON) Switches
Move to ON to select a condenser microphone;
move to OFF to select dynamic microphone (1 and
2)
3
INPUT 2 XLR Female Connector
Connects to the audio source 2
4
INPUT LEVEL SELECT (LINE/MIC)
Switches
Move to MIC to select microphone level input;
move to LINE to select line level input (1 and 2)
5
12V DC
+12V DC connector for powering the unit
6
ON LED
Lights when the unit is powered
7
OUTPUT XLR Male Connector
Connects to the audio acceptor
8
LEVEL
INPUT Knobs
Adjust the input levels of each channel (1 and 2)
9
MASTER Knob
Adjusts the combined signals from both inputs
mixed to the output

Kramer 102xl Specifications

General

Brand	Kramer
Model	102xl
Category	Music Mixer
Language	English
