Always switch off the power to each device before connecting it to
your PT-101H2. After connecting your PT-101H2, connect its power
and then switch on the power to each device.
To connect the PT-101H2 as illustrated in the example in Figure 2:
1. Connect an HDMI source (for example, a 4K graphics source - PC) to the
INPUT HDMI connector.
2. Connect an OUTPUT HDMI connector to the HDMI acceptor (for example, a
4K display - smart TV).
3. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity, (not illustrated in Figure 2).

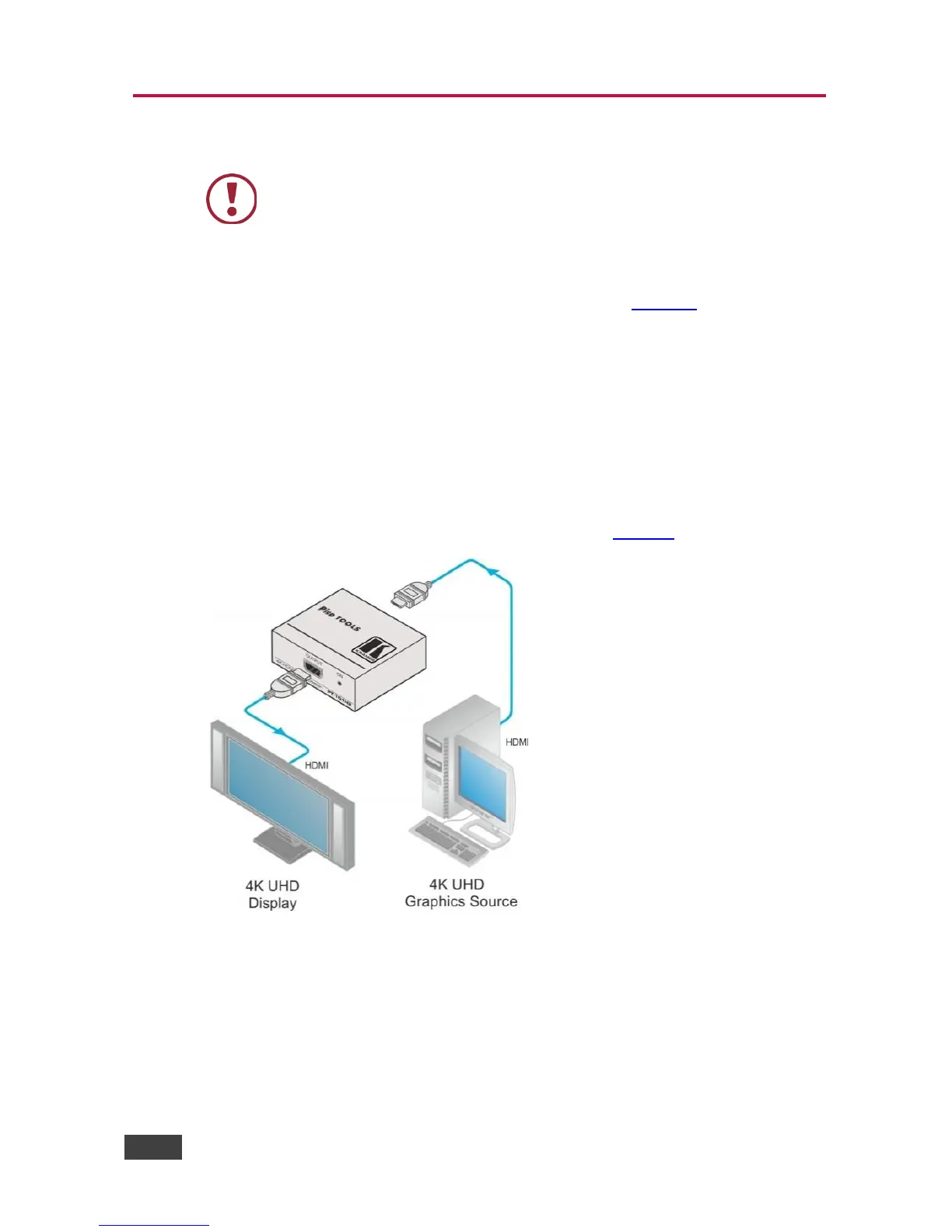

Figure 2: Connecting the PT-101H2 HDMI Repeater
