PT-101UHD - Defining the PT-101UHD HDMI Repeater
5
5
4 Defining the PT-101UHD HDMI Repeater

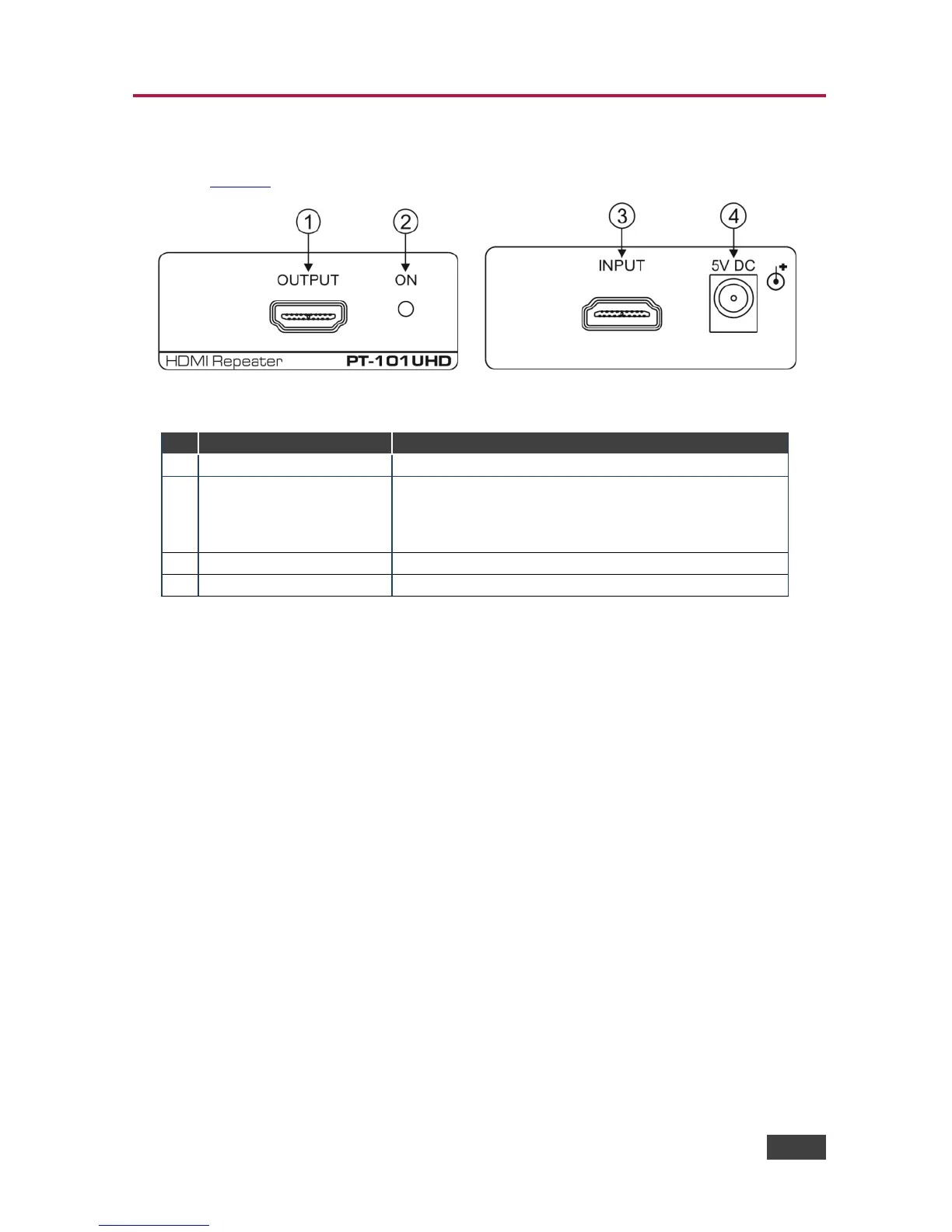

Figure 1 defines the front and rear panels of the PT-101UHD HDMI Repeater.
Figure 1: PT-101UHD Front and Rear Panel
#
Feature
Function
1
OUTPUT HDMI Connector
Connect to the HDMI acceptor, (for example, a smart TV)
2
ON LED
Lights blue when power is connected.
Lights red when only the HDMI input signal is present.
Lights purple when the power and HDMI signal are
connected
3
INPUT HDMI Connector
Connect to the HDMI source, (for example, a PC)
4
5V DC Connector
Connect to the supplied power adapter
