Always switch off the power to each device before connecting it to
your PT-101UHD. After connecting your PT-101UHD, connect its
power and then switch on the power to each device.

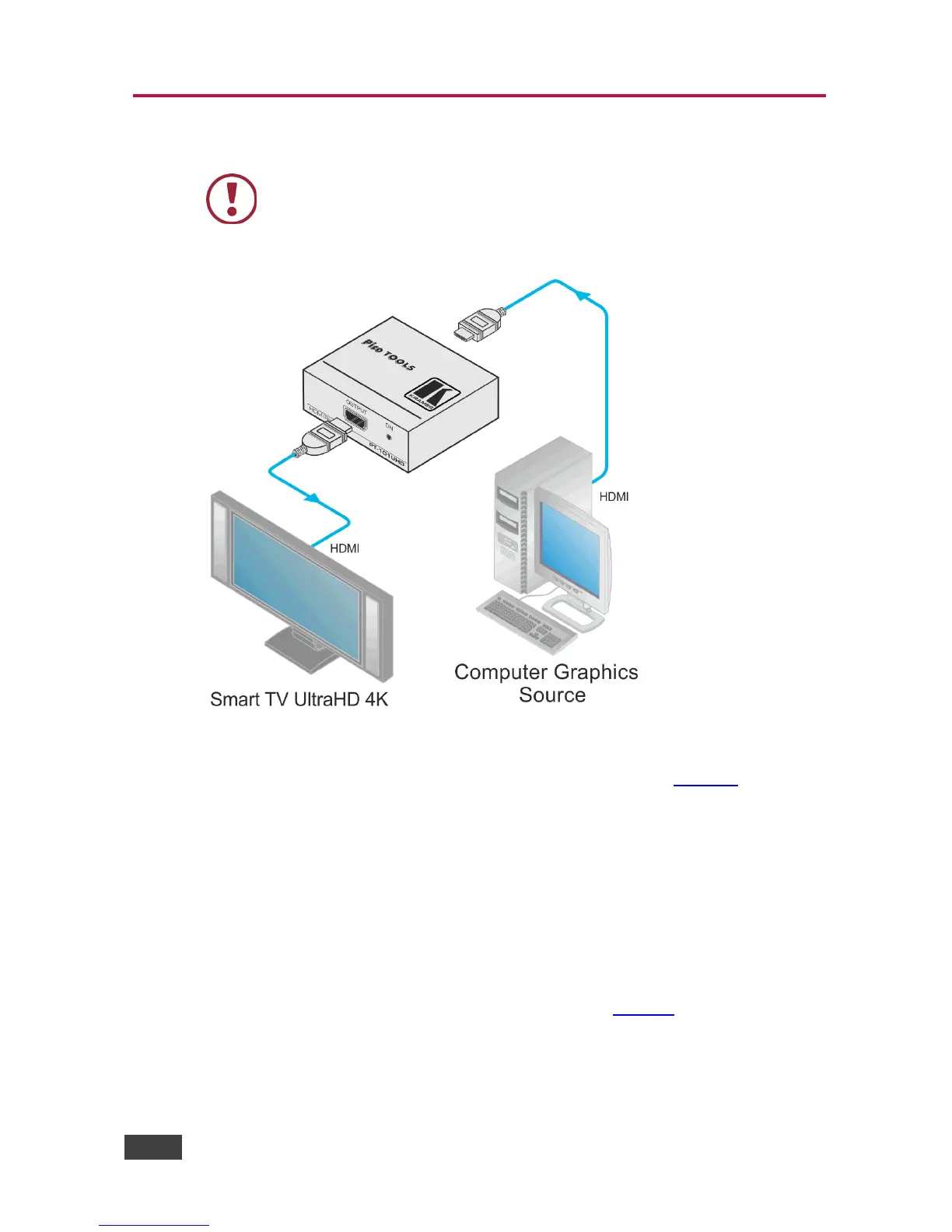

Figure 2: Connecting the PT-101UHD HDMI Repeater
To connect the PT-101UHD as illustrated in the example in Figure 2:
1. Connect the HDMI source (for example, a PC) to the INPUT HDMI
connector.
2. Connect the OUTPUT HDMI connector to the HDMI acceptor (for example,
a smart TV).
3. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity, (not illustrated in Figure 2).
