Your PT-1SPDIF / PT-2SPDIF
4
4.1 Your PT-1SPDIF Digital Audio Converter

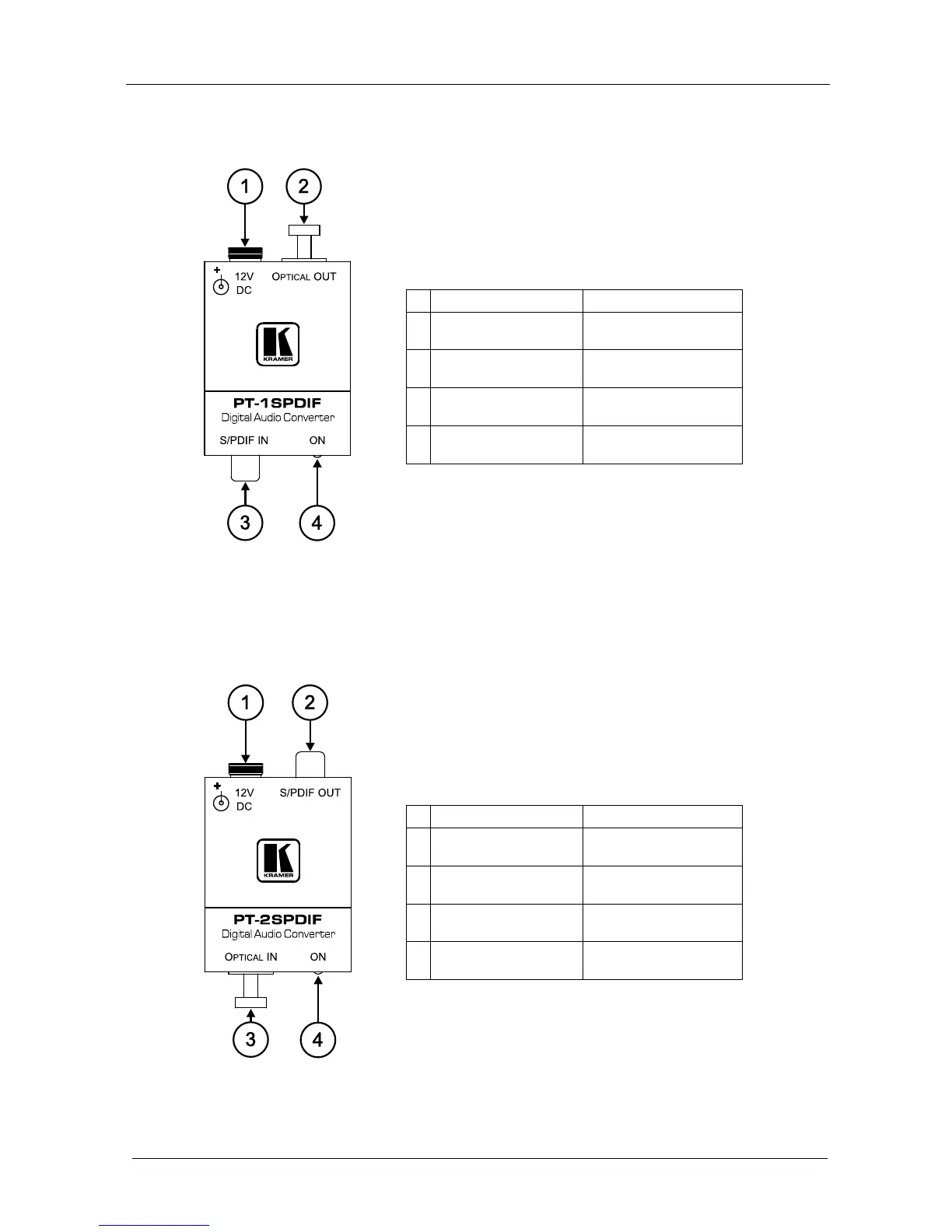

Figure 1 and Table 1 define the PT-1SPDIF Digital Audio Converter:
Figure 1: PT-1SPDIF
Table 1: PT-1SPDIF Features
# Feature Function
1 12V DC +12V DC connector for
powering the unit
2 OPTICAL TosLink®
OUT Connector
Connect to the digital
audio acceptor
3 S/PDIF IN (coaxial)
RCA Connector
Connect to the digital
audio source
4 ON LED Illuminates when
receiving power
4.2 Your PT-2SPDIF Digital Audio Converter
Figure 2 and Table 2 define the PT-2SPDIF Digital Audio Converter:
Figure 2: PT-2SPDIF
Table 2: PT-2SPDIF Features
# Feature Function
1 12V DC +12V DC connector for
powering the unit
2 S/PDIF OUT (coaxial)
RCA Connector
Connect to the digital
audio acceptor
3 OPTICAL TosLink®
IN Connector
Connect to the digital
audio source
4 ON LED Illuminates when
receiving power
