5 Defining the PT-572HDCP+ DVI Line
Receiver
The Kramer Pico TOOLS PT-572HDCP+ DVI Line Receiver receives an encoded
signal over a CAT 5 cable transmitted from the PT-571HDCP, decodes it, and
converts it to a DVI output.
The PT-572HDCP+ has:
 A DVI output connector
 An RJ-45 CAT 5 input connector
 One power status LED

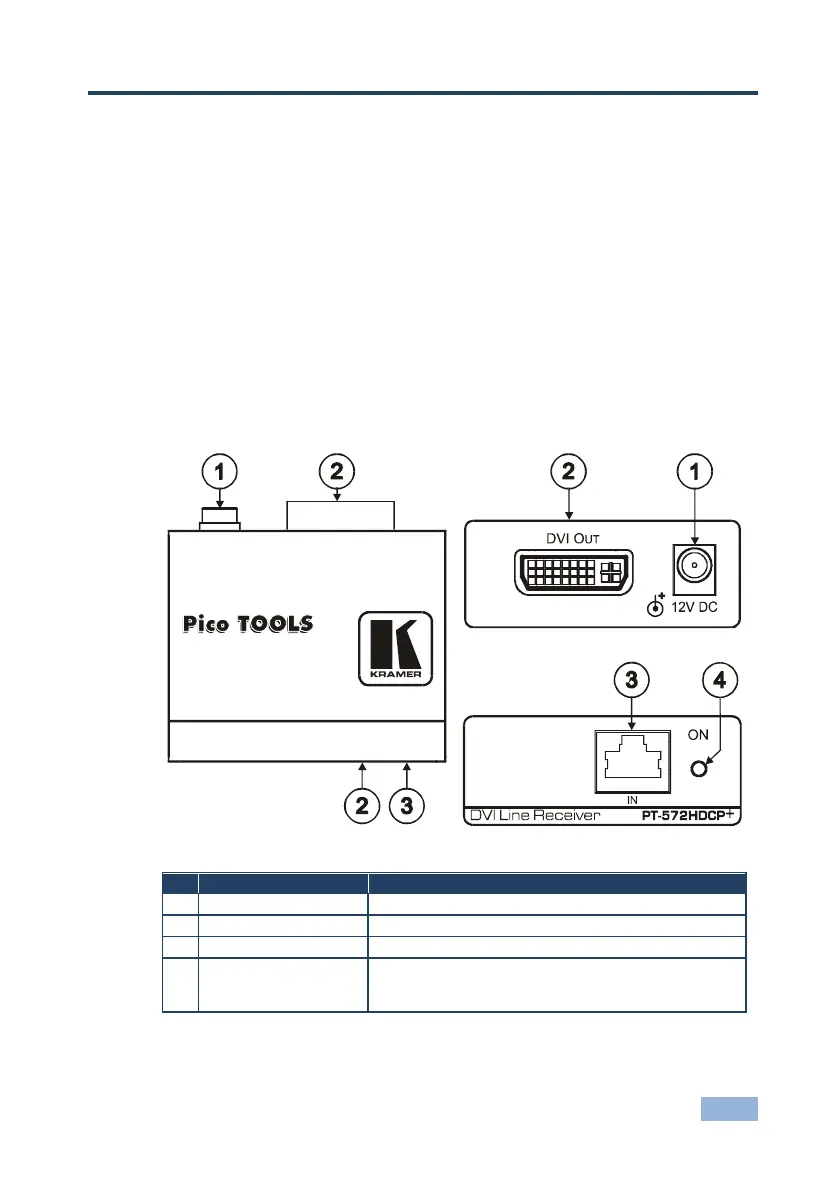

Figure 2: PT-572HDCP+ DVI Line Receiver
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
DVI OUT Connector
Connect to the DVI acceptor
3
IN RJ-45 Connector
Connect to the OUT RJ-45 connector on the PT-571HDCP
4
ON LED
Lights red when receiving power only, orange when output
and power are attached, and yellow when both an active
input and output are attached
