VM-218DTxr, VM-218DT – Defining VM-218DTxr HDMI/HDBT Switcher DA
6

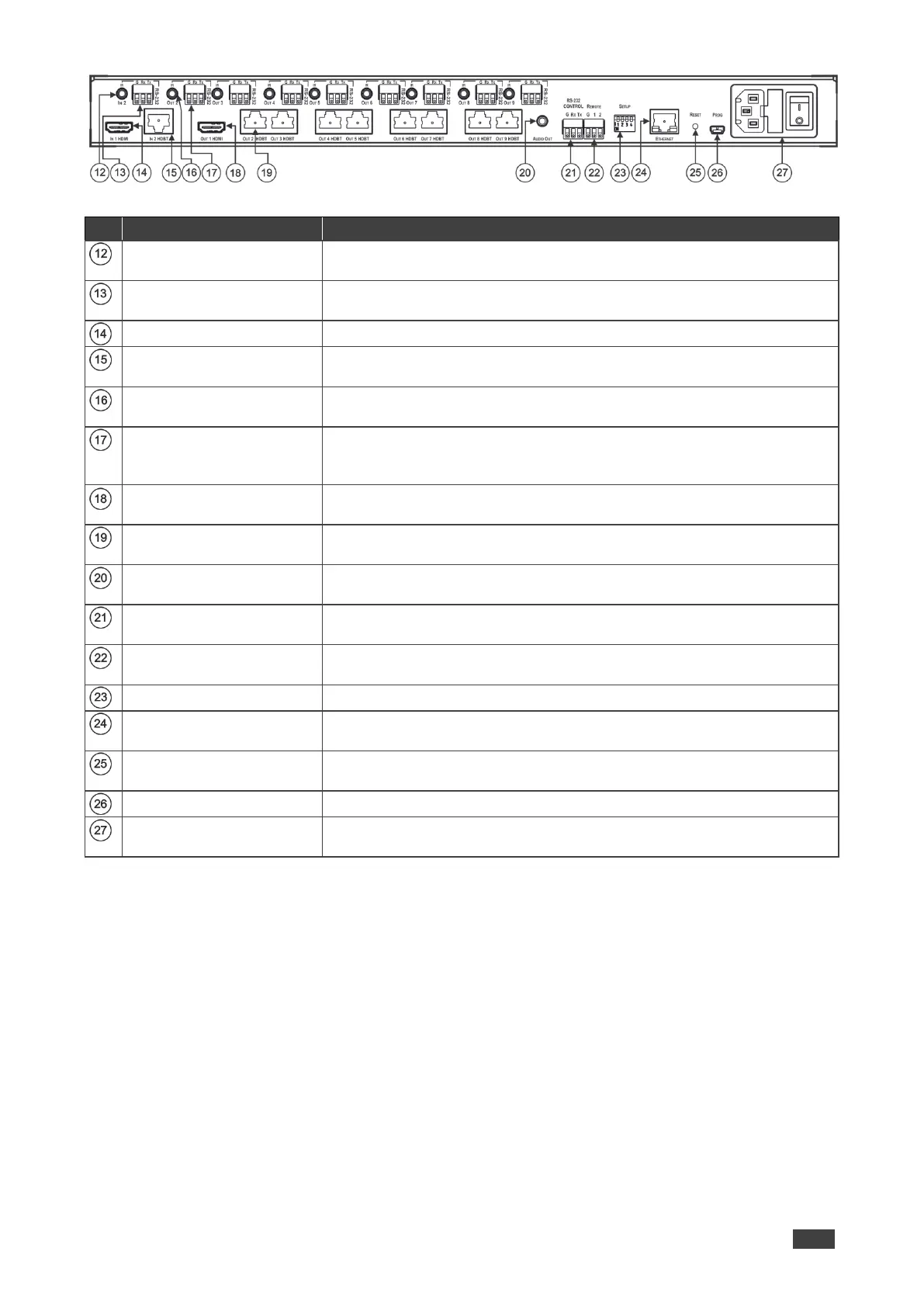

Figure 2: VM-218DTxr HDMI/HDBT Switcher DA Rear Panel
#
Feature
Function
IN 2 IR on a 3.5 Mini Jack
Connect to an IR emitter/sensor cable for IR link extension via IN 2
HDBT.
IN 2 RS-232 (G, Rx, Tx)
Terminal Block Connector
Connect to a serial controller for RS-232 link extension via IN 2 HDBT.
IN 1 HDMI Connector
Connect to an HDMI source.
IN 2 HDBT on RJ-45
Connectors
Connect to an HDBT transmitter (for example: TP-780Txr for
VM-218DTxr and TP-580T for VM-218DT).
IR on 3.5 Mini Jacks (for
OUT 2 to 9)
Connect to remote IR emitter/sensor cables to IR control the devices that
are connected to the HDBT acceptors.
RS-232 OUT (G, Rx, Tx)
Terminal Block Connectors
(2 to 9)
Connect to serially control the devices connected to the HDBT acceptors.
OUT 1 HDMI Connector
Connect to the HDMI input of an additional DA or connect to a local
monitor.
OUT HDBT RJ-45
Connectors (2 to 9)
Connect to HDBT receivers (for example: TP-780Rxr for VM-218DTxr
and TP-580R for VM-218DT).
AUDIO OUT 3.5mm Mini
Jack
Connect to an analog audio acceptor.
RS-232 CONTROL 3-pin
Terminal Block
Connect to the serial controller to control the VM-218DTxr.
REMOTE 3-pin Terminal
Block
For future use.
SETUP DIP-switches
Use to set the device behavior.
ETHERNET RJ-45
Connector
Connect to LAN for Ethernet extension via IN and OUT HDBT ports and
remote IP control of the VM-218DTxr.
RESET Button
Press and hold while powering on the device to reset to factory default
parameters.
PROG Mini USB Connector
Connect to a PC to perform firmware upgrades.
Mains Power Connector,
Fuse and Switch
Connect to the mains supply.
