Your VM-22HD 2 x 1:2 HD/SD-SDI DA
4
4 Your VM-22HD 2 x 1:2 HD/SD-SDI DA

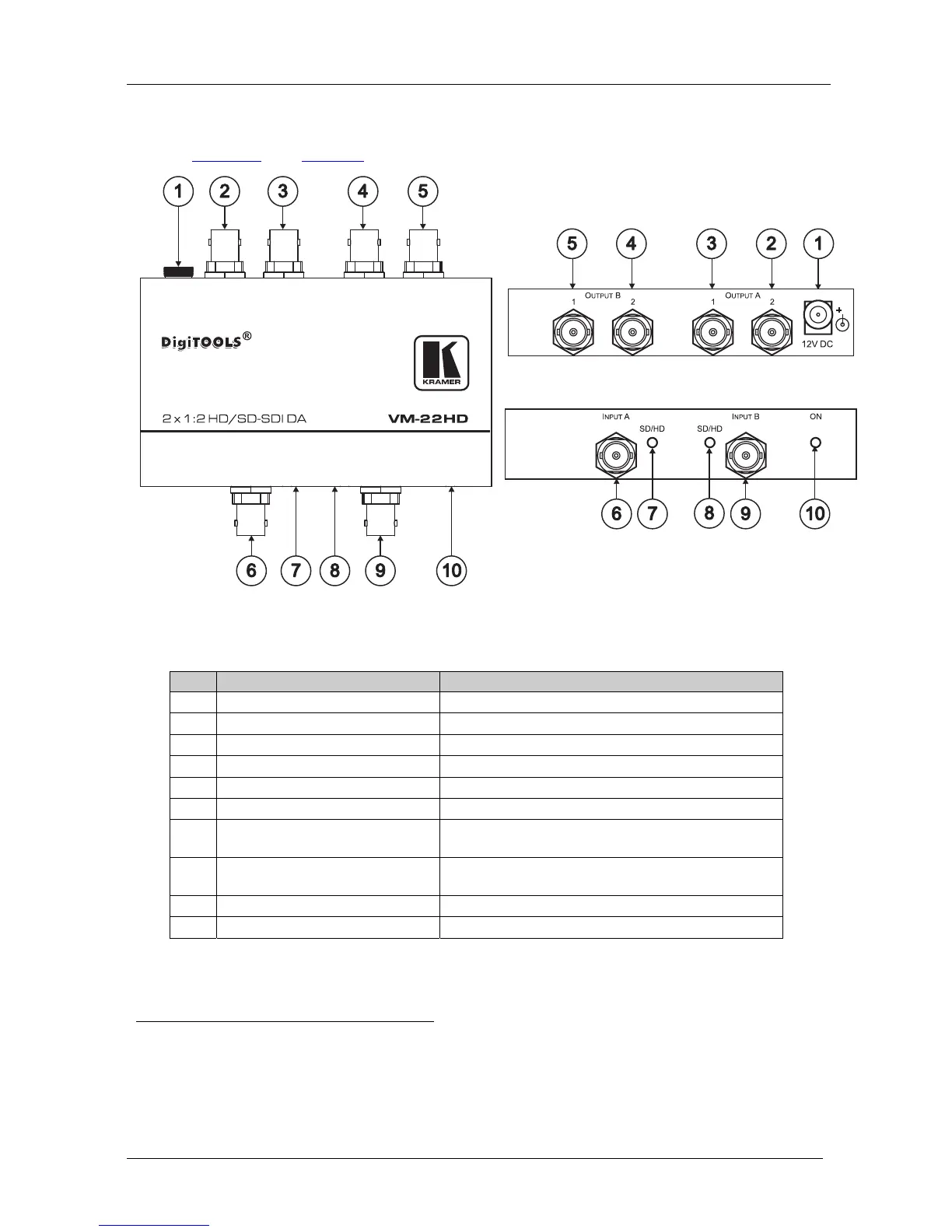

Figure 1 and Table 1 define the unit.
Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA
Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions
# Feature Function
1 12V DC Connector +12V DC for powering the unit
2 OUTPUT A 2 BNC connector Connects to the SDI A acceptor 2
3 OUTPUT A 1 BNC connector Connects to the SDI A acceptor 1
4 OUTPUT B 2 BNC connector Connects to the SDI B acceptor 2
5 OUTPUT B 1 BNC connector Connects to the SDI B acceptor 1
6 INPUT A BNC connector Connects to the SDI A source
7 SD
1
/HD
2
INPUT A LED Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input A
8 SD/HD INPUT B LED Illuminates blue for the HD-SDI signal, green for the
SD-SDI signal on input B
9 INPUT B BNC connector Connects to the SDI B source
10 ON LED Illuminates green when receiving power
1 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)
lines of interlaced video; as well as 480 and 576 line progressive scan video format
2 High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080 lines of either
progressive or interlaced video
