Kramer VM-22HD

Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
5
5 Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
This section describes how to connect the VM-22HD in single link mode
(see section 5.1
) and in dual link mode (see section 5.2).
5.1 Connecting the VM-22HD in the Single Link Mode
To
connect the VM-22HD, as shown in the example in Figure 2
, do the
following
1
:
1. Connect one or two HD-SDI/SD-SDI video sources (for example, cameras)
to the INPUT A and/or B BNC connectors.
2. Connect up to
2
four video OUTPUT BNC connectors to the appropriate
HD-SDI/SD-SDI video acceptors (for example, displays).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2
).
The VM-22HD operates as soon as it is connected and powered on.

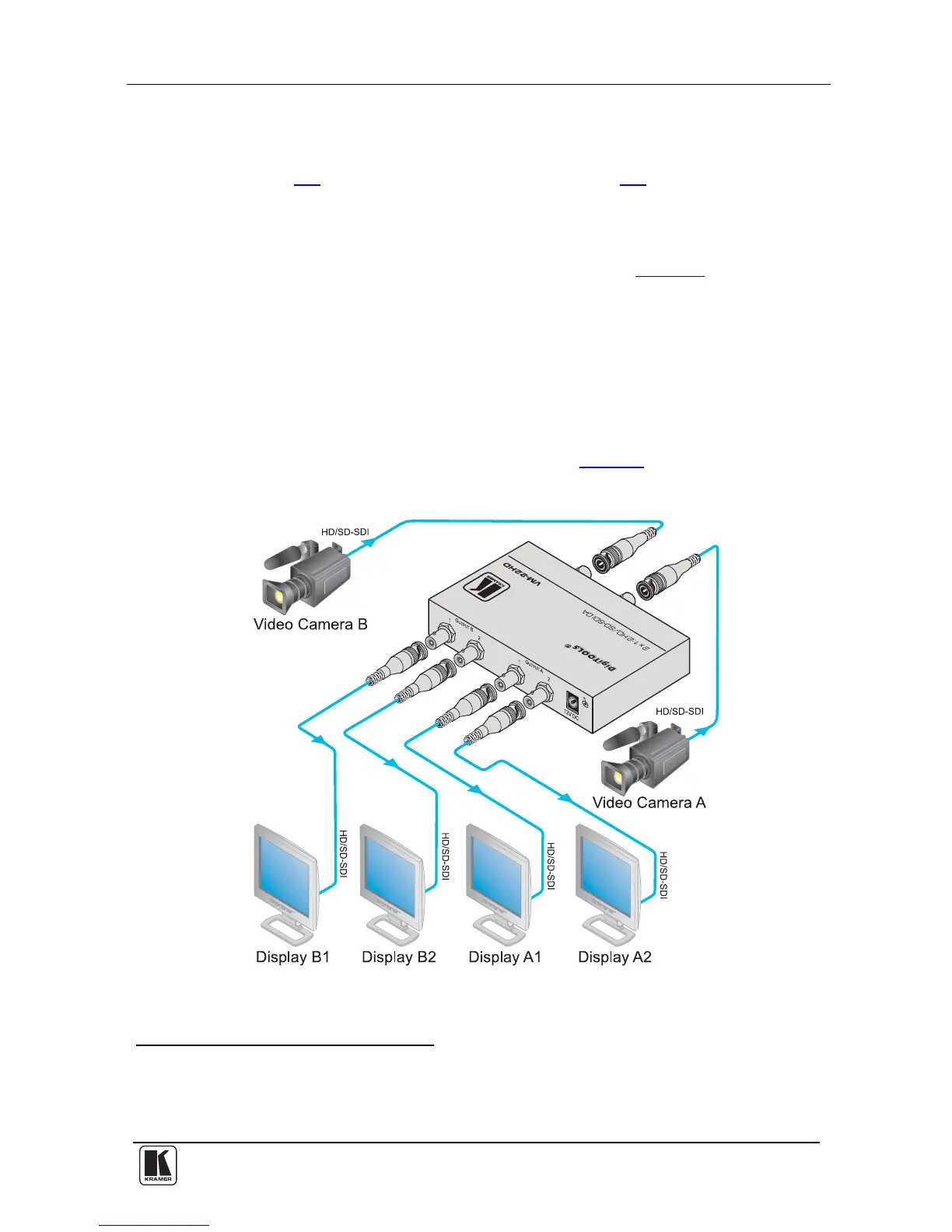

Figure 2: Connecting the VM-22HD in Single Link Mode
1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on
its power and then switch on the power on each device
2 You do not have to connect all outputs
