Connecting the VM-1610 and VM-80A
8
7. Adjust the right and left audio levels by turning the CH1 and CH2 LEVEL
trimmers with a small screwdriver.

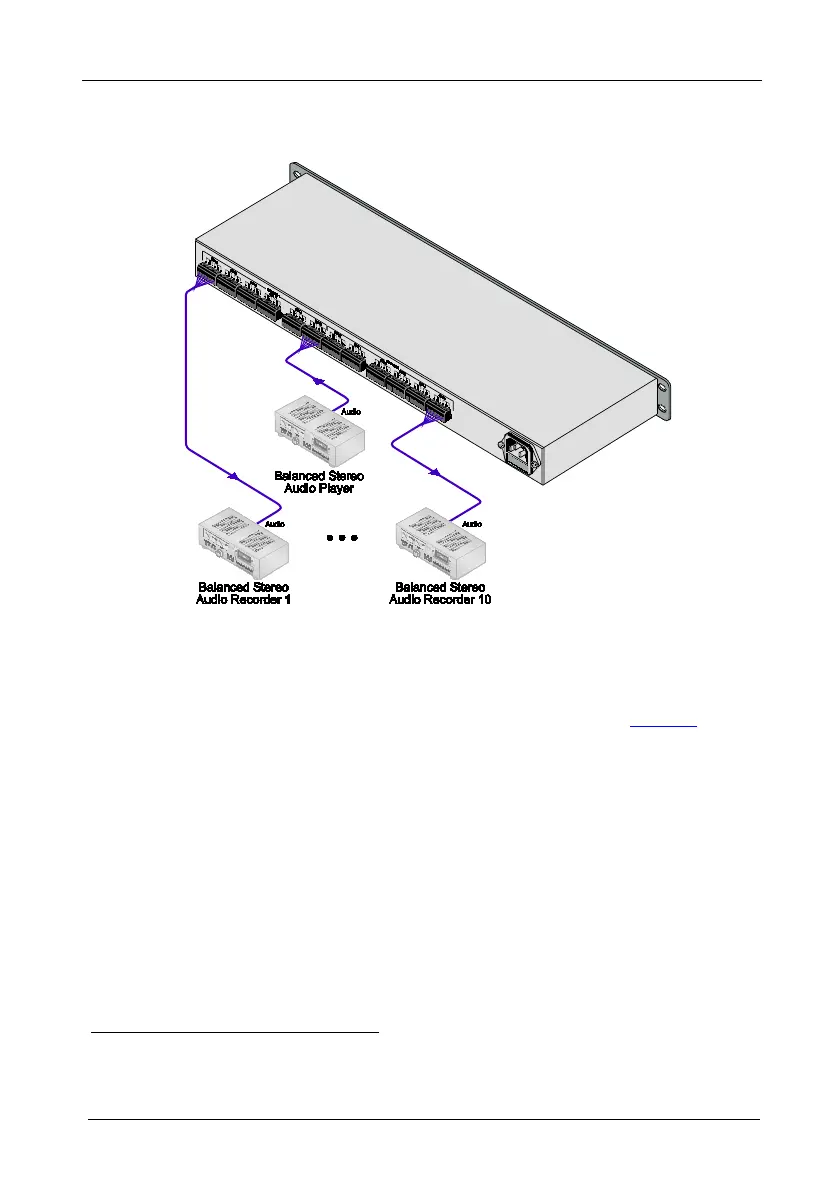

Figure 3: Connecting the VM-1610 in a 1:10 Configuration
6.2 Connecting the VM-80A Distribution Amplifier
To connect the VM-80A in a 1:8 configuration, as shown in
Figure 4, do the
following
1
1. Connect the input source (for example, a balanced stereo audio player) to
the CH 1 INPUT terminal block connector.
:
2. Connect the OUT terminal block connectors to up to 8 acceptors (for
example, balanced stereo audio recorders).
3. Press the 1:8 MODE button.
4. Switch on the VM-80A.
The audio input is distributed to the audio outputs.
Note: CH 2 INPUT cannot be distributed to all 8 outputs, only the CH
1 INPUT can.
1 Switch OFF the power on each device before connecting it to your VM-80A. After connecting your VM-80A, switch on its
power and then switch on the power on each device
