Your VM-1610 and VM-80A Distribution Amplifiers
5
5
Table 1: VM-1610 1:10 Balanced Audio-Stereo Distributor Functions
#
Feature
Function
1 POWER Switch Illuminated power switch to turn the unit on and off
2 CH 2 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 2
3 MODE (1:10, 2x1:5) Button Press to choose 2x1:5 output, release to choose 1:10
output
4 CH 1 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 1
5 CHANNEL 1 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (1
to 5)
6 CHANNEL 1 INPUT Terminal Block Connects the a balanced stereo source 1
7 CHANNEL 2 INPUT Terminal Block Connects the a balanced stereo source 2
8 CHANNEL 2 OUT Terminal Blocks Connect to the channel 1 balanced stereo acceptors (6
to 10) or connect to the channel 2 balanced stereo
acceptors (1 to 5)
9 Power Connector with Fuse AC connector enabling power supply to the unit
4.2 Your VM-80A 1:8 Audio Distributor
Figure 2 and Table 2 define the VM-80A.

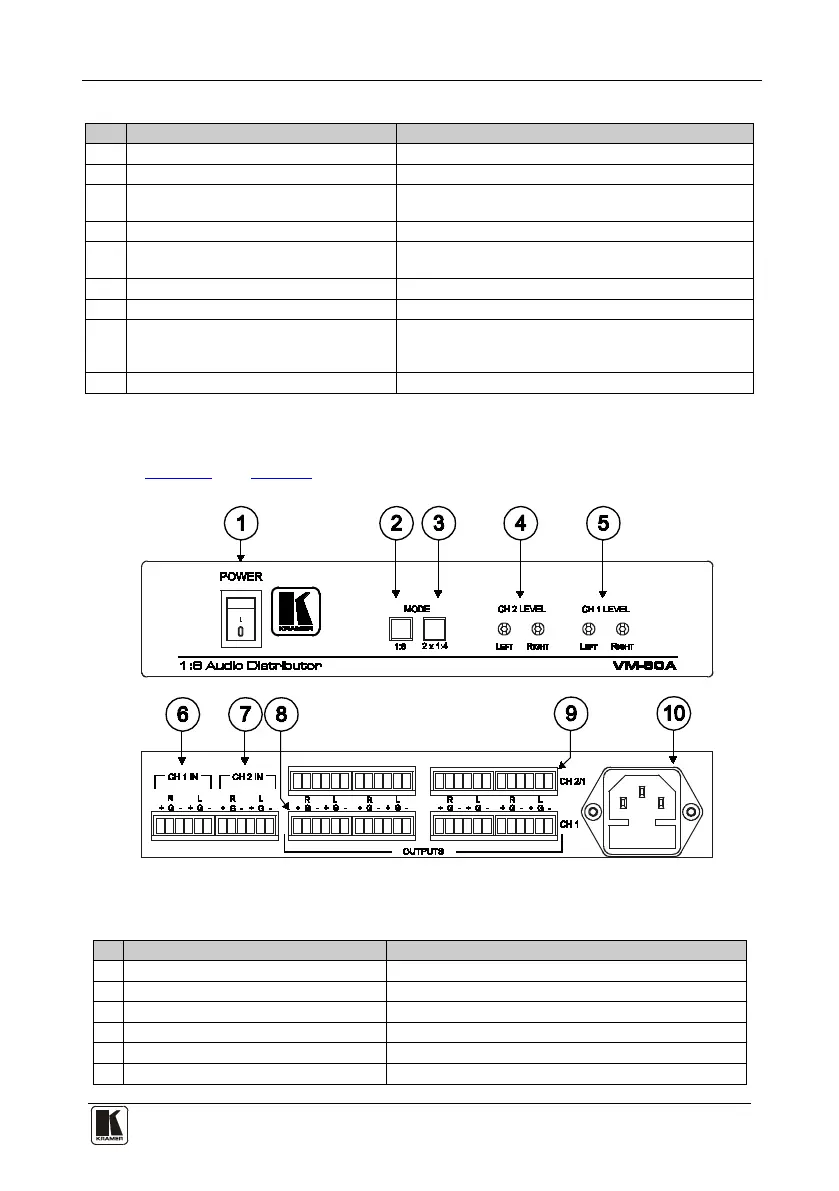

Figure 2: VM-80A 1:8 Audio Distributor Functions
Table 2: VM-80A 1:8 Audio Distributor Functions
#
Feature
Function
1 POWER Switch Illuminated power switch to turn the unit on and off
2 MODE 1:8 Button Press to choose the 1:8 output
3 MODE 2x1:4 Button Press to choose the 2x1:4 output
4 CH 2 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 2
5 CH 1 LEVEL (LEFT, RIGHT) Trimmers Controls the left and right audio gains of channel 1
6 CHANNEL 1 INPUT Terminal Block Connects to the balanced stereo source 1
