Achieving the best performance means:
• Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching,
and elevated noise levels (often associated with low quality
cables)
• Avoiding interference from neighboring electrical appliances and
positioning your VP-200N5
away from moisture, excessive sunlight
and dust
4 Your VP-200N5 1:2 High Resolution UXGA DA

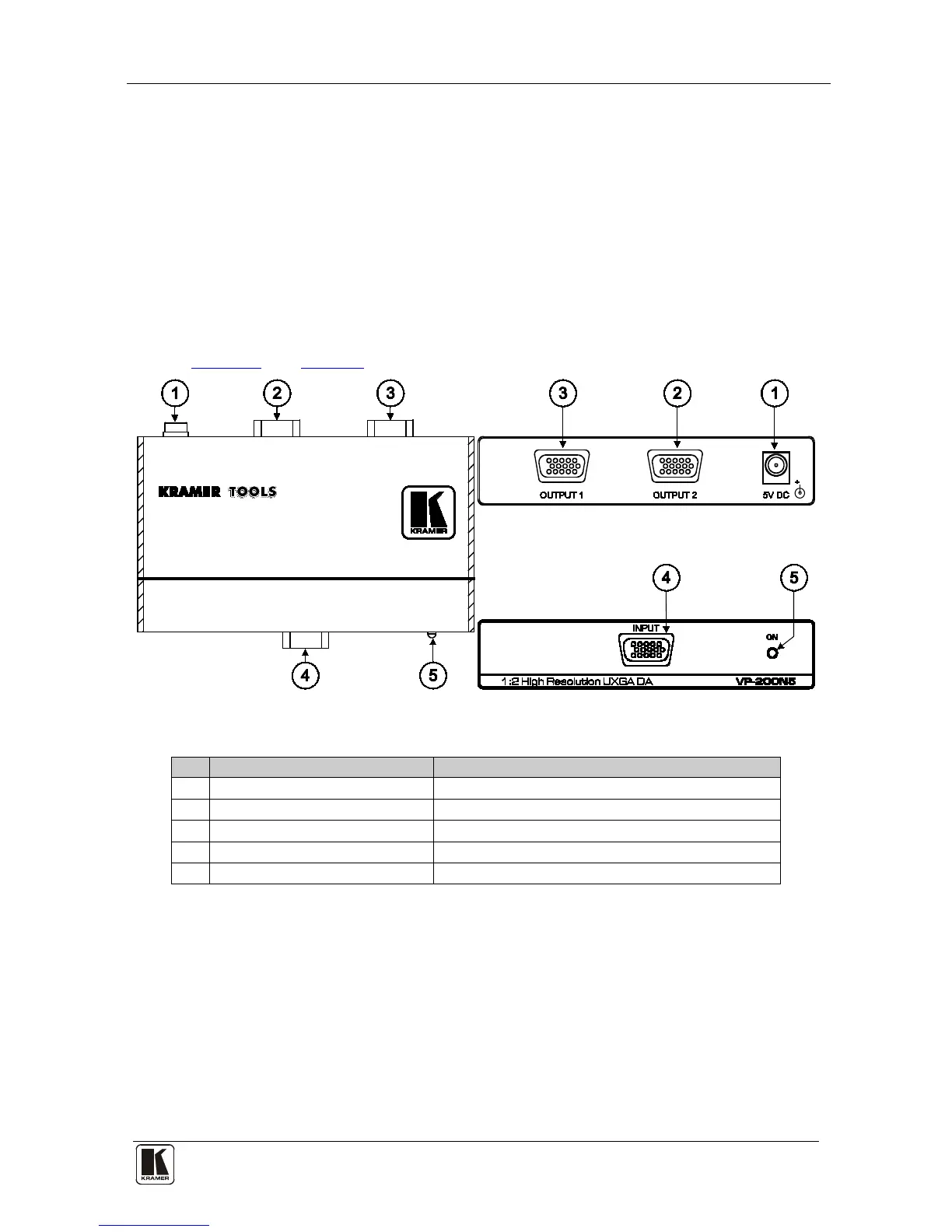

Figure 1 and Table 1 define the VP-200N5:
Figure 1: VP-200N5 1:2 High Resolution UXGA DA
Table 1: VP-200N5 1:2 High Resolution UXGA DA Features
1 5V DC +5V DC connector for powering the unit
2 OUTPUT 2 15-pin HD Connector Connect to the computer graphics acceptor 2
3 OUTPUT 1 15-pin HD Connector Connect to the computer graphics acceptor 1
4 INPUT 15-pin HD Connector Connect to the computer graphics source
5 ON LED Illuminates when receiving power
