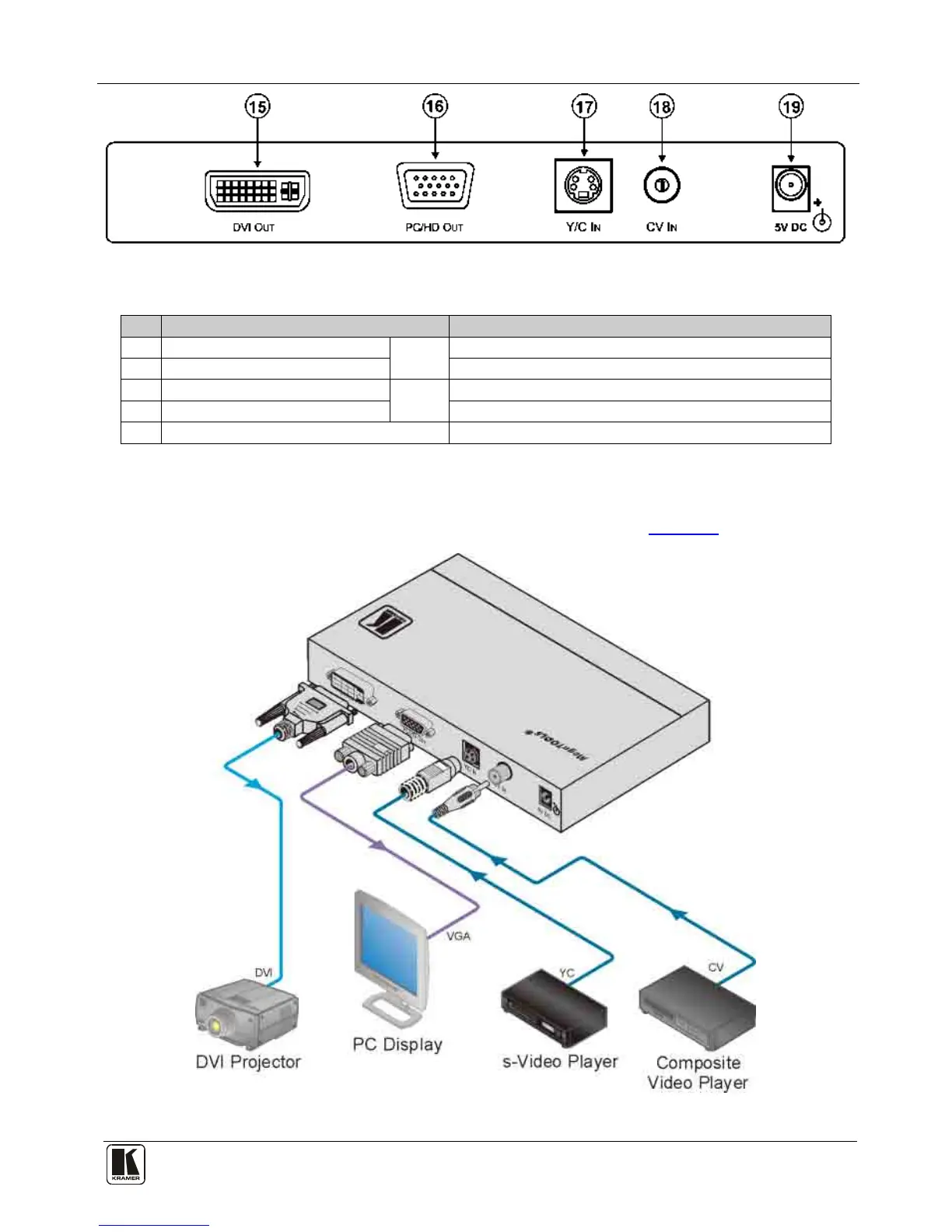

Figure 2: VP-417 Video to PC/HD/DVI Scaler Rear Panel
Table 2: VP-417 Video to PC/HD/DVI Scaler Rear Panel Features
# Feature Function
15 DVI OUT Connector
Outputs
Connect to the DVI acceptor
16 PC/HD OUT 15-pin HD Connector Connect to the PC, RGBHV or HD acceptor
17 Y/C IN 4-pin s-Video Connector
Inputs
Connect to the s-Video source
18 CV IN RCA Connector Connect to the composite video source
19 5V DC Connect to the +5V DC power adapter, center pin positive
5 Connecting the VP-417 Video to PC/HD/DVI Scaler
To connect the VP-417, as illustrated in the example in Figure 3:
Figure 3: Connecting the VP-417 Video to PC/HD/DVI Scaler
