VP-472 - Overview
5
3.1 Defining the VP-472 SDI to HDMI Scaler
This section defines the VP-472.

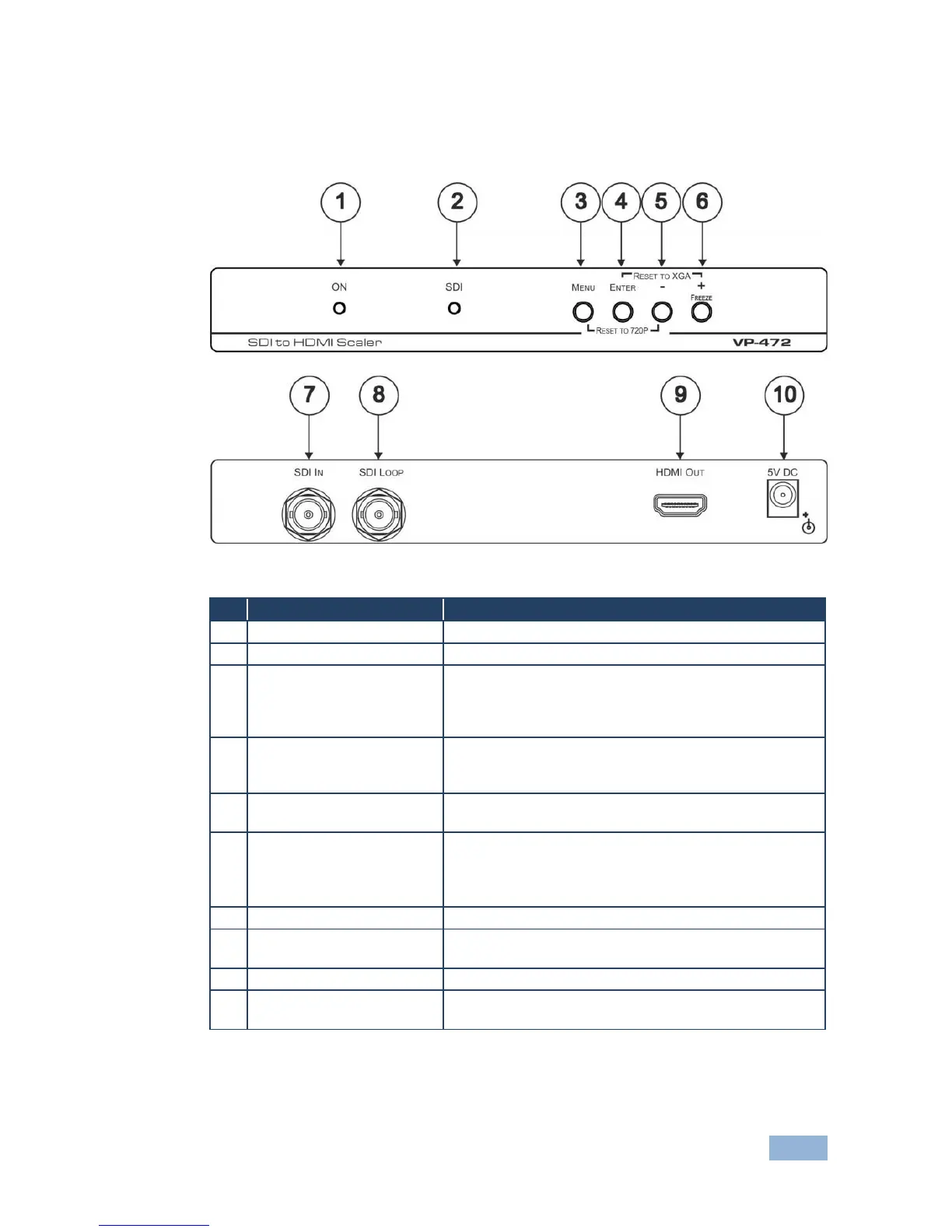

Figure 1: VP-472 SDI to HDMI Scaler
#
Feature
Function
1
ON LED
Lights green when the unit is powered on
2
SDI LED
Lights blue when an SDI signal is detected on the input
3
MENU Button
Press to display the OSD (On-screen Display) Main
menu.
When the OSD is not displayed, press together with the
– button to set the output resolution to 720p (1280x720)
4
ENTER Button
In the OSD, press to select the highlighted menu item.
When the OSD is not displayed, press together with the
+ button to set the output resolution to XGA
5
– Button
In the OSD, press to step up through the options or to
decrement the parameter value
6
+/FREEZE button
In the OSD, press to step down through the options or
to increment the parameter value.
When the OSD is not displayed, press to freeze the
display
7
SDI IN BNC Connector
Connect to the SDI source
8
SDI LOOP BNC Connector
Connect to the SDI acceptor. The signal is reclocked
and equalized
9
HDMI OUT Connector
Connect to the HDMI acceptor
10
5V DC
Connect to the +5V DC power adapter, center pin
positive
