3.1 Defining the VP-505 3G HD-SDI to Video Scan Converter
This section defines the VP-505.

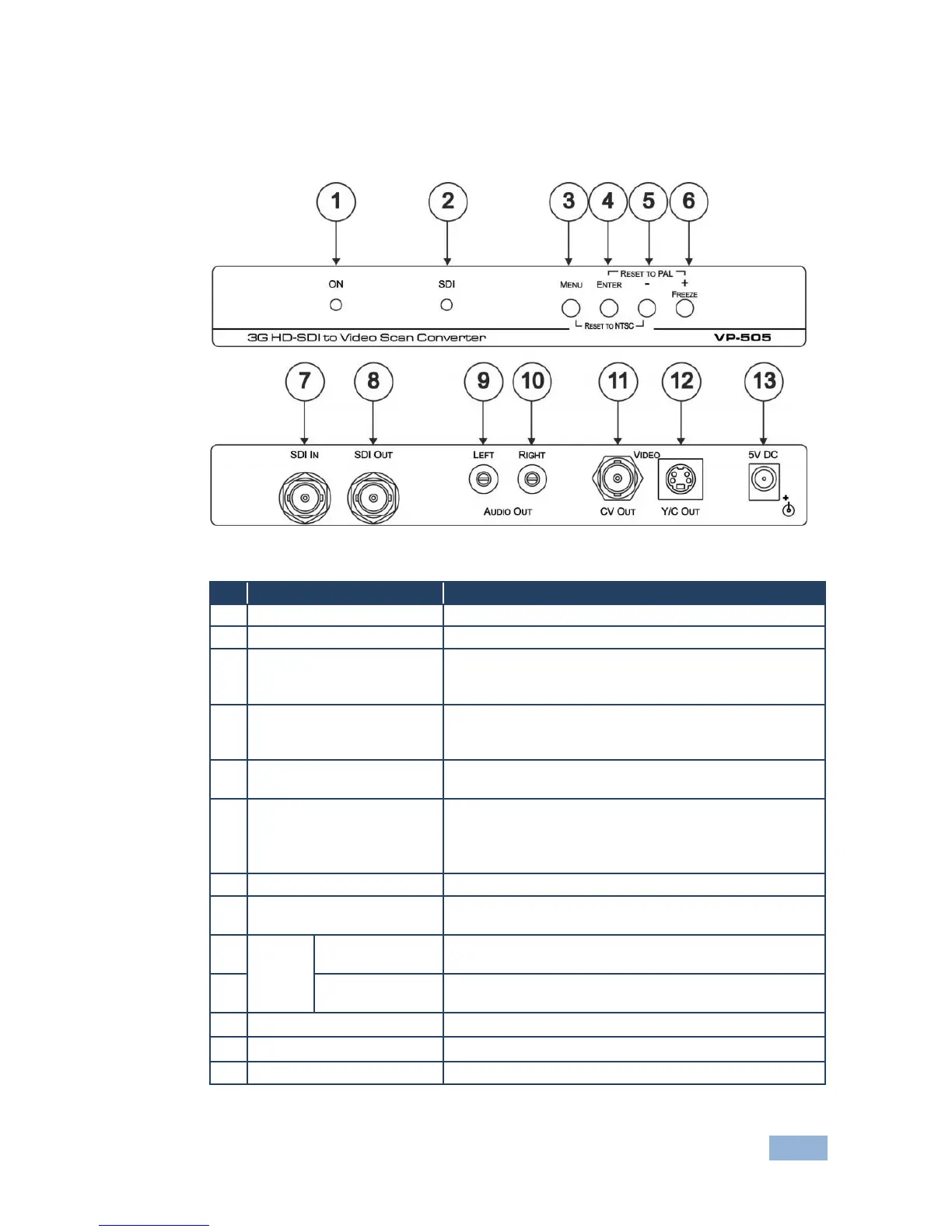

Figure 1: VP-505 3G HD-SDI to Video Scan Converter
#
Feature
Function
1
ON LED
Lights green when the unit is powered on
2
SDI LED
Lights blue when an SDI signal is detected on the input
3
MENU Button
Press to display the OSD (On-screen Display) menu.
When the OSD is not displayed, press together with the
– button to set the output resolution to NTSC
4
ENTER Button
In the OSD, press to select the highlighted menu item.
When the OSD is not displayed, press together with the
+ button to set the output resolution to PAL
5
– Button
In the OSD, press to step up through the options or to
decrement the parameter value
6
+ / FREEZE Button
In the OSD, press to step down through the options or
to increment the parameter value.
When the OSD is not displayed, press to freeze the
display
7
SDI IN BNC Connector
Connect to the SDI source
8
SDI OUT BNC Connector
Connect to the SDI acceptor (loop). The signal is
re-clocked and equalized
9
AUDIO
OUT
LEFT Channel
RCA Connector
Connect to the left channel of the unbalanced stereo
audio acceptor
10
RIGHT Channel
RCA Connector
Connect to the right channel of the unbalanced stereo
audio acceptor
11
CV OUT BNC Connector
Connect to the composite video acceptor
12
Y/C OUT 4-pin Connector
Connect to the Y/C (s-Video) acceptor
13
5V DC
Connect to the power adapter, center pin positive
