ASPEN-32UFX, ASPEN-1616UX, VS-8UFX – Connecting ASPEN-32UFX, ASPEN-1616UX, VS-8UFX
9
5. Connect the next SDI switcher in a daisy chain to the LOOP BNC Connector
-OR-
terminate the connector with 75Ω.
6. Connect the 12V power adapter to the POWER 12V DC PS1 Terminal Block
Connector .
7. Optionally, connect a second 12V power adapter to the POWER 12V DC PS2 Terminal
Block Connector as a redundant power source.
Connecting VS-8UFX

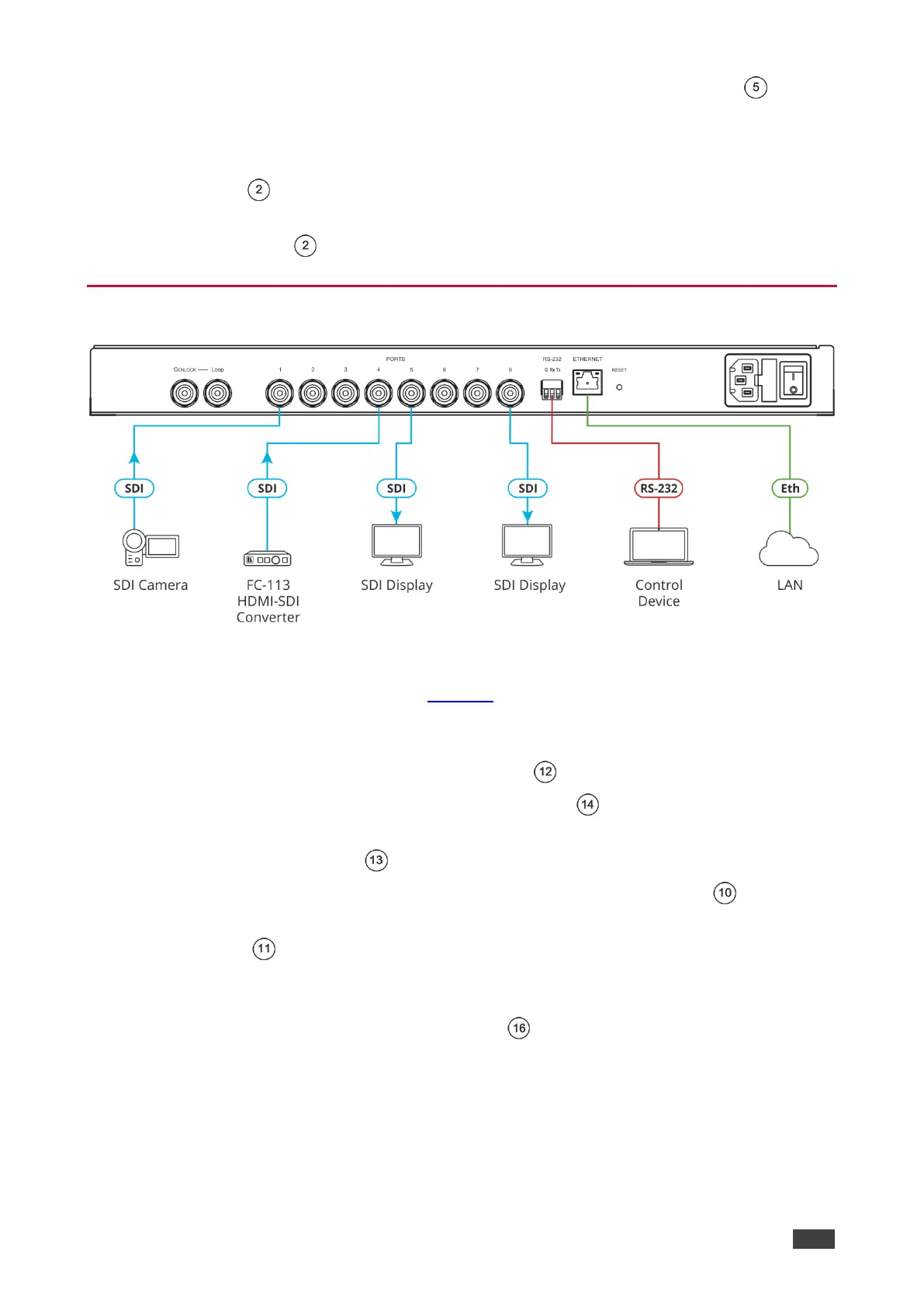

Figure 6: Connecting to the VS-8UFX Rear Panel
To connect VS-8UFX as illustrated in Figure 6:
1. Connect up to 8 video sources (for example, SDI camera, FC-113 HDMI
TM
-SDI
Converter) and acceptors (for example, SDI display, VP-475UX SDI to HDMI converter)
to the interchangeable PORTS BNC Connectors .
2. Connect the LAN to the ETHERNET RJ-45 Connector .
3. Connect a control device (for example, computer or serial controller) to the RS-232
Terminal Block Connector .
4. If required, connect a genlock source to the GENLOCK BNC Connector .
5. If required, connect the next SDI switcher in a daisy chain to the LOOP BNC
Connector
-OR-
terminate the connector with 75Ω.
6. Connect the power cord to the Power Socket .
