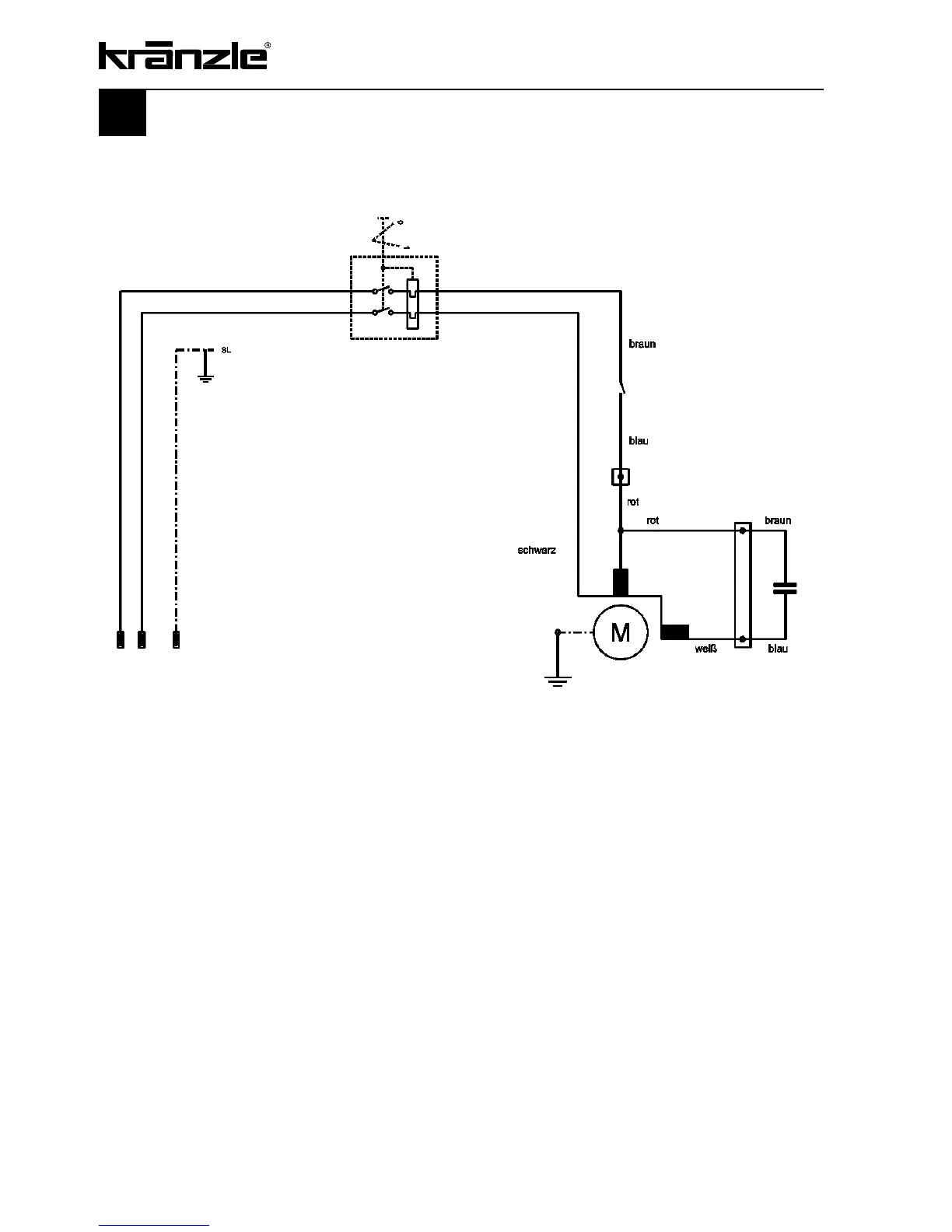

Wiring diagram Kränzle 2160 / 2195,
230 V, 50 Hz
On-Off switch with 14.5 Ampere
overload protection
Pressure switch
Pump motor
230 V / 50 Hz
Inlet line via
3 x 1,5 mm
2
,
230 V / 50 Hz
