Description of function - Troubleshooting
The thermostat with rotary switch is controlled by a thermosensor, mounted to the
outlet of the heating coil.
In the electro distributor box (11) mounted to the combustion unit, there is a fuse,
which protects the motor (9) for the fuel pump and ventilator. If the motor is overloaded,
the fuse blows. This can happen when the fuel pump is blocked or does not work
freely, when the ventilator is blocked or does not operate freely or when there is an
electrical problem.
There is a thermosensor (18) in the waste gas tube, which controls an excess
temperature relay with trigger function (4), i.e. when the exhaust gas temperature in
the chimney increases above 230 °C, this relay triggers. To activate it again, you must
wait until the combustion unit has cooled, i.e. approximately 15 minutes. Then, you
can press the button under the cover (14) again. The excess temperature relay can
trigger when the machine is operated over a longer period in the highest steam level, or
when there is lots of soot on the heating coil due to poor combustion, or when the
inside of the heating coil is calcified, so that there is no ventilation (cooling).
As further safety function, the burner is also switched off, when the water
temperature exceeds 147 °C.
22
7
8
18

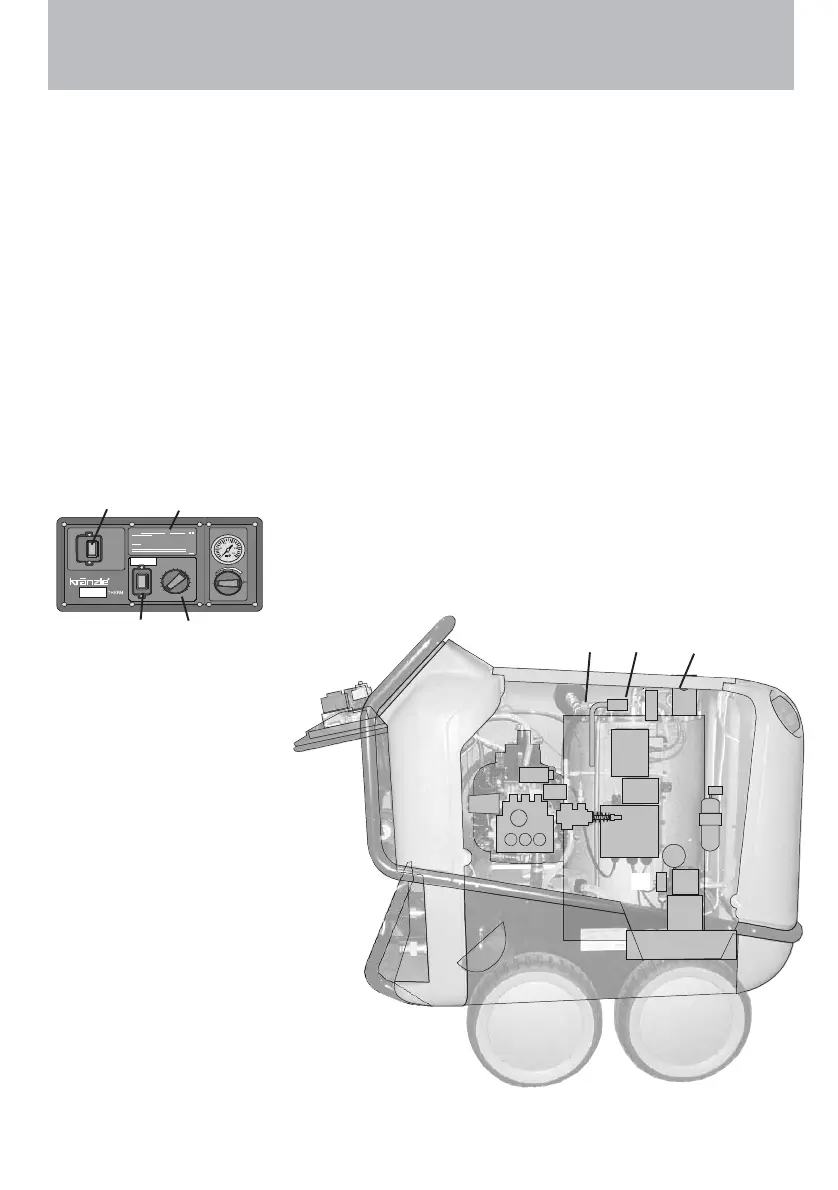

1 Master switch
1A Ignition “ON/OFF
2 Thermostat with rotary switch
3 Brief operat. instruction
4 Hand wheel for pressure
adjustment
5 High pressure pump
6 Pressure switch black
7 Pressure switch red
8 Safety valve
9 Motor for ventilator and fuel
pump
10 Solenoid valve (Fuel)
11 Terminal box
12 Ignition transformer
13 Thermosensor water
14 Excess temperature release
15 Fuel manometer
16 Fuel pump
17 Ignition electrodes
18 Thermosensor exhaust gas
19 Fuel tank
20 Ball cock fuel
21 Ventilator
22 Fuel filter
Haup tsc ha lt er
Wassertemper atur
Wa ter te mpe r atur e
Haup ts c ha lter
Cleaning liquid
Zu Auf
off
0
on
Hauptscha lter
Pressure
Main Switch
100
150
200
250
bar
50
0
100
150
200
250
bar
50
0
70 80
90
100
110
120
130
140
150
°C
0
10
30
20
40
50
60
2
1
3
1A
