46

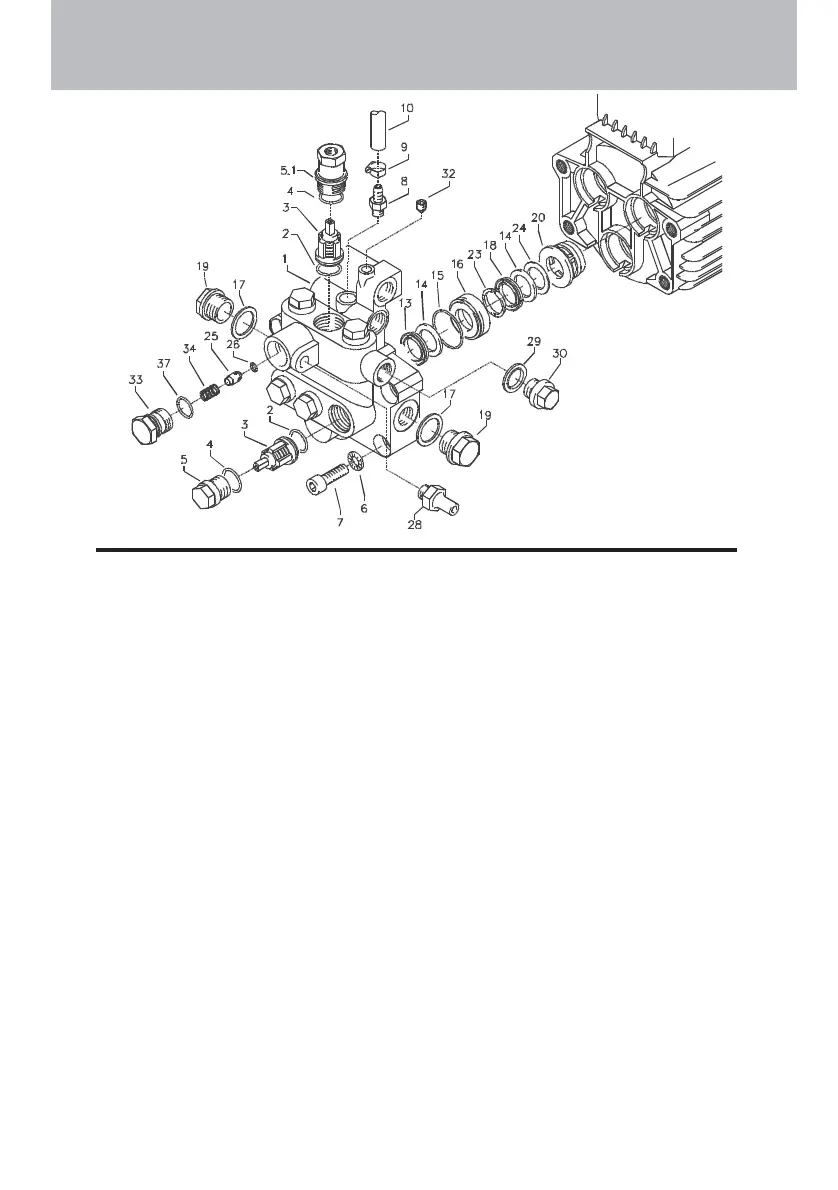

Valve housing
No. Description Qty. Order No.
1 Ventilgehäuse 1 40.503 4
2 O-Ring 18 x 2 6 40.016
3 Ein- / Auslaßventil 6 42.024
4 O-Ring 21 x 2 6 42.025
5 Ventilstopfen 5 42.026
5.1 Ventilstopfen mit R 1/4" IG 1 42.026 2
6 Sicherungsring 4 40.032
7 Innensechskantschraube M 12 x 45 4 40.504
8 Saugzapfen Chemie 1 44.189
9 Schlauchschelle 10 - 16 1 41.046 3
10 Saugschlauch Reinigungsmittel 1 44.055
13 Gewebemanschette 20 mm 3 40.023
14 Backring 20 mm 6 40.025
15 O-Ring 31,42 x 2,62 3 40.508
16 Leckagering 20 mm 3 40.509
17 Cu-Dichtring 21 x 28 x 1,5 2 42.039
18 Manschette 20 mm 3 40.512
19 Verschlußschraube R 1/2" 2 42.032
20 Distanzring mit Abstützung 3 40.507
23 Druckring 20 mm 3 40.021
24 Zwischenring 20 mm 3 40.516
25 Rückschlagkörper 1 14.122
26 O-Ring 6 x 3 1 14.121
28 Ausgangsteil Pumpe R1/4" x 12 1 44.215
29 Dichtring 1 40.019
30 Stopfen 3/8" 1 40.018
32 Dichtstopfen 2 13.158
33 Ausgangsteil 1 42.161
34 Rückschlagfeder 1 14.120
37 O-Ring 18 x 2 1 43.446
Valve housing compl. w/o press. gauge 40.515 1
Repair kit valves 40.062 1
Repair kit sleeves 40.517
