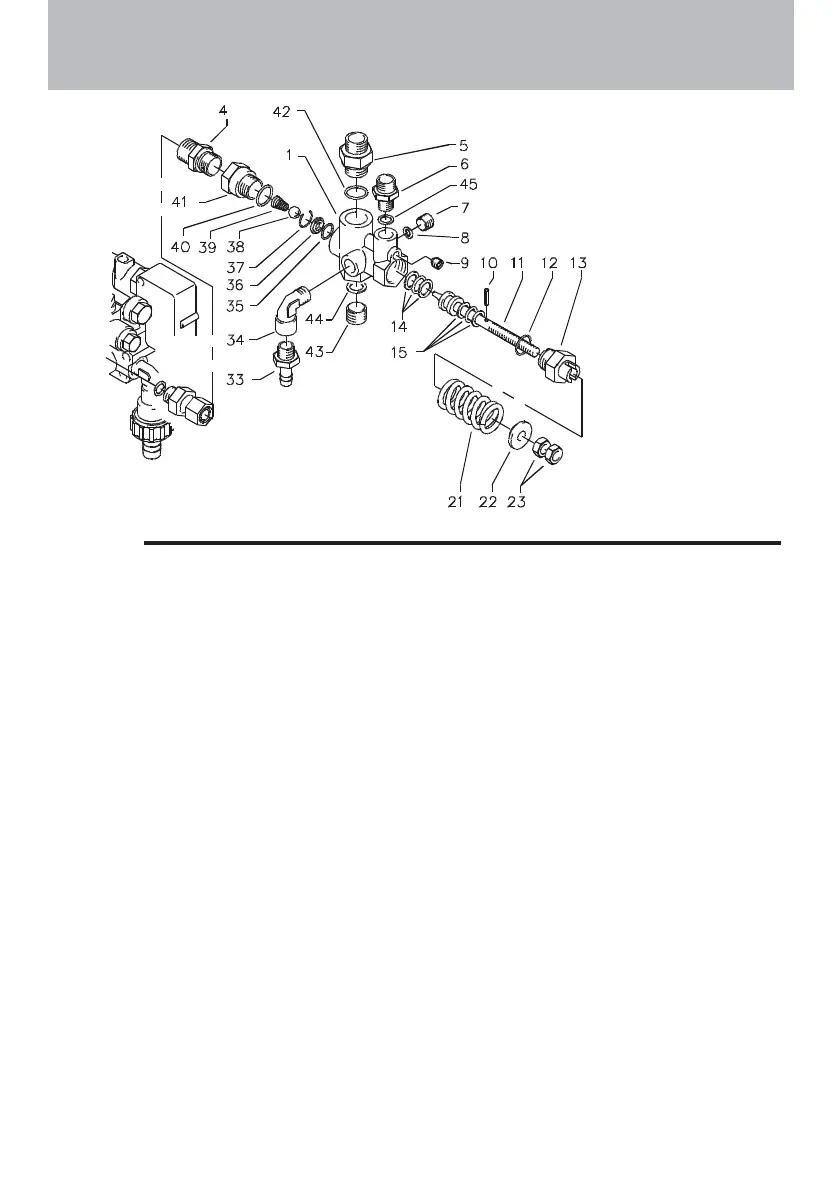

Safety valve for heating coil
No. Description Qty. Order No.
1 Ventilkörper 1 14.145
4 Ermetoverschraubung R 3/8" x 12 mm 1 40.076
5 Ausgangsteil 1 14.115 2
6 Ermetoverschraubung R1/4" x 6 mm 1 44.175
7 Stopfen R1/4" 1 13.387
8 O-Ring 1 13.275
9 Stopfen M 10 x 1 1 13.158
10 Spanstift 1 14.148
11 Steuerkolben 1 14.133
12 O-Ring 1 13.150
13 Kolbenführung 1 14.130
14 Parbaks 16 mm 1 13.159
15 Parbaks 8 mm 1 14.123
21 Ventilfeder 1 14.125
22 Federdruckscheibe 1 14.126
23 Sechskantmutter M 8 x 1 2 14.144
33 Schlauchtülle 1/4" x 6 1 44.053
34 Einschraubwinkel 1 40.121
35 O-Ring 11 x 1,44 1 12.256
36 Edelstahlsitz 1 14.118
37 Sprengring 1 13.147
38 Edelstahlkugel 8,5 mm 1 13.148
39 Edelstahlfeder 1 14.119
40 O-Ring 15 x 2 1 13.150
41 Eingangsstück R3/8" 1 13.136
42 O-Ring 1 13.150
43 Stopfen R3/8" 1 14.139
44 Dichtring 1 14.149
45 Dichtring 2 13.275
Guide piston compl. Pos. 10-15; 21-23 14.110 1
Safety valve compl. Pos. 1-45 44.205
Safety valve for
heating coil
(Adjustment must be approx. 15%
above the operating pressure)
