Kratki MSK - CO Circulating Pumps

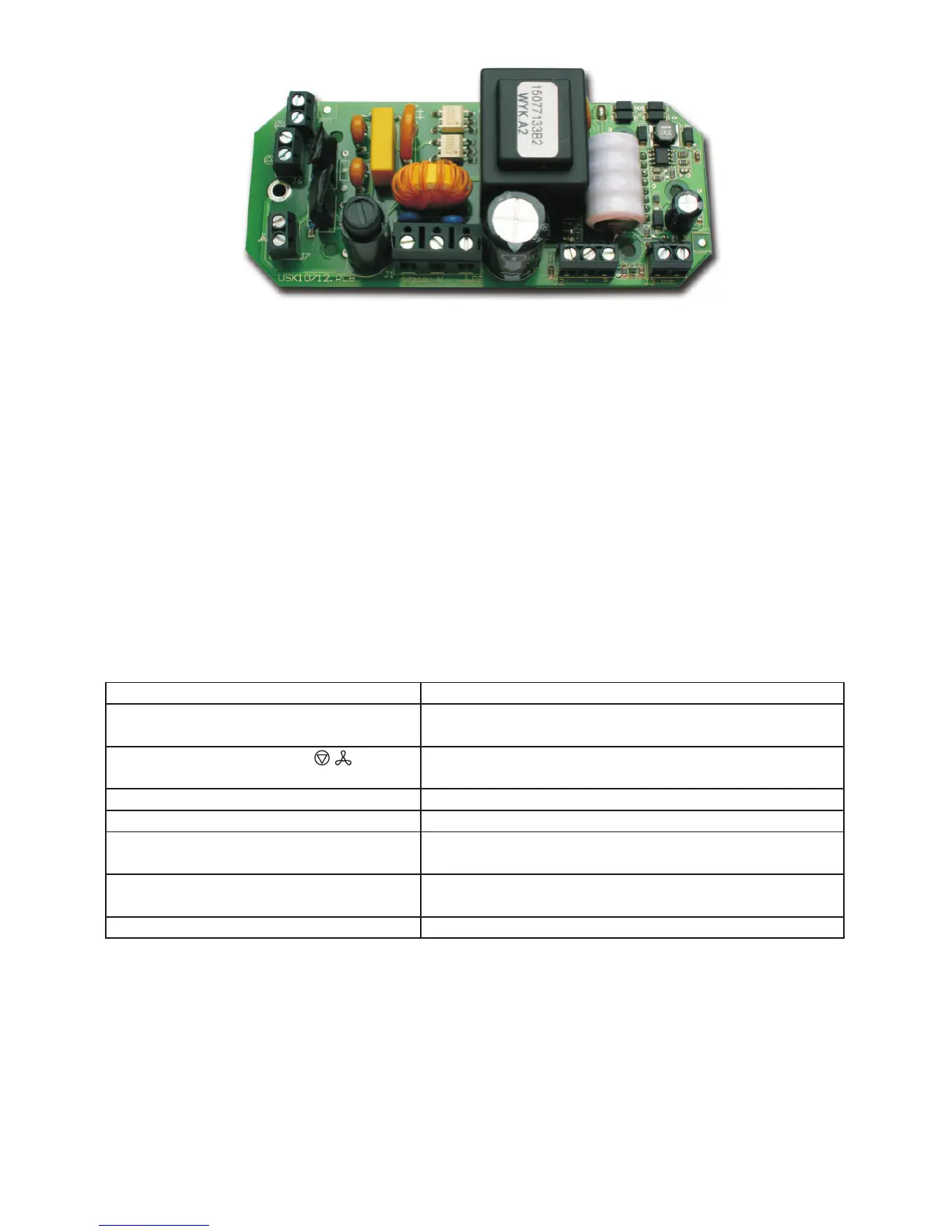

After connecting all the cables to the controller, it must be screwed to the box. Then, in the case of
MSK driver standart version it should wear plastic frame. MSK driver GLASS version press glass
panel in the holes taking care to protruding from the connector is plugged into the socket in
the controller.
Caution!! Assembly of controller and all elements related with it should be made by qualied electri-
cian. It is recommended to connect device to network using emergency power ZZA-150-S, it provides
a sinusoidal voltage to guarantee proper operation of the pump.
Caution!! In case of traditional replace (without water jacket) the temperature sensor with cable
should be assembled in a way assuring no direct contact with body of replace input.
Caution!! When the controller stops working, replace the fuse, and if that does not help, pass the
controller for repair.The fuse is situated in a black vertical slot marked B1.You can only install the fuse
FF4/250V, installing another fuse can result in damage to the device and void the warranty.
Caution!! When controller will signal an alarm immediately put out the re in the replace.
CO circulating pumps
Ventilator or
other device
Power supply 230V AC
L, N, PE 3x0, 75mm2 cu
Throttle steering
Black-, Red+, Yellow S
Temperature sensor,
polarity insignicant
Power supply 230V AC
Power consumption (controller without
peripheral devices)
2,3VA
Total outputs load capacity 2x230V
AC
300 VA of permanent work
Work temperature 5°C - 40°C
Humidity 20% - 80% RH
Scope of temperature regulation
10°C - 200°C for replace with air heating
10°C - 90°C for replace with water jacket
Temperature sensor
PT-100 with silicone cable (work temperature of cable -
60°C-180°C, momentary 220°C)
Fuse FF4/250V (an extra fuse is provided)
Caution!! Producer does not bear any responsibility for damages caused as a result of no power
supply
