Kraus KPF-1675 User Manual

10
Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
2
3
10
9
11
12
13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
4
5
7
6
8
4
5
6
7
8
Ø1 3/8”~
Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10
11
Close
Open
Left
Hot Water
Push
25˚
90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12
13
2
3
4
5
6
7
8

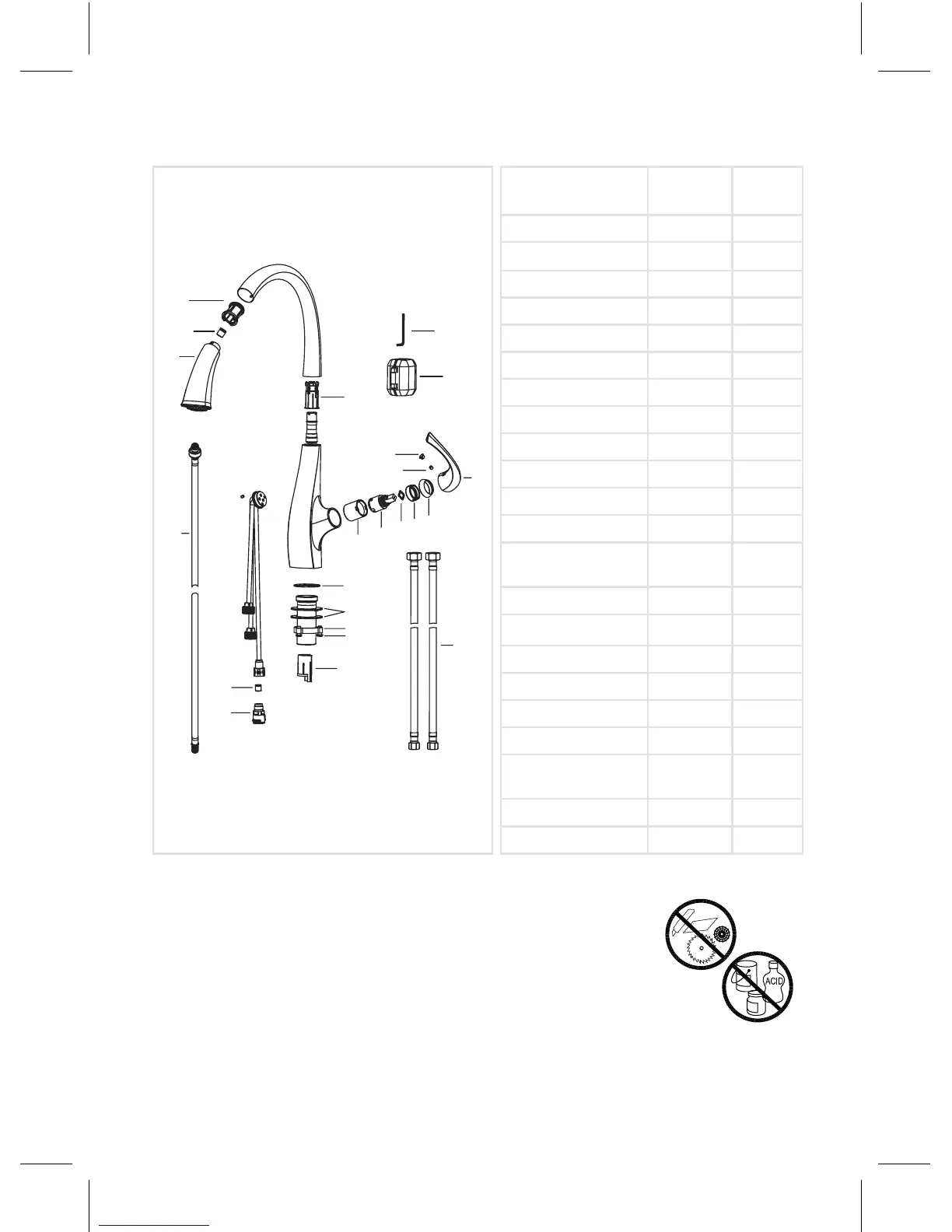

Replacement Parts
1
2
3
22
21
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
17
Replacement
Parts List
Finish /
Color Part #
1. Spray Head CH,SFS,MB KP06093
2. Hose guide GR,BL
KP06004
3. Spout clip GR,BL KP06017
4. Handle Button CH,SFS,MB KP06030
5. Set Screw
KP06055
6. Metal Handle CH,SFS,MB KP06001
7. Cartridge Cover CH,SFS,MB KP06021
8. Locking Nut
KP06018
9. Washer
KP06069
10. Cartridge
KP06100
11. Cartridge Housing
KP06006
12. O-Ring
KP06061
13. Rubber & Metal
Washer KP06042
14. Mounting Nut
KP06067
15. Mounting Screws
KP06068
16. Protective Sleeve
KP06057
17. Check Valve
KP06104
18. Quick Connector
KP06111
19. Spray Hose CH,SFS,MB KP06099
20. Hot & Cold Water-
lines KP06094
21. Weight
KP06015
22. Hex Wrench
KP06050
