Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts
list. If any part is missing or damaged, please contact Kraus Customer
Service at 800-775-0703 for a replacement
• Turn o the hot and cold water supply at the angle stops and turn on the
old faucet to release any built up pressure. Remove existing faucet. Clean
sink or countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to
installing new plumbing. Shut o angle stops
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness without deck plate: 1-3/8”

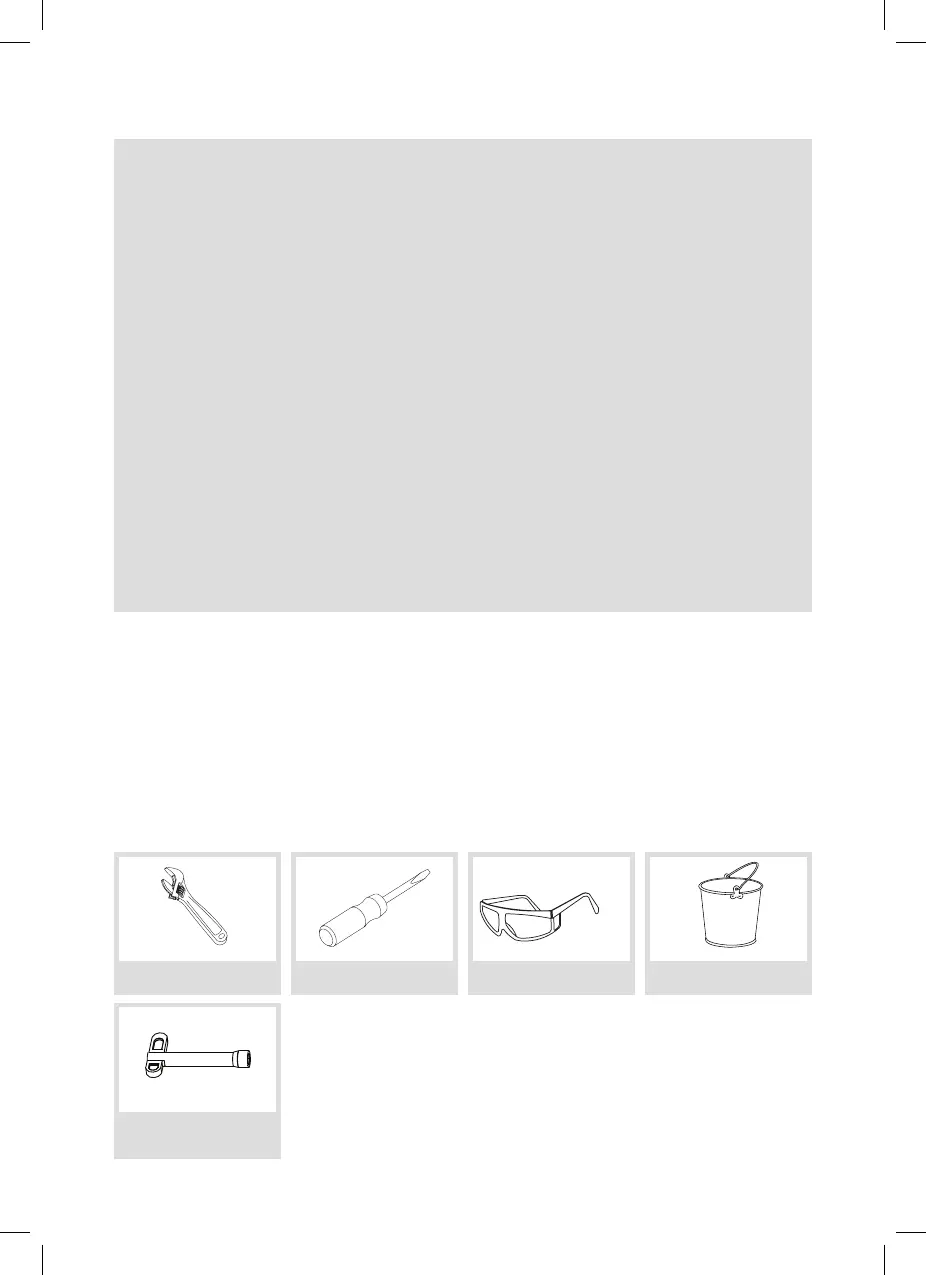

Tools Required
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or Customerservice@kraususa.com
*Safety Goggles
*Spanner
(Included)
*Flathead Screwdriver
*Bucket
*Adjustable Wrench
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7
º
(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(
∅ 45mm)
∅ 1 15/16”
(
∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(
∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
