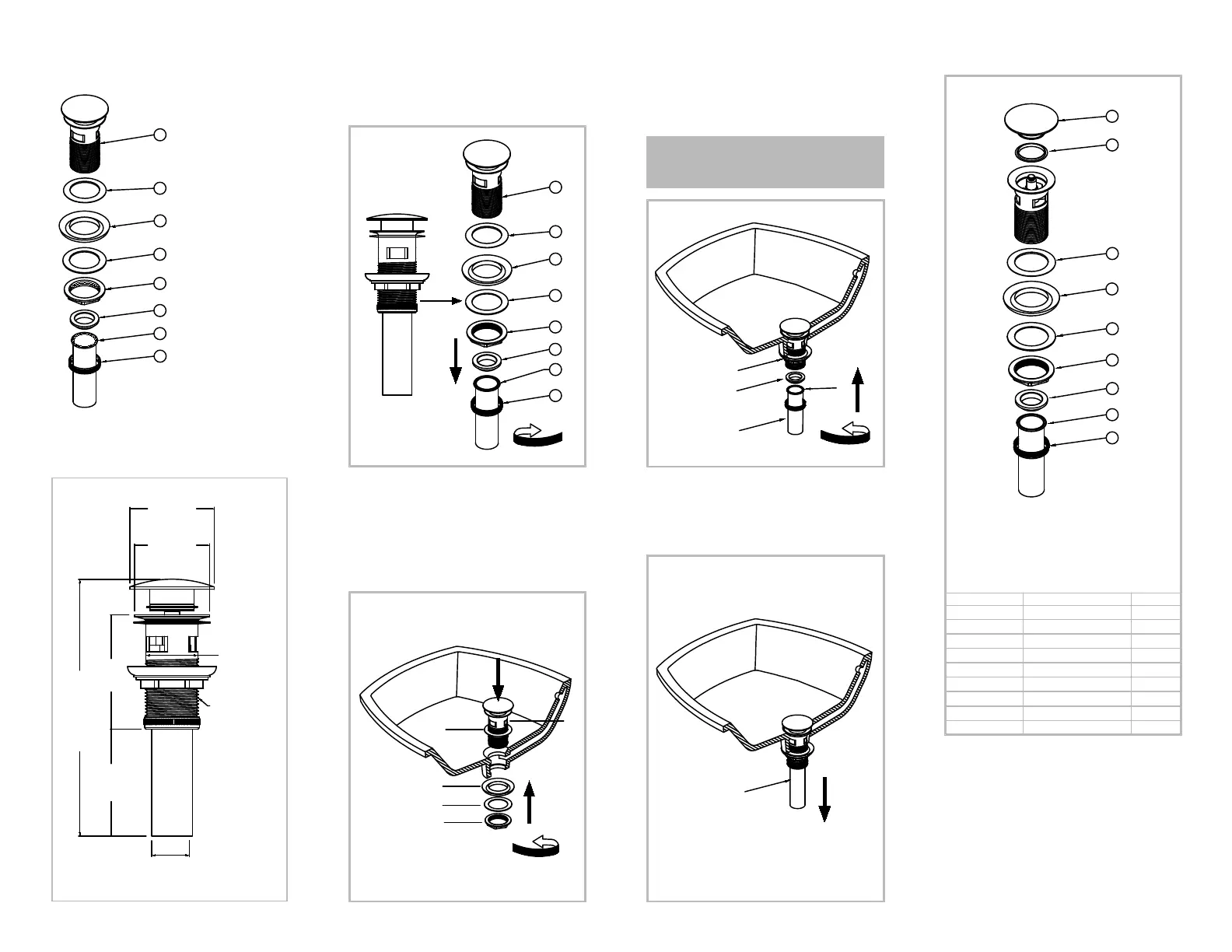

PU-11 DIAGRAM AND PARTS LISTS
STEP 1
Remove connector (h), tail pipe (g), mounting
nut (e), plastic washer (d) and concave washer
(c) from drain body (a).
STEP 3
Tighten mounting nut (e) with adjustable
wrench until snug. Thread connector (h) with
tailpipe (g) attached, onto drain body (a) and
hand-tighten.
STEP 2
Install drain body (a), with rubber washer
(b) attached, into the drain hole. From
underneath, attach concave washer (c) (narrow
end up), plastic washer (d) and mounting nut
(e) to drain body (a).
STEP 4
Connect tailpipe (g) to p-trap.
DIMENSIONS
REPLACEMENT PART LIST
Installer Tip: Make sure tailpipe washer (f)
is installed in tailpipe
a. Drain Body
b. Thin Gasket
c. Concave Gasket
d. Plastic Washer
e. Nut
f. Gasket
g. Tailpiece
h. Nut
a
b
c
d
e
f
g
h
1
2
3
4
5
6
7
8
a
b
c
d
e
f
g
h
h
e
f
g
g
b
c
d
e
a
Ø 1 1/4"
(32mm)
3 1/2"
(90mm)
3 7/8"
(100mm)
8 5/8"
(218mm)
Ø 2 3/8"
(59mm)
Ø 1 5/8"
(41mm)
Ø 2 5/8"
(66.5mm)
M41 X 1.5
1. Drain Cap
2. Gasket
3. Thin Gasket
4. Concave Gasket
5. Plastic Washer
6. Nut
7. Gasket
8. Tailpiece
9. Nut
KP08001
BG,CH,MB,SN,SFS,ORB
Replacement Part Finish Part #
KP08002
KP08003
KP08004
KP08005
KP08006
KP08007
KP08008
KP08009
BG,CH,MB,SN,SFS,ORB
BG,CH,MB,SN,SFS,ORB
BG,CH,MB,SN,SFS,ORB
*Denotes pop up component color options:
BG - Brushed Gold
CH - Chrome
MB - Matte Black
SN - Satin Nickel
SFS - Spot Free Stainless Steel
ORB - Oil Rubbed bronze
