2. Product Illustration
Instruction manual
Welcome to choose my company product Bluetooth
audio magic sound box. The product is a portable audio
with Bluetooth receiver. You can store the songs in
mobile phone or device with Bluetooth playback, and
then transmit to this product for music playback via
Bluetooth. Also with emergency Power Bank function.
Read the instruction manual quickly before use.
A. Main features and Technical Parameters
1. Bluetooth audio player
2. Handfree function
3.
Emergency Power Bank function
4. Φ3.5mm audio input interface
5. Audio Max power：5W*1
6. Frequency response: 20Hz-20kHz
7. Max. power consumption: 1W
8. Built-in high capacity rechargeable Li-Battery.
9. Input: 5V/1A
10. Output:5V/1A
11. Charging time : around 3-4 hours
12.Continue playing music about 6-8 hours when built-in lithium
battery is fully charged.
13. Continue for Nightlight about 10 hours when built-in lithium
battery is fully charged.
14. Water resistance level: IPX4

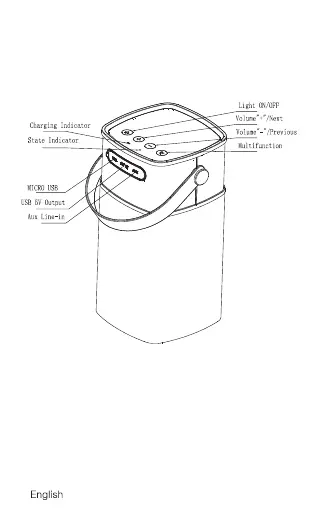

B. Product Illustration
D. Bluetooth playback
1. Long press “ ”for 2 seconds for power ON to Bluetooth
speaker. Blue status indicator is ON. Please don’t plug the audio
cable into the line- in jack when Bluetooth playback.
2. Turn on your cell phone or Bluetooth device on the Bluetooth
function, and search for devices in the Bluetooth menu.
3. When "Hiting" appears on the Bluetooth devices list, select
"Hiting" to establish pairing and connection ( if asked for a
passkey, enter 0000 ).When the pairing and connection is
successful, it produces a connected tone, and Bluetooth indicator
changes to slow flash, the speaker is ready for playing music.
Short Press “ ”to play music.
4. When the connection between the mobile and the speaker is
successful, and the speaker is playing music, the music will be
stopped when incoming call is reaching and the speaker will
play incoming call alert, and short press “ ”to answer the call,
others’speech will be broadcast via the speaker, Long press
“ / ”to adjust desire volume for conversation. Please
keep toward the speaker within 1meter distance during phone
conversation.Short press “ ”to hang up the phone. The
speaker is automatically restored before playback music.
To reject the incoming call, long press “ ”for 2 seconds to
reject the incoming call.
To redial the previous call number, short press “ ”twice for
redial.
5. If the pairing is overtime or no flash for indicator light, please
repeat step 1 to 3 for re-connection.
E. Audio input mode
1. Please insert 3.5mm audio cable into the audio input port of
the product , with MP3, IPOD, cell phone or other audio
connections, audio music playback, adjust the audio output
volume to achieve the best sound , and the green indicator is
on.
2. Long press“ / ” to adjust desire volume to achieve the
best sound. The speaker is already adjusted to the max. sound
volume when ’du.du.du’ sound is occurred.
3. Through‘audio line-in’ jack playing music, short press“ ”
for play/pause , the last song, the next song are no function.
Please control music through your music device.
4. Please pull out the audio cable to disconnect the devices from
the speaker, the speaker will switch back to the Bluetooth mood ,
blue status indicator is flashing again, and the product will
automatically pair back with the last device.
F. Power supply and Emergency Power Bank
1. Connect DC 5V adapter with the Micro USB for power
supply and charging the built-in rechargeable lithium battery
synchronously, the red power indicator is flash. After the full
charge , the red indicator become always on,Disconnect the
adapter , all the power charging indicators are off.
2.The speaker with high capacity Li-Battery, with USB Cable
connect with USB output port, can charge for cell phone or pc as
a emergency power supply; The green indicator on for charging,
when become flash, means low battery need to charge.
3.Comparing with the Bluetooth function , Line-in is the first for
the unit .
4. The speaker is powered by the built-in rechargeable battery ,
if no adapter to be connected. When the speaker is charging
through Micro USB, it is not affected whether the speaker is
in ON or OFF status.
5. The emergency power bank USB Output no power out when
the speaker in charging.
G. Night Light function
1. The Bluetooth speaker is with Night light function. Please
short press “ ”for Light ON/OFF, or long press “ ”to
adjust the dimmer function.
H. Troubleshooting
I. Packing Accessories
1. Micro USB cable x 1 2. Line in audio cable x 1
3. An adapter (optional) 4. Instruction manualx1
Caution：
1. The product avoids rain and damp, in order to avoid damage.
2. The product should be kept away from fire, high temperature
environment to avoid the product does not work normally and
explosion.
3. When the product is playing music via Bluetooth technology,
the music may caused intermittent or noise because of the
environment or the source device (such as mobile phones)
interference or software incompatibilities etc… Please adjust the
distance between the music device and the unit, or restart the
unit’s power supply or restart the music device or change to
other music source to have better sound performance.
4. When the product is during a call via Bluetooth technology,
the conversation may be intermittent or noise, or phone off
because of the environment or the network signal interference or
