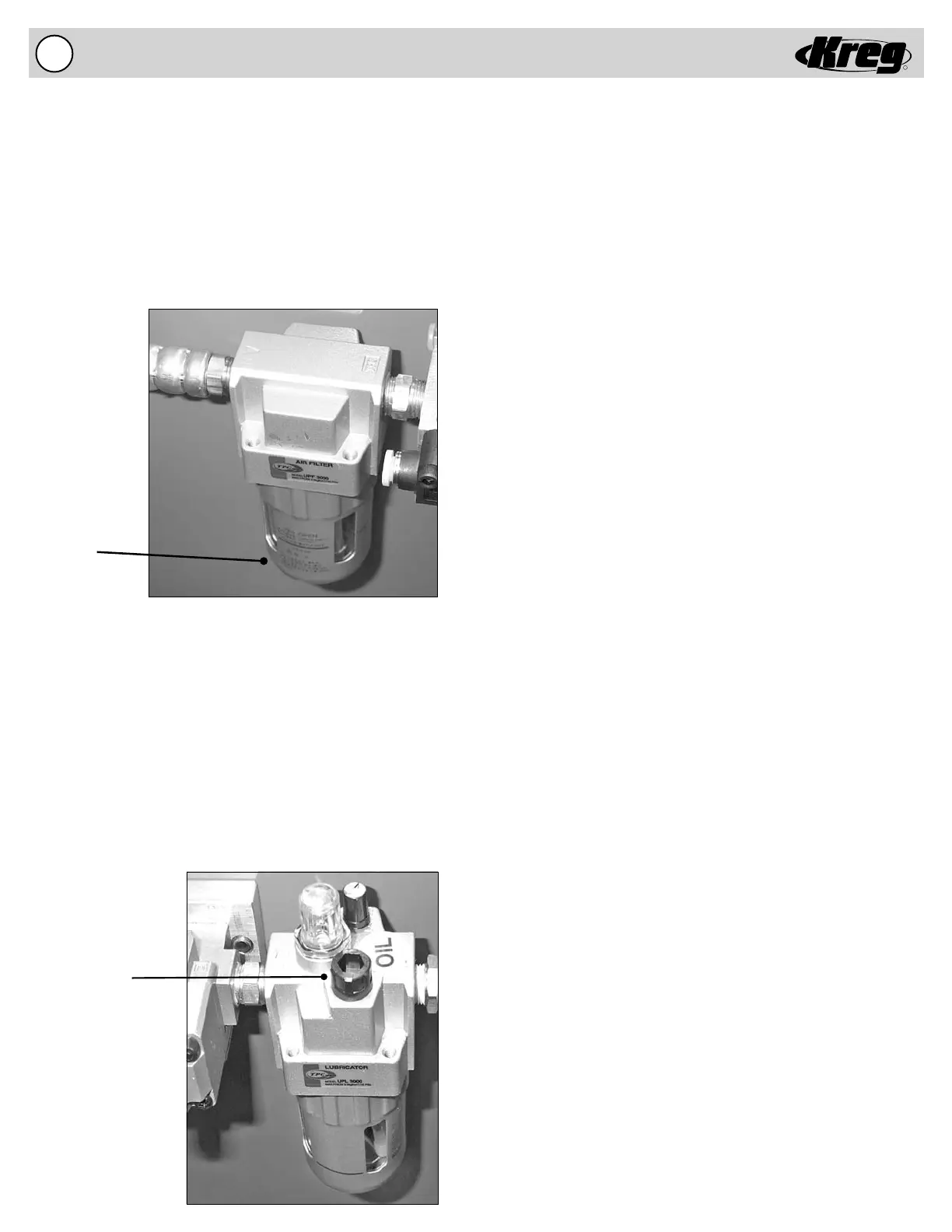

Air System Prefi lter
An Air System Prefi lter is provided to maintain a clean,
moisture-free supply of compressed air to the machine. The
Air System Prefi lter reservoir should be routinely drained of
moisture. To drain moisture from the reservoir either push the
drain valve up toward the reservoir or to the side to use system
air pressure to drain the collected fl uid. If the Air System
Prefi lter reservoir needs to be removed to clean or replace the
fi lter, make certain your machine is DISCONNECTED from the
AIR SUPPLY. Cycle the machine via the foot switch several
times to remove air from the system.
Air System Lubricator
An Air System Lubricator is provided to maintain proper
lubrication to the pneumatic motor. The Air System Lubricator
is fi lled with air motor oil and the Air System Lubricator
comes preset at 1/2 turn open. The oil level in the Air System
Lubricator should be routinely checked and refi lled with
air motor oil comparable to the oil provided. Normal use of
the machine will cause a light fi lm of oil to accumulate on
the underside of the Top Plate where the pneumatic motor
exhausts. Make certain your machine is DISCONNECTED
from the AIR SUPPLY when fi lling the Air System Lubricator.
Cycle the machine via the foot switch several times to
remove air from the system.
Drain
Lubricator
Fill Cap
