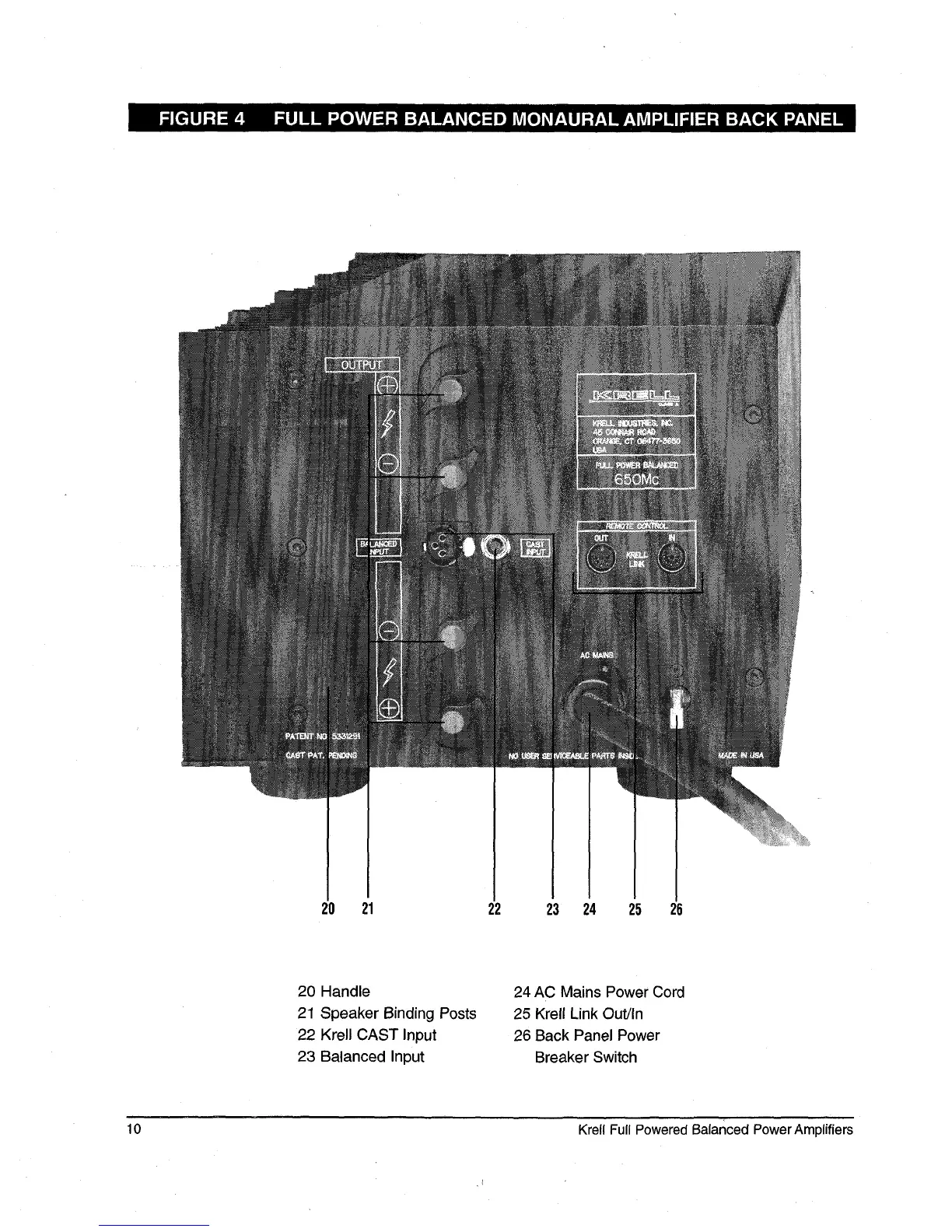

FIGURE 4 FULL POWER BALANCED MONAURAL AMPLIFIER BACK PANEL
20 21 22 23 24 25 26
20 Handle
21 Speaker Binding Posts
22
Krell CAST Input
23
Balanced Input
24 AC Mains Power Cord
25 Krell Link Out/In
26 Back Panel Power
Breaker Switch
10 Krell Full Powered Balanced Power Amplifiers
