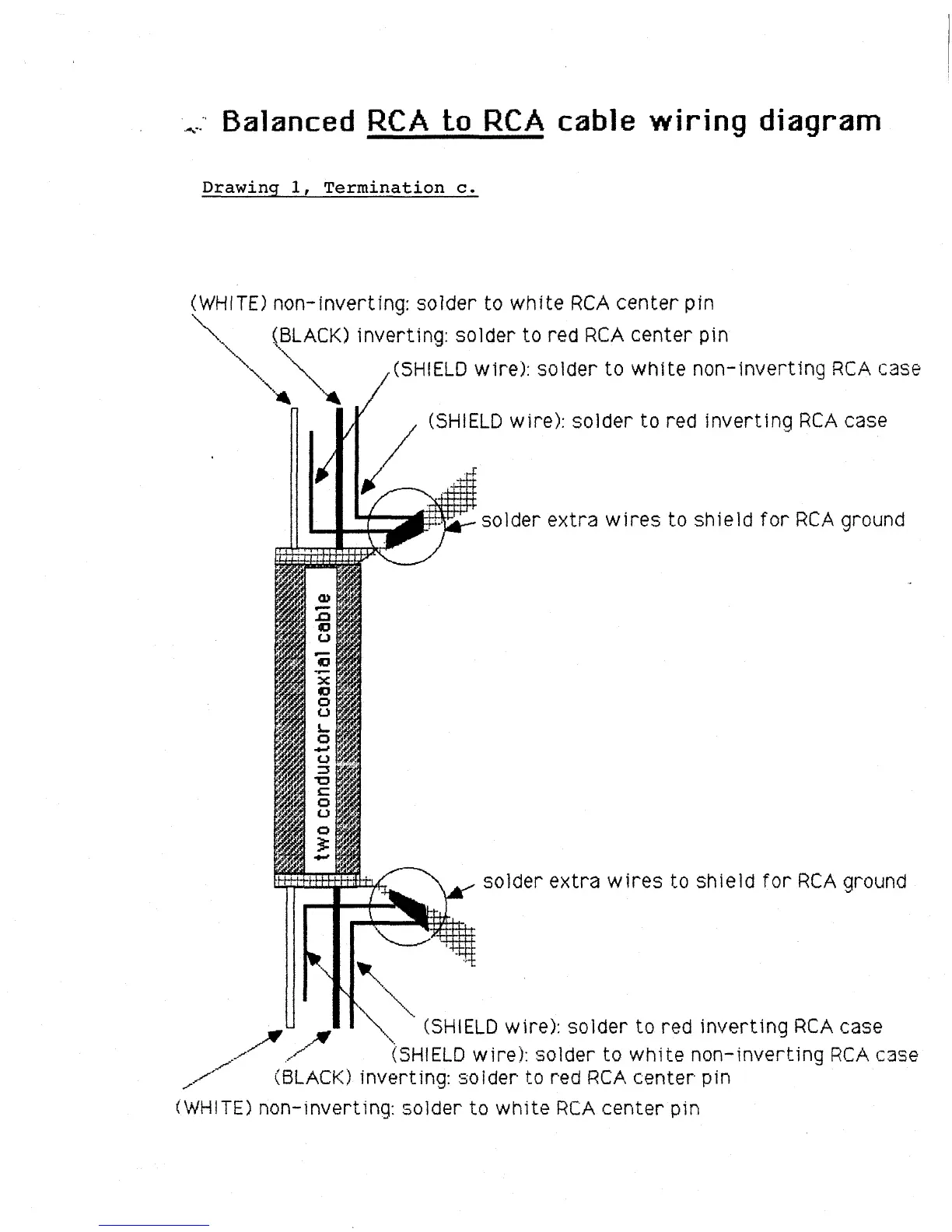

Balanced RCA [o RCA cable wiring diagram
Drawing I, Termination c.
(WHITE) non-inverting: solder to white RCA center pin
~,. \\(BLACK) inverting:L~..., solder to red RCA center
\\
ELD wire): solder to white non-inverting RCA case
(SHIELD wire): solder to red inverting RCA case
solder extra wires to shield for RCA ground
solder extra wires to shield for RCA ground
~ .//~
\... (SHIELD wire): solder to red inverting RCA case
/
..
(SHIELD wire): solder to white non-inverting RCA case
.../ (BLACK) inverting: solder to red RCA center pin
(WHITE) non-inverting: solder to white RCA center pin
