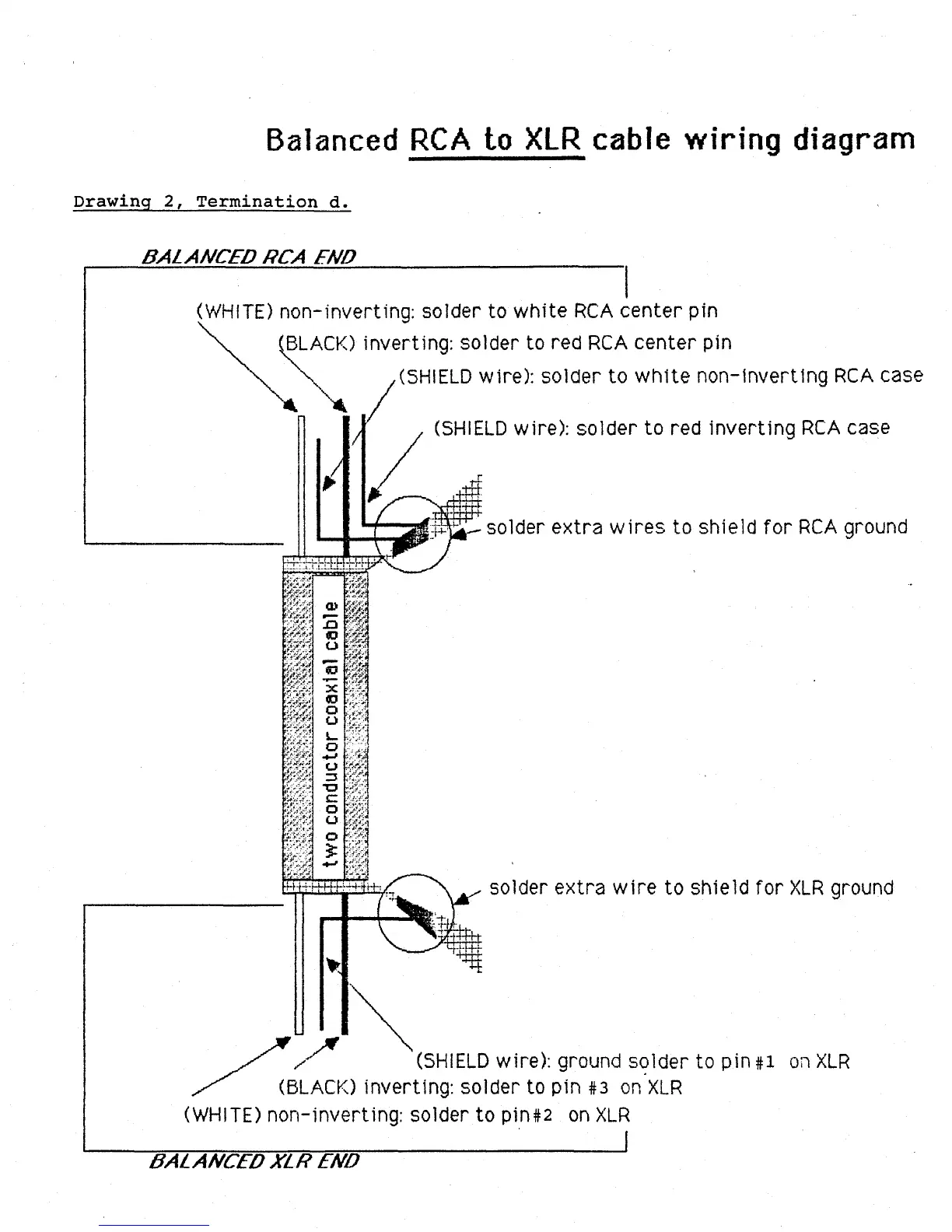

Balanced RCA Lo XLR cable wiring diagram
Drawing 2, Termination d.
BA L A NCED R CA END
(WHITE) non-inverting: solder to white RCA center pin
BLACK) inverting: solder to red RCA center pin
~
,~C.
,(SHIELD wire): solder to white non-inverting RCA case
(SHIELD wire): solder to red inverting RCA case
solder extra wires to shield for RCA ground
solder extra wire to shield for XLR ground
~/! (SHIELD wire): ground solder to Din #i
/ (BLACK) inverting: solder to pin #3 on XLR
(WHITE) non-inverting: solder to pin#2 on XLR
I
~I~ L II NCED XL R END
on XLR
