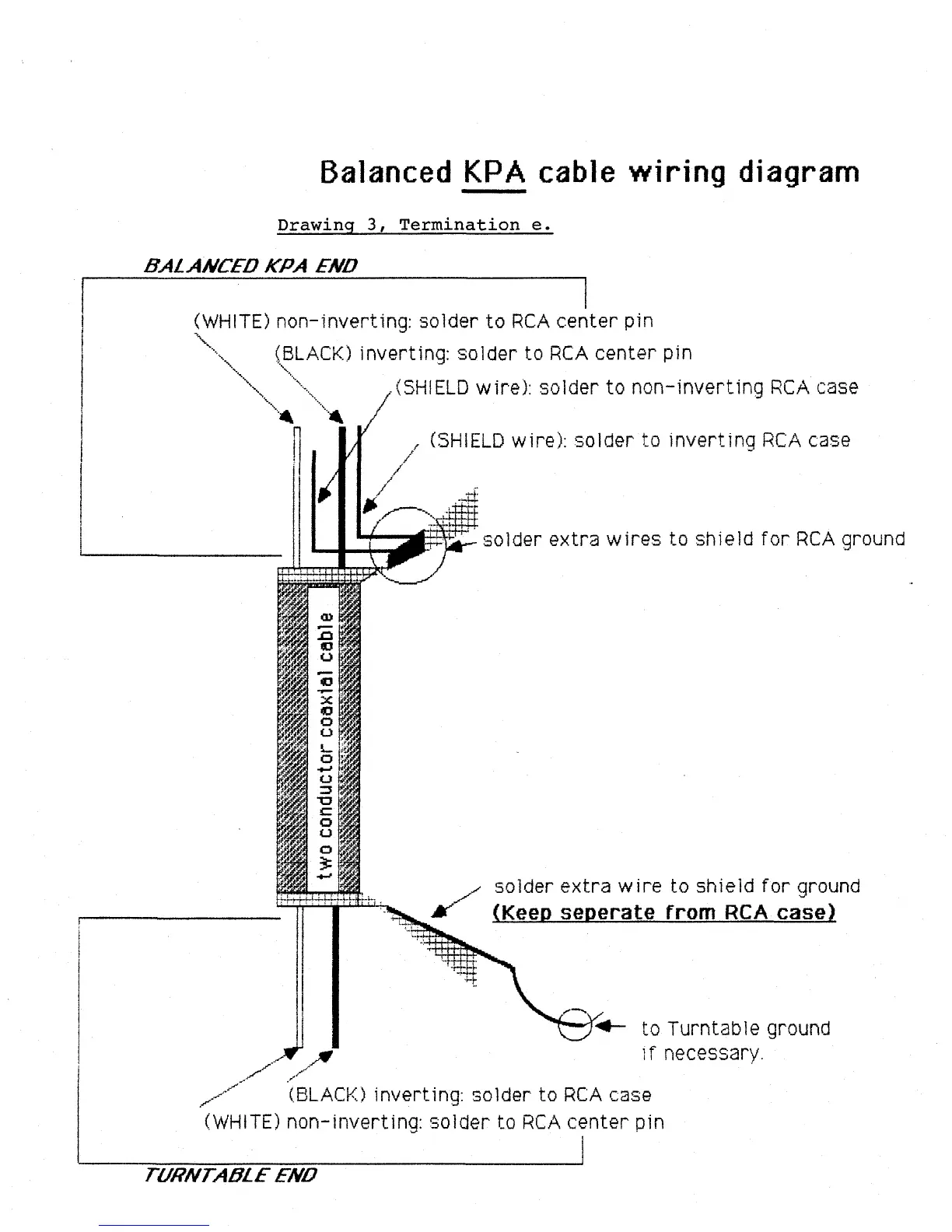

Balanced KPA cable wiring diagram
Drawing 3, Termination e.
B~I L A NCED KPA END
(WHITE) non-inverting: solder to RCA center
.,
(,,BLACK) inverting: solder to RCA center pin
\’"
"’~
(SHIELD wire): solder to non-inverting RCA case
: (SHIELD wire): solder to inverting RCA case
/
/
1/
solder extra wires to shield for RCA ground
solder extra wire to shield For ground
(Keep seperate from RCA case)
(BLACK) inverting: solder to RCA case
(WHITE) non-inverting: solder to RCA center pin
1
TURNTABLE END
to Turntable ground
i f necessary.
