Systems Controls

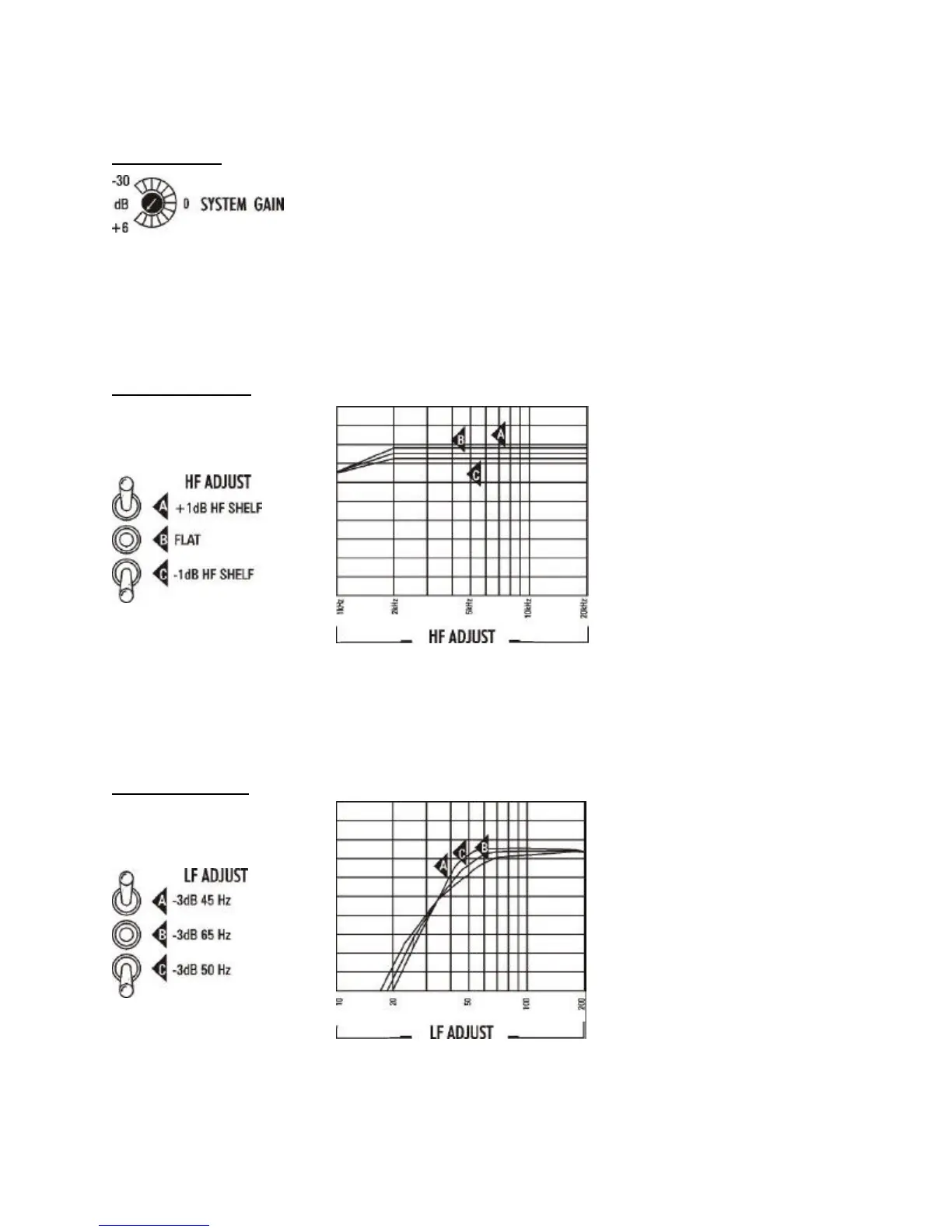

SYSTEM GAIN
The input sensitivity is adjusted (counterclockwise reduces sensitivity) with the rear panel mounted System Gain
control. Adjustment range is from -30dB to +6dB. Factory preset gain is +6dB, which should suffice for most
conditions. Normally adjustments would only be made if you’re using your V8 in a surround system and need to
balance levels or if your monitor send is too hot and not adjustable. If an adjustment is necessary, you’ll need a
small flathead screwdriver and some measuring equipment. (E.g. filtered noise generator and SPL meter)
HF ADJUSTMENT
High Frequency Adjustment is through a rear panel mounted 3-position toggle switch. Range of control is +1dB,
Flat, or -1dB shelving above 1 kHz. Factory setting for your V8 is flat (toggle switch is in middle position). Room
acoustics may dictate which type of adjustment you need to make to retain a flat frequency response from the
monitor. (See additional information in Installing Your Monitors section on page 4.)
LF ADJUSTMENT
Low Frequency turnover is set to 45Hz, 50Hz, or 65Hz by a rear panel mounted 3-position toggle switch. Rear
panel response curve graphics assist you in selecting the appropriate setting. Factory setting for your V8 is -3dB @
45 Hz (toggle switch is in up position). Room acoustics may dictate which type of adjustment you need to make to
