18
Putting the machine into operation

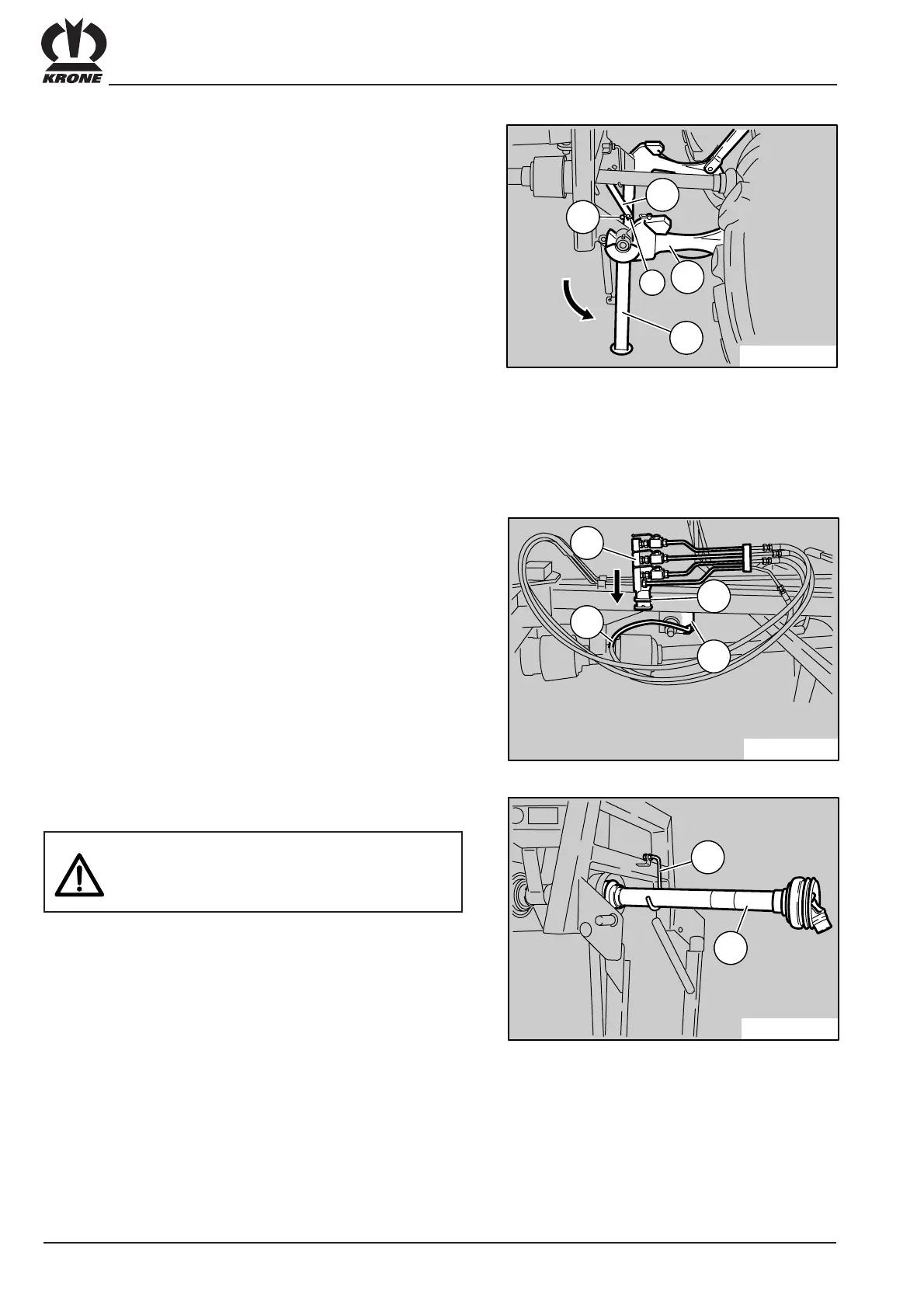

2.6 Removing the rotary tedder
• Remove R-clip (1)
• Remove strut (2)
• Fold prop stand (4) to the bottom and attach strut (2)
to the cam again in the lower position "a". Secure
using a R-clip.
• Lower bottom links (3) and detach them form the
machine
• Store the pull rope for the transport locking facility
on the rotary tedder
• Detach connecting hose (2) from the tractor coupler
• Fit control unit (1) to support (4)
• Store connecting hose (2) on support (3).
NOTE: Release pressure form the hydraulic system
at the side of both tractor and machine.
After detaching the rotary tedder, stop
the engine. Remove the ignition key and
secure the tractor with wheel chocks.
Detach drive shaft (2) from the tractor p.t.o., slide
sections together and store the shaft on support (1).
KWT-0-019
2
1
3
a
4
KWT-0-020
2
1
Hydraulic system
PTO shaft
NOTE: •Store the rotory tedder on a level and solid
area only.
•When the tedder is folded toghether, the
transport running gear must be locked in
the transport postion.
