Service and maintenance
4.2 Hydraulics
KWT-0-024
1
2
1
KWT-0-034

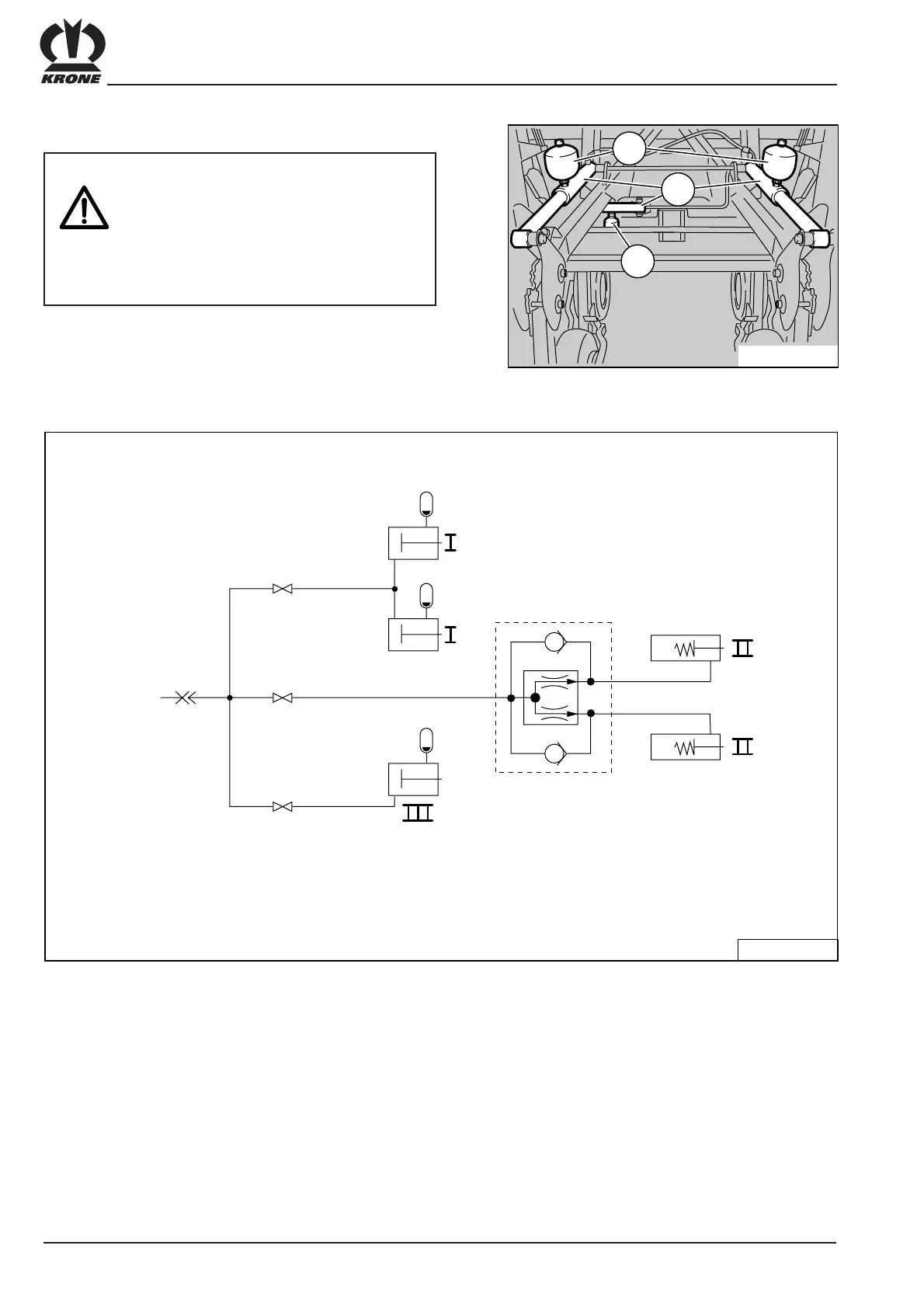

Hydraulic circuit diagram KWT 7.70/6x7; KWT 8.50 and KWT 10.50/8x7
I Undercarriage hydraulic cylinder
II Outer swather disc hydraulic cylinder
III Edge spreading mechanism hydraulic cylinder
• Work on the hydraulic system may
only be carried out by authorised
experts.
• Hydraulic accumulators are
pressurised. There is a danger of
injury when dismantling the
hydraulic cylinders!
The hydraulic cylinders (2) and accumulators (1)
are maintenance-free. The complete units have to
be replaced if there is a fault.
