8

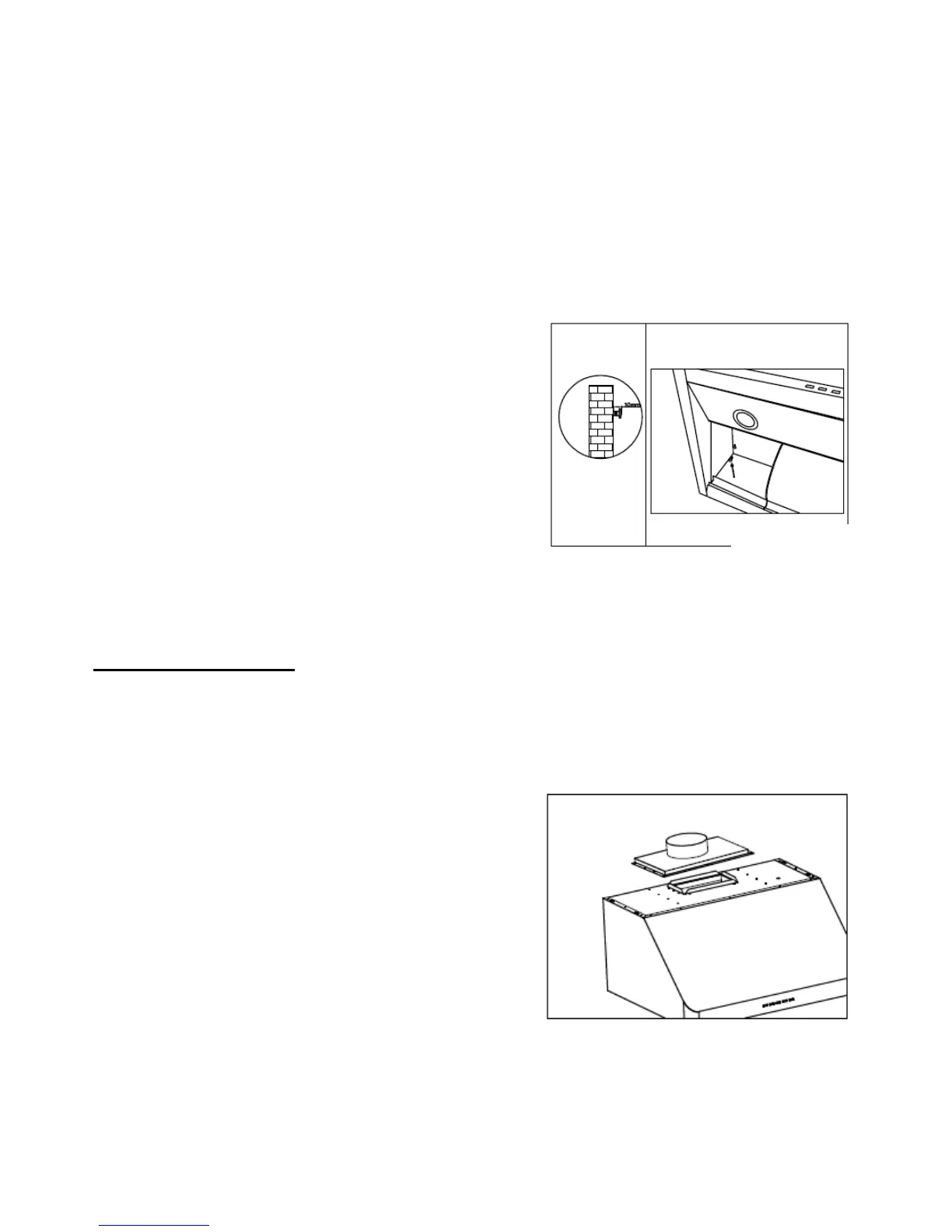

Equipment installation:
It is necessary to do turn on the range hood and do a test run, to make sure it is working normally.
Remove all protective film on the hood before installation.
1. By using the reference of Figure 1 and the measured values on page 14-15, mark four mounting holes and two
security holes on the mounting surface of the hood then drill. Firmly embed the expansion pipe (refer to figure 3).
2. Use a cross screwdriver to screw in 4 mounting screws.
Note: the distance between the wall and screw is 10mm (refer to
figure 4).
3. Hang the hood onto the installed screws with precise alignment to
the mounting hole of the hood.
4. Install the hood firmly onto the wall by tightening the four mounting
hole screws.
5. For safety, it is necessary to drill in screws in the two security
holes and make sure they are tightened.
Note: make sure the hood has been installed firmly before letting go.
Piping system installation:
IMPORTANT：TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
1. Attach the duct outlet to the range hood.
Figure 4
