- 43 -
4.
2.
B
A
1.
A
2.
1.
3.

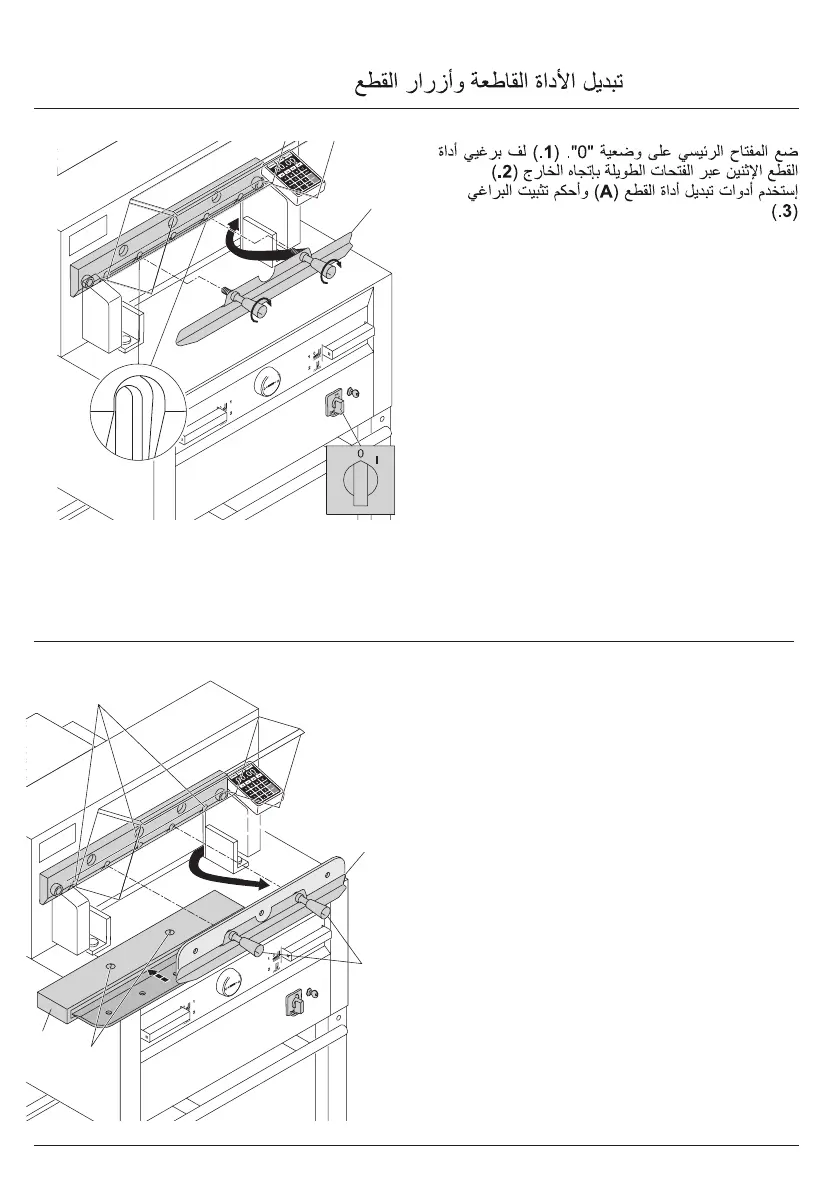

Positionthemainswitchto"0"(1.)
Removethe2bladescrewsonthe
elongated holes (2.). Then put the blade
changing tool (A) into place and fasten
it to the blade (3.).
Remove2bladescrews(1.) 4855 and 3 blade
screws(1.) 5255, 6655.
Loosen the grips (2.) of the blade changing
tool (A)lightlyandallowthebladetobetaken
downwardsoutofthemachine(3.). Place the
blade into the blade carrier (B)andscrewit
into place (4).
27.
4.
2.
B
A
1.
      
IDEAL 485
5
   
(1.) IDEAL 525
5, IDEAL 6655
(A)   
(2.)   
.(3.)    
(B)      
.(4. )    
(1.) 5255, 6655
Blade and cutting stick replacement
