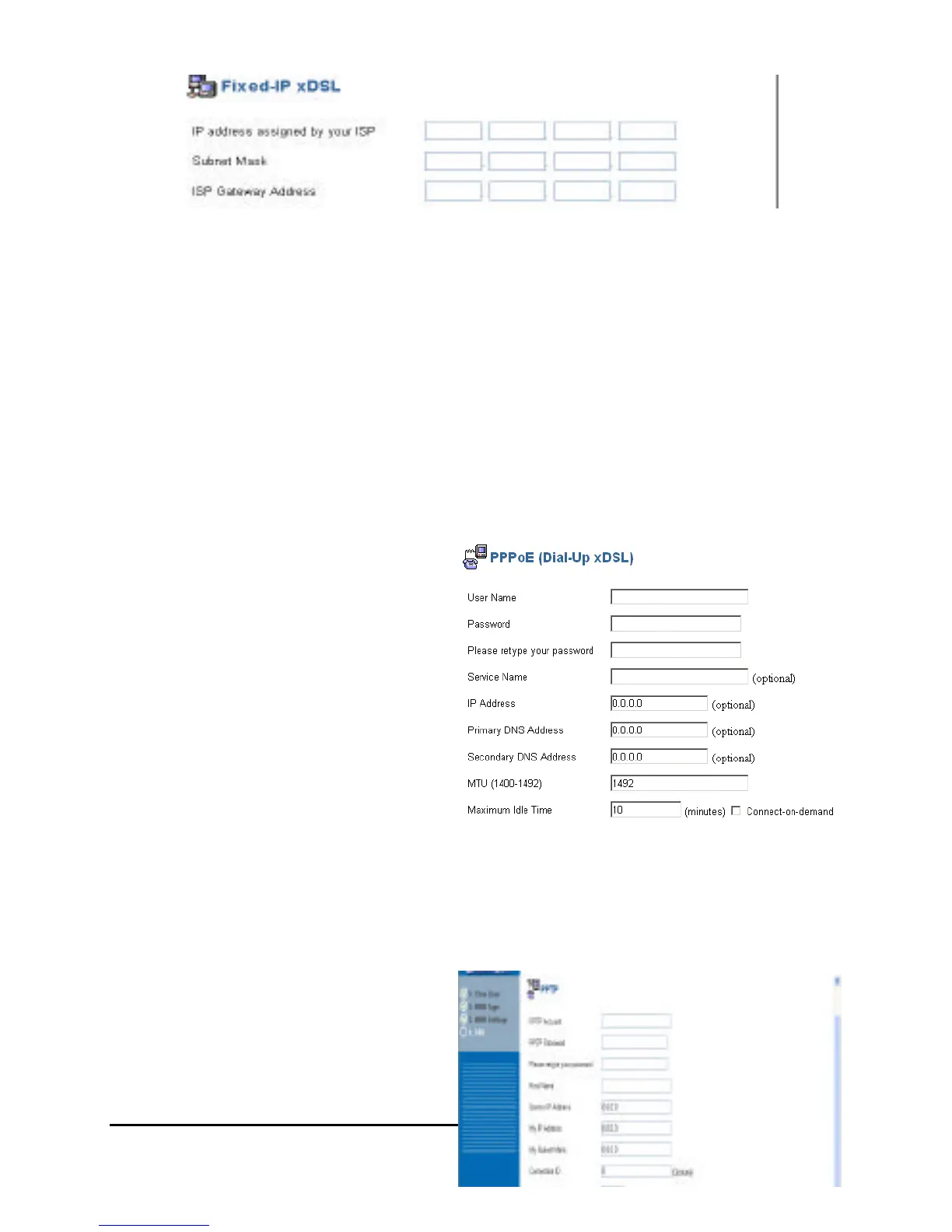

1-2-3 PPPoE (Dial-up xDSL)
If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the
ISP will provide a Password and User Name, then the ISP uses PPPoE.
Choose this option and enter the required information, if the ISP provided
a Service Name, enter it in the column of the Service Name field,
otherwise, leave it blank.
The dialog box in Service Name, IP Address and DNS Address must be
filled up when the ISP Provider provide these information to you, if the
ISP Provider provides Dynamic IP Address, then you can skip on these
dialog box.
The MTU feature specifies the
largest packet size permitted for
network transmission. Enter the
value desired, for most DSL
users, it is recommended to use
1492. By default, MTU is set at
1492.
The Maximum Idle Time feature
can control the connection time
while users need to save the
cost of connection fee from ISP
provider (default time=0, always connect). Click on the Connect-on-
demand button to dial up to the ISP when only on demand, while there is
a need of connecting to the ISP automatically.
1-2-4 PPTP
If connected to the Internet using
a (PPTP) xDSL Modem, enter
the PPTP Account Name, PPTP
Password, Host Name, Service
