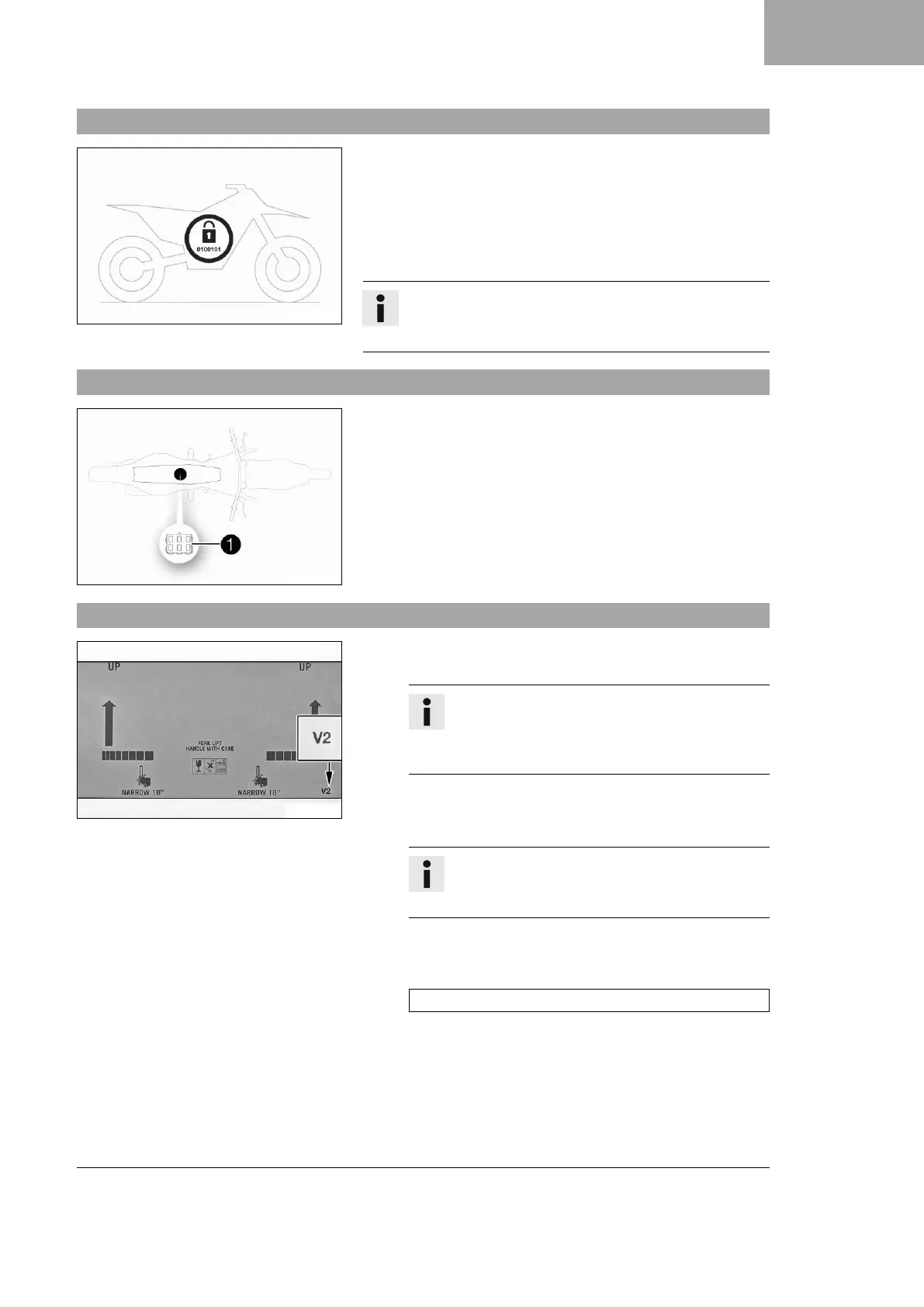

KTM 450 XC-F Setup Instructions

SETUP 2
3
2.1 Transport mode
H02712-01
This vehicle was blocked for transport in the software.
To operate the vehicle, the vehicle electronics must be enabled.
This process is conducted during initial setup in KTM Dealer.net.
Enabling ensures that the initial setup in KTM Dealer.net is docu-
mented.
Enabling can be performed either temporarily, e.g. for a test ride,
or permanently for vehicle handover.
Info
Make sure that the vehicle is permanently enabled before
handing it over to the customer.
2.2 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat.
2.3 Unpacking and setting up the vehicle
E00851-10
Package 2
– Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup,
leave the protective film on the vehicle until you
have finished.
– Remove the separate enclosure and unpack it. Check
that the scope of supply is complete on the basis of the
enclosed packing list.
Info
The procedure in the event of missing components
is described in the customer service manual.
– Remove the cable ties on the rear wheel, take off the front
wheel and the fender.
– Have a lift stand available.
Lift stand (78129955100)
– Carefully loosen and remove the tension belt of the footrest
mount.

KTM 450 XC-F Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, throttle body 44 mm
Cooling	Liquid cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	260 mm disc
Rear Brake	220 mm disc
Ground Clearance	370 mm
Seat Height	950 mm
Compression Ratio	12.75:1
Ignition	Keihin EMS
Final Drive	Chain
Rear Brake Caliper	Brembo
Fuel Tank Capacity	8.5 liters
Front Brake Caliper	Brembo twin-piston floating caliper
