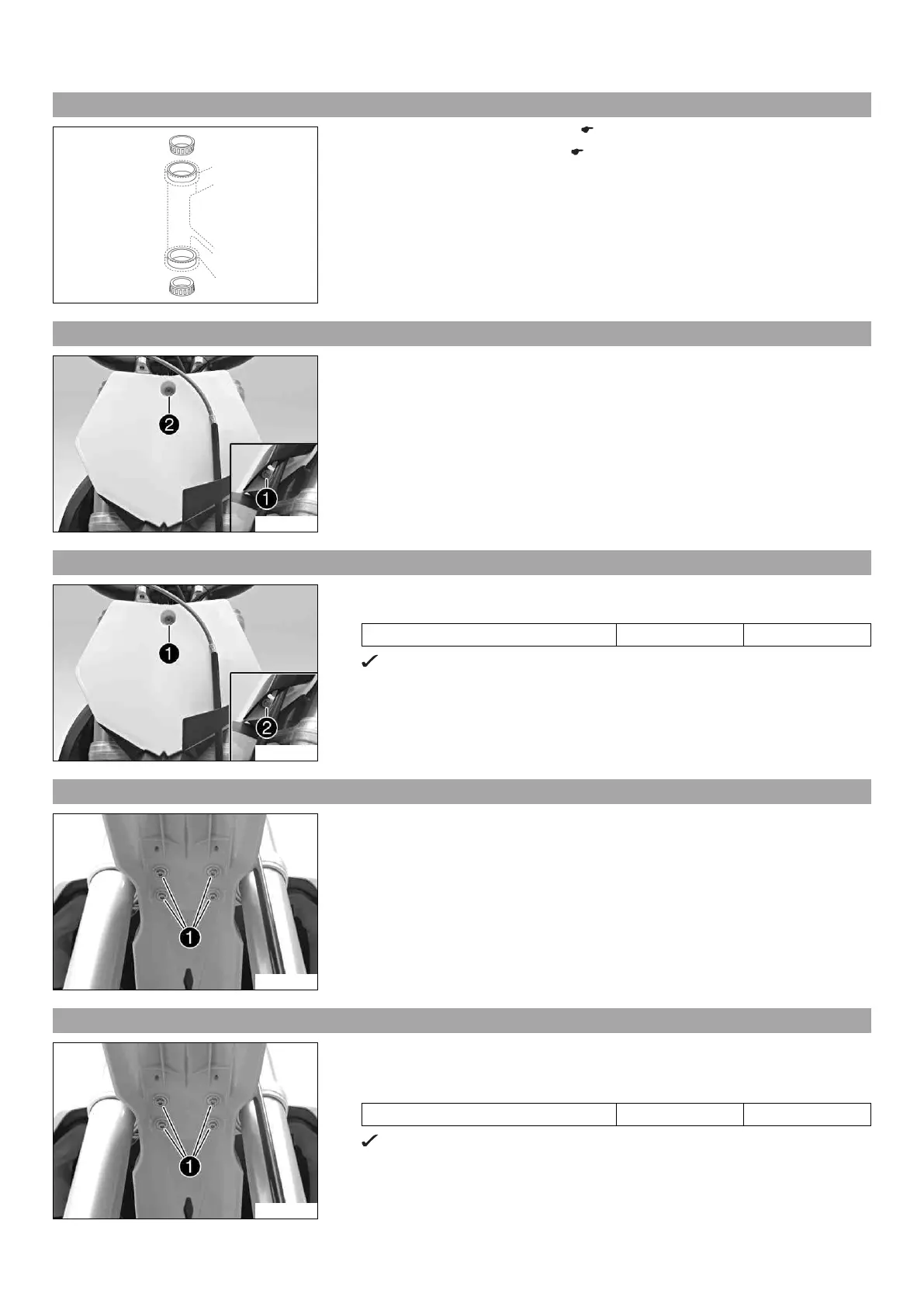

11 SERVICE WORK ON THE CHASSIS 39
11.13 Greasing the steering head bearing x
800010-10
–
Remove the lower triple clamp. x ( p. 35)
–
Install the lower triple clamp. x ( p. 36)
11.14 Removing the start number plate
L00049-11
– Remove screw 1 and take off the clamp.
– Remove screw 2. Take off the start number plate.
11.15 Installing the start number plate
L00049-10
– Position the start number plate. Mount and tighten screw 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
The holding lugs engage.
– Position the brake line and clamp. Mount and tighten screw 2.
11.16 Removing the front fender
L00040-10
– Remove screws 1. Remove the front fender.
11.17 Installing the front fender
L00040-10
– Ensure that the spacers are mounted in the fender.
– Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
The holding lugs engage.
