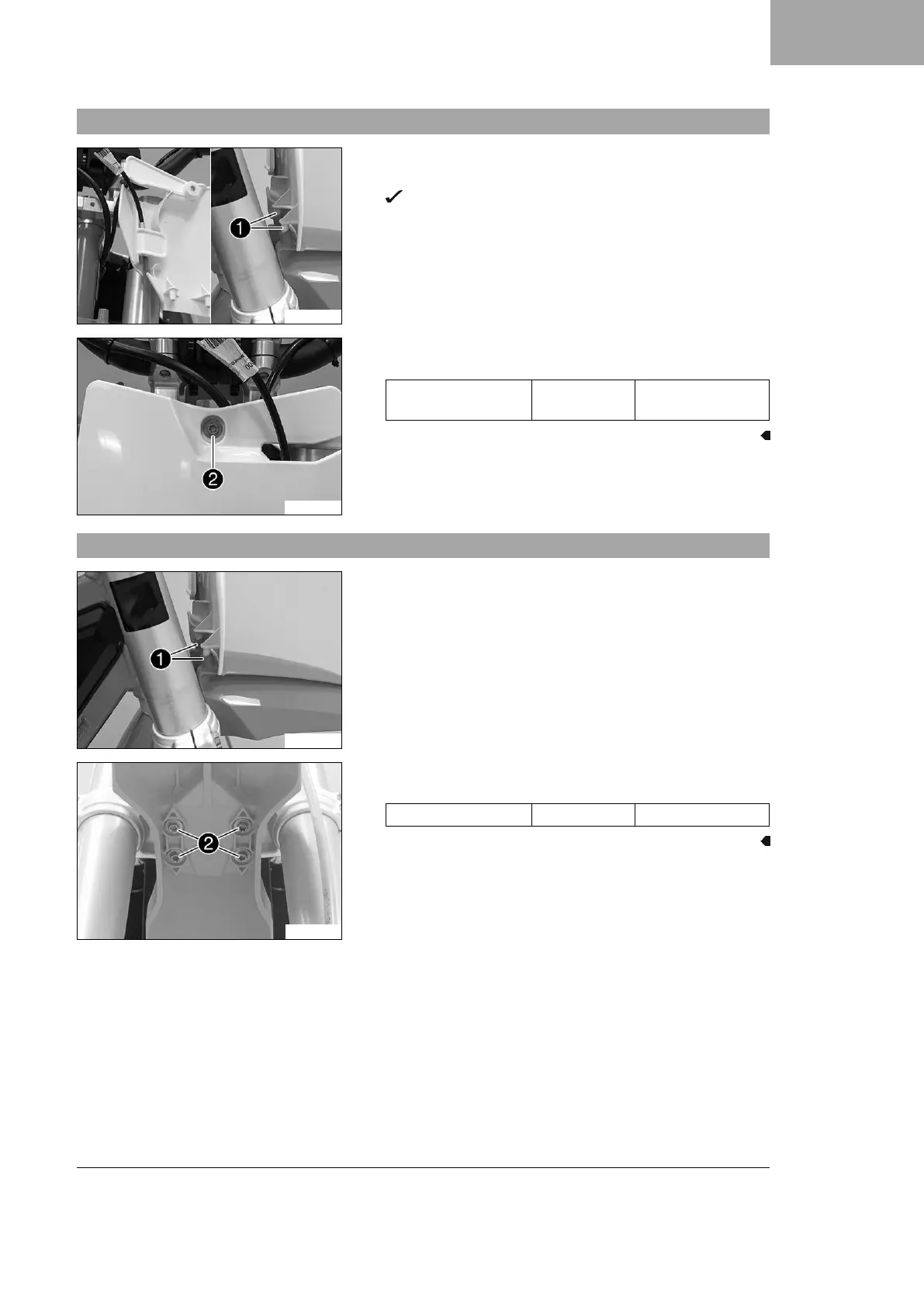

3.3 Installing the start number plate
M01682-10
– Attach the start number plate to the brake line.
– Position the start number plate.
Holding lugs
1
engage in the fender.
M01683-10
–
Mount and tighten screw
2
.
Guideline
Screw, start number
plate
M6 4 Nm (3 lbf ft)
3.4 Installing front fender
M01671-10
–
Position the fender with drill holes
1
in the holding lugs on
the start number plate.
H01428-11
–
Position front fender. Mount and tighten screws
2
.
Guideline
Screw, fender M6 6 Nm (4.4 lbf ft)
