STEP 3.

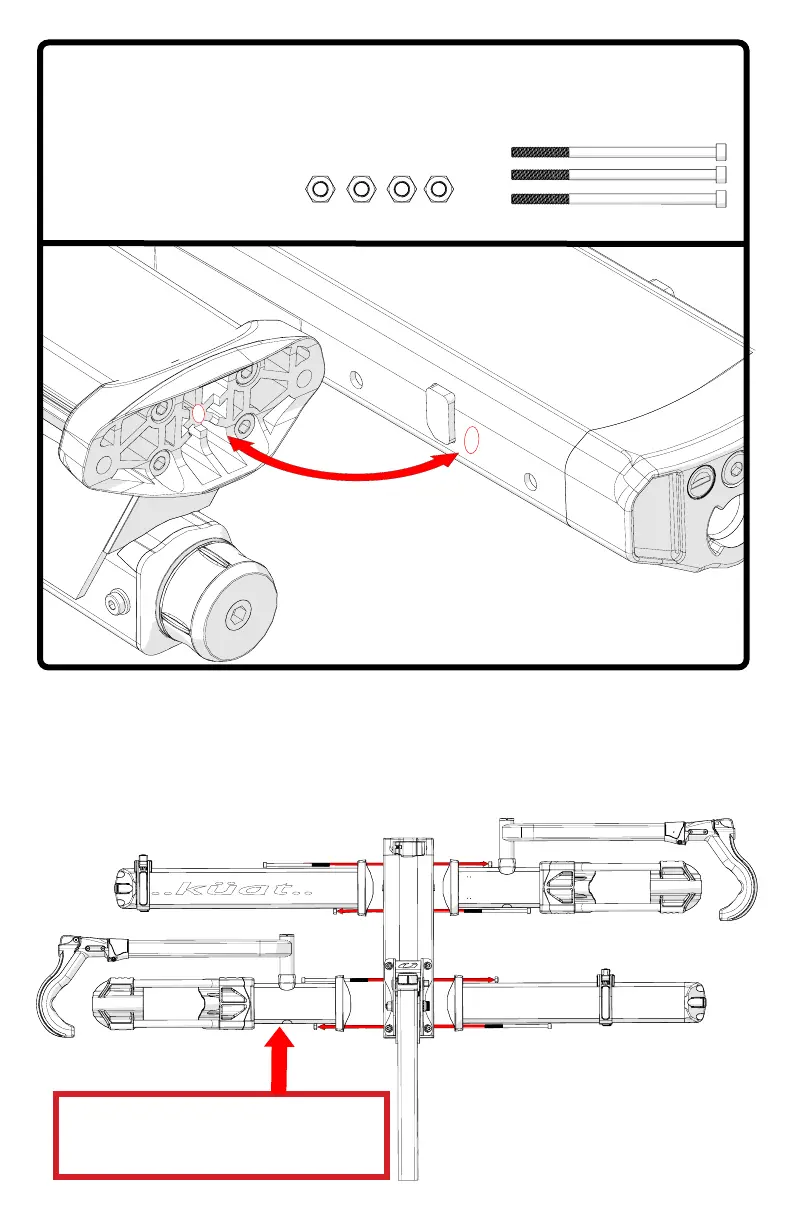

Align the trays with the holes on the center
beam by matching the coordinating labels. Then al-
ternate between bolts to tighten.
3x M8x160 Bolts4x M8 Nuts
Parts Needed
A
A
NOTE: The trays with the “..Küat..” logo will be
farthest from the hitch. Performing this step with the
rack upside down will ease assembly.
NOTE:
This tray has the
M8x160 bolt pre-installed.
NOTE: Bolts alternate directions.
