AP-SC4060 & AP-SC4072 Skid Steer Rotary Cutters 326-765MK12/14/18
15
Nominal Cutting Height (SVL shown)

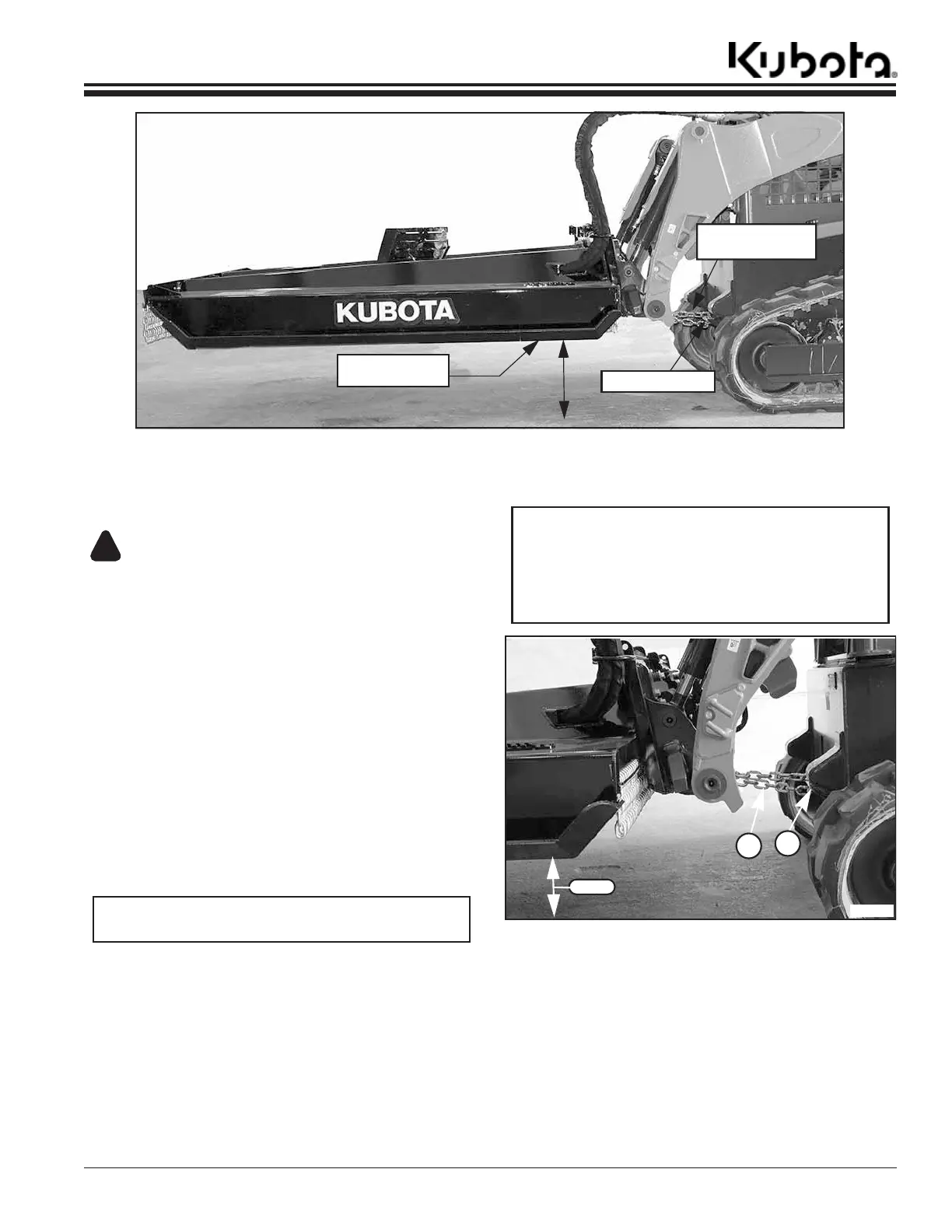

Figure 2-1
Lower Hitch Loop
Ground Level
Bottom of Rear
Skid Shoes
70033
Height Adjustment
Safety Chain
16.5"
Height Adjustment Safety Chain
DANGER
!
To avoid serious injury or death:
• Do not operate cutter with skid shoes higher than 16 1/2"
off the ground. Always use height adjusting safety chain to
limit cutting height. Raising cutter too high will throw
debris at the operator.
• Do not tilt hitch plate to raise front of cutter higher than the
rear. Raising front of cutter can cause serious bodily injury
and/or death.
• Always secure equipment with solid, non-concrete supports
before working under it. Never go under equipment
supported by concrete blocks or hydraulics. Concrete can
break, hydraulic lines can burst, and/or hydraulic controls
can be actuated even when power to hydraulics is off.
Refer to Figure 2-1:
For safety, the cutter skid shoes should not be raised
higher than 16 1/2" off the ground (18" maximum cutting
height).
1. Raise cutter’s rear skid shoes slightly less than
16 1/2" off the ground. Secure the cutter with support
blocks.
2. Run height adjustment safety chain under the
upper cross tube and skid steer hitch plate to the skid
steer lower hitch loop. Thread chain through the hitch
loop and back toward the hitch plate. Connect quick
link coupler to a chain loop as shown in Figure 2-2.
NOTE: Two people may be required to install and
adjust the height adjustment safety chain.
SC40 Height Adjustment (SVL Shown)
Figure 2-2
3. Raise cutter up until the safety chain is tight. Check
height of rear skid shoes.
4. If rear skid shoes are more than 16 1/2" above
ground level, lower cutter and make necessary
adjustments to the safety chain to limit rear skid shoe
height to 16 1/2" maximum.
5. Tighten quick link coupler nut to secure safety chain.
NOTE: When attaching the Rotary Cutter to a
Kubota SVL machine, height adjustment safety
chain (#2) should be looped around SVL
tie-down bar (#1) and adjusted so that the cutter
cannot be raised over 16.5" off the ground as shown
in Figure 2-2 below.
70032
1
2
16.5"
Section 2: Adjustments
