3
TRANSMISSION

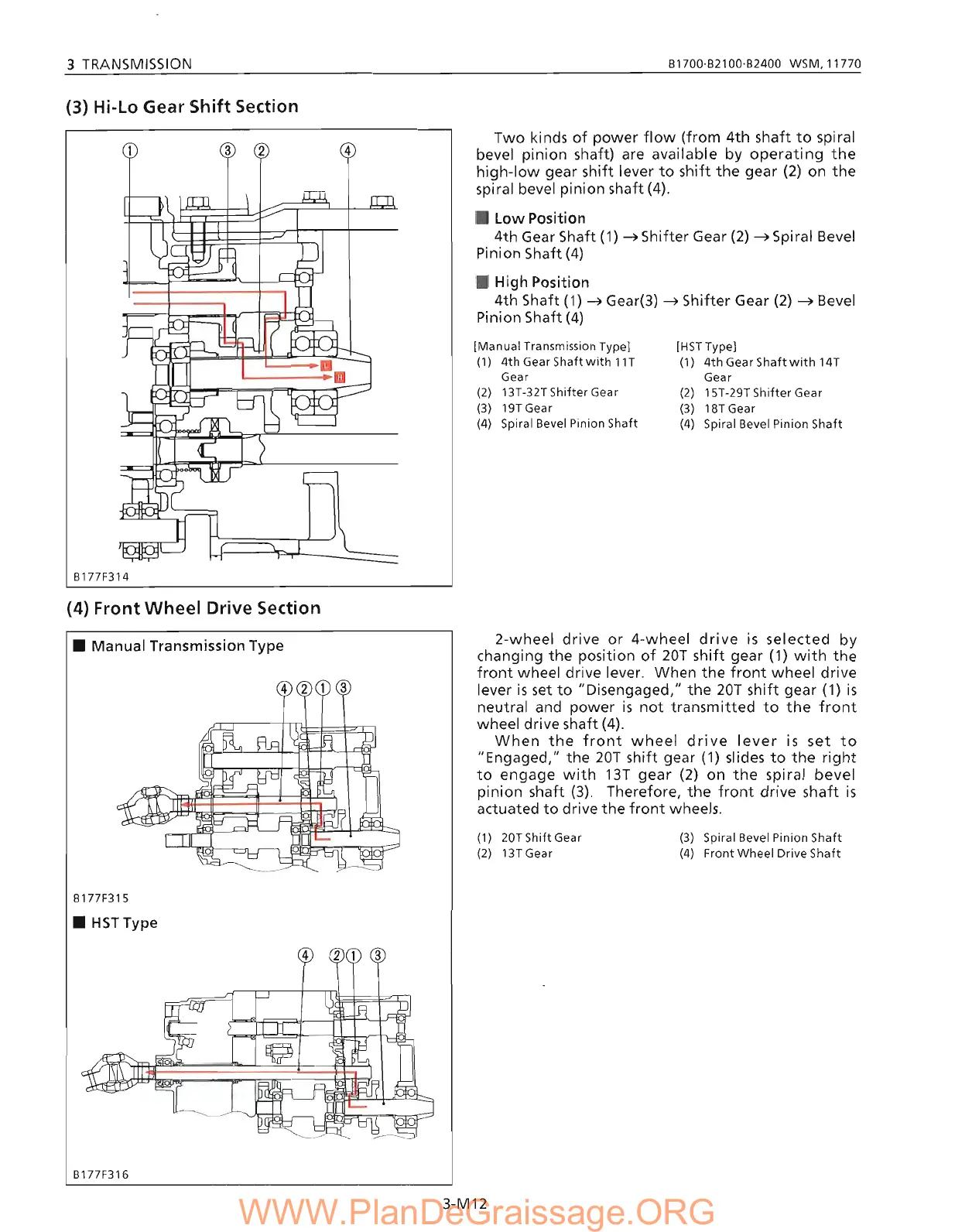

(3) Hi-Lo Gear Shift Section
B1700·B2100·B2400 WSM, 11770
Two kinds
of
power
flow
(from 4th shaft
to
spiral
bevel pinion shaft) are available by
operating
the
high-low
gear shift lever
to
shift
the
gear (2) on
the
spiral bevel pinion shaft
(4)
.
•
Low
Position
4th Gear Shaft
(1)
~
Shifter Gear
(2)
~
Spiral Bevel
Pinion Shaft
(4)
• High Position
4th Shaft (1)
~
Gear(3)
~
Shifter Gear
(2)
~
Bevel
Pinion Shaft
(4)
2-wheel
drive
or
4-wheel
drive
is
selected
by
changing
the
position
of
20T
shift
gear (1)
with
the
front
wheel drive lever. When
the
front
wheel drive
lever
is
set
to
"Disengaged,"
the
20T
shift
gear (1)
is
neutral and power
is
not
transmitted
to
the
front
wheel drive shaft (4).
When
the
front
wheel
drive
lever
is
set
to
"Engaged," the
20T
shift gear
(1)
slides
to
the
right
to
engage
with
13T
gear
(2) on
the
spiral
bevel
pinion
shaft (3). Therefore,
the
front
drive shaft
is
actuated
to
drive
the
front
wheels.
B177F314
(4) Front
Wheel
Drive Section
• Manual Transmission Type
Bl77F315
• HSTType
B177F316
[Manual
Transmission Type]
(1)
4th
Gear Shaft
with
11T
Gear
(2) 13T-32T Shifter Gear
(3) 19T Gear
(4) Spiral Bevel Pinion Shaft
(1)
20T Shift Gear
(2)
13T Gear
3-M12
[HST
Type]
(1)
4th
Gear Shaft
with
14T
Gear
(2) 15T-29T Shifter Gear
(3)
18TGear
(4) Spiral Bevel Pinion Shaft
(3)
Spiral Bevel Pinion
Shaft
(4)
Front Wheel Drive Shaft
To Next Page
