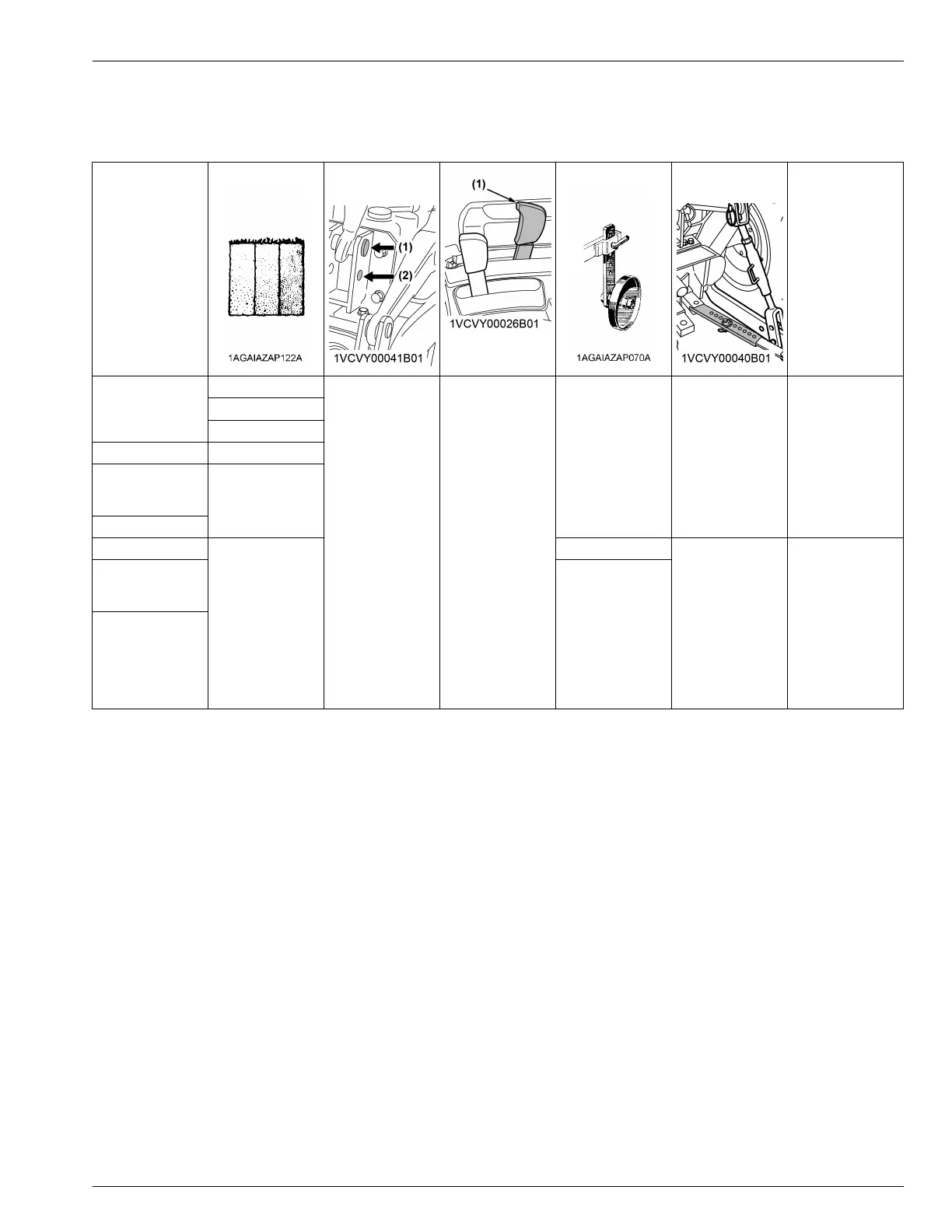

4. Hydraulic control unit use reference chart
In order to handle the hydraulics properly, the operator must be familiar with the following. Though this information
may not be applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
Soil condition
Top link mounting
holes
(1) position control
lever
Gauge wheel
Telescopic stabil-
izers
Remarks
Moldboard plow
Light soil
Hole 1
*Hole 2 is used only
when there is some
obstacle that pre-
vents you from us-
ing the hole1.
Position control
Yes/no Loose
Insert the set-pin
through the slot on
the outer tube that
align with one of the
holes on the inner
bar.
For implements with
gauge wheels, low-
er the implements
to the ground.
Medium soil
Heavy soil
Disc plow
Harrower (spike,
springtooth, disc
type)
Sub-soiler
Weeder, ridger
Yes
Tighten
Telescopic stabilizer
should be tight
enough to prevent
excessive imple-
ment movement
when implement is
in raised position.
For implements with
gauge wheels, low-
er the implements
to the ground.
Earthmover, digger,
scraper, manure
fork, rear carrier
Yes/no
Mower (mid-and
rear-mount type),
hayrake, tedder
DUAL REMOTE HYDRAULIC CONTROL SYSTEM [B2401DT ONLY]  HYDRAULIC UNIT
B2401DT, B2401DTWO, B2401DTN
49
